| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

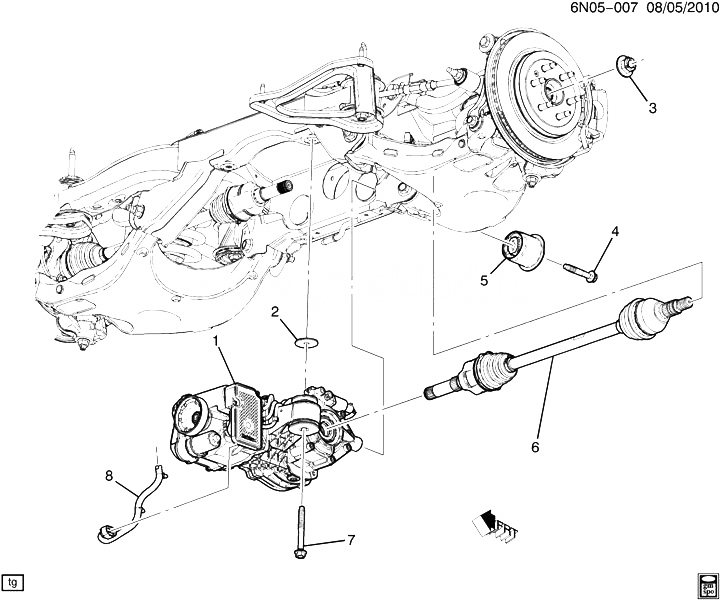

| 001 |
22824224 |
CARRIER, DIFF (CODE 0101) (SEE GROUP 05.000 DIFFERENTIAL CARRIER FOR DETAILED ILLUSTRATED VIEW) (FOR VEH W/O INBOARD SLINGERS ORDER T/W SEAL 20986535 (QTY 2)) |
N (LF1, F46) |
2011-2011 |
01 |
| 001 |
22824224 |
CARRIER, DIFF (CODE 6533, 7827) (SEE GROUP 05.000 DIFFERENTIAL CARRIER FOR DETAILED ILLUSTRATED VIEW) (FOR VEH W/O INBOARD SLINGERS ORDER T/W SEAL 20986535 (QTY 2)) |
N (LF1, F46) |
2011-2011 |
01 |
| 001 |
22931259 |
CARRIER, DIFF (CODE 0100, 7826, 6532) (SEE GROUP 05.000 DIFFERENTIAL CARRIER FOR DETAILED ILLUSTRATED VIEW) (FOR VEH W/O INBOARD AXLE SHF SLINGERS W/ BLK AXLE SHF SEALS ORDER T/W 20986535 (QTY 2) |
N (LAU, F46) |
2011-2011 |
01 |
| 002 |
11610962 |
SPACER, DIFF CARR |
N (F46) |
2010-2013 |
02 |
| 003 |
13217120 |
NUT, RR WHL DRV UJT SHF (M24X1.5X22, 32THD) (22 THK) (6.056) |
N (F46) |
2010-2013 |
02 |
| 004 |
11589279 |
BOLT, DIFF CARR RR (M12X1.75X85.9) (8.900) |
N (F46) |
2010-2013 |
01 |
| 005 |
15904586 |
BUSHING, DIFF CARR (RR) |
N (F46) |
2010-2013 |
02 |
| 006 |
22824227 |
SHAFT, RR WHL DRV (SEE GROUP 05.000 AXLE SHAFT/REAR FOR DETAILED ILLUSTRATED VIEW) (FOR VEH W/O INBOARD SLINGERS ORDER T/W SEAL 20986535 (QTY 1)) |
N (F46) |
2010-2011 |
01 |
| 006 |
22824228 |
SHAFT, RR WHL DRV (SEE GROUP 05.000 AXLE SHAFT/REAR FOR DETAILED ILLUSTRATED VIEW) (FOR VEH W/O INBOARD SLINGERS ORDER T/W SEAL 20986535 (QTY 1)) |
N (F46) |
2010-2011 |
01 |
| 007 |
11589282 |
BOLT, DIFF CARR FRT (M12X1.75X115.9) (0.029) |
N |
2010-2013 |
02 |
| 008 |
|
HARNESS, CHAS RR WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
