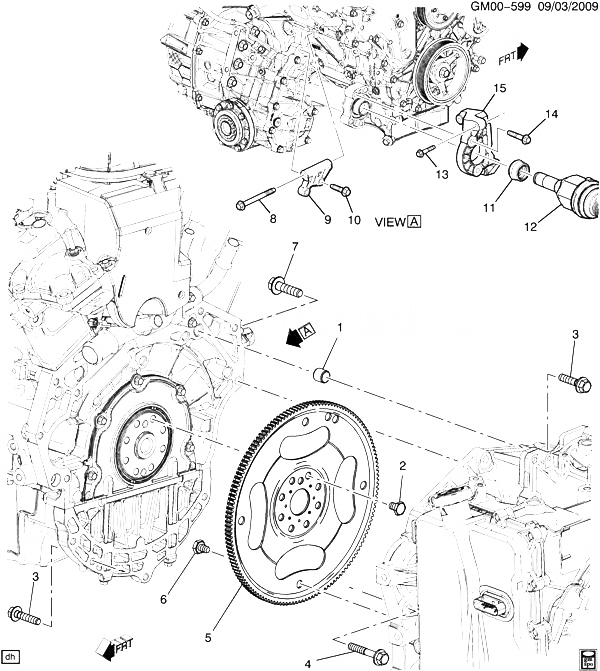

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12597210 |
PIN, TRANS LOC |
N |
2011-2011 |
02 |
| 002 |
11518862 |
BOLT, HEX, W/ADH, M10X1X15.5, 10.9, HDR-PT (A/TRNS FLEX PLT) |
|
2010-2011 |
08 |
| 003 |
11515769 |
BOLT, HFH, M10X1.5X45, 25THD, 22.3OD, 10.9, 7114M, MACH RAISED SHOULDER (TRANSAXLE) |
|
2010-2011 |
06 |
| 004 |
11518631 |
BOLT, HFH, M10X1.5X65, 26 THD, 22.3 OD, 10.9 STL, GMW3359 (TRANSAXLE) |
|
2010-2011 |
01 |
| 005 |
12597026 |
PLATE, A/TRNS FLEX |
N (LF1) |
2010-2011 |
01 |
| 006 |
11588468 |
BOLT, TRANSAXLE T/CV (M10X1.5X15) |
N |
2011-2011 |
04 |
| 007 |
11515778 |
BOLT, HFH, M12X1.75X45, 40 THD, 26.6 OD, 10.9, 7114M, P-POINT. (TRANSAXLE) |
|
2010-2011 |
01 |
| 008 |
11588755 |
BOLT, HFH, M10X1.5X115, 26 THD, 22.3 OD, 10.9, GMW3359 (TRANSAXLE BR) |
|
2010-2011 |
01 |
| 009 |
12610059 |
BRACE, TRANSAXLE |
N (MH4) |
2011-2011 |
01 |
| 010 |
11588742 |
BOLT, HFH, M10X1.5X50, 26 THD, 22.3 OD, 10.9 STL, GMW3359, M-PT (TRANS BR) |
|
2010-2011 |
AR |
| 011 |
|
SEAL, TRFER CASE |
(MH4) |
2010-2011 |
|
| 011 |
12789088 |
SEAL, TRFER CASE (6.061) (BTW TRFER CASE RIGHT AXLE SHAFT) |
N (F46) |
2010-2011 |
01 |
| 012 |
|
SHAFT, FRT WHL DRV (SEE GROUP 06.000 DRIVE SHAFT/FRONT WHEEL FOR DETAILED ILLUSTRATED VIEW.) |
|
2010-2011 |
|
| 013 |
11519171 |
BOLT, TRFER CASE BRKT (M8X1.25X50) (3.275) |
N |
2010-2011 |
02 |
| 014 |
11518630 |
BOLT, HFH, M10X1.5X60, 26 THD, 22.3 OD, 10.9, GMW3359, MAT POINT (TRFER CASE RR) |
|
2010-2011 |
02 |
| 015 |
55560070 |
BRACKET, TRFER CASE |
N |
2010-2011 |
01 |
