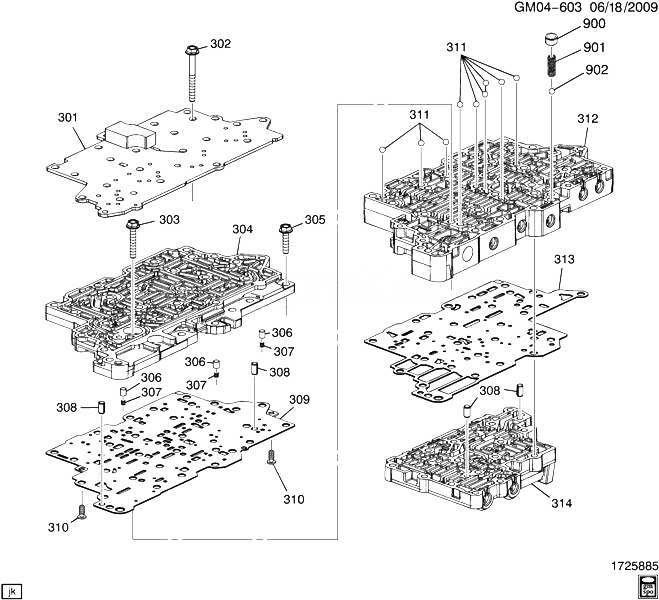

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 301 |
24245282 |
PLATE, C/VLV CHAN UPR (*KIT1) (ACDelco #24245282) |
N |
2011-2011 |
01 |
| 302 |
24207861 |
BOLT, VLV BODY (M6X1X65) (ACDelco #24207861) |
N (MH2, MH4) |
2010-2012 |
05 |
| 303 |
11515262 |
BOLT, HFH, M6X1X55, 18THD, 14.2 O.D., 9.8, PC (VLV BODY) |
|
2010-2013 |
03 |
| 304 |
24243705 |
PLATE, C/VLV CHAN (INCLS 306, 307, 309, 310) (ACDelco #24243705) |
N (MH2, MH4) |
2010-2012 |
01 |
| 305 |
08680873 |
BOLT, VLV BODY (M6X1.0X35.0) (ACDelco #8680873) |
N (MH2, MH4) |
2010-2012 |
03 |
| 306 |
24240102 |
PISTON, ACTR FEED ACCUM (PART OF 304) (INCLS 307) (ACDelco #24240102) |
N (MH2, MH4) |
2010-2012 |
01 |
| 307 |
|
SPRING, ACTR FEED ACCUM (PART OF 304, 306) |
|
2010-2012 |
|
| 308 |
24227105 |
PIN, C/VLV BODY LOC (PART OF 312, 314) (VLV BODY) (4.262) |
N (MH2, MH4) |
2010-2012 |
03 |
| 309 |
24243704 |
PLATE, C/VLV UPR BODY SPCR (PART OF 304) (*KIT1) (ACDelco #24243704) |
N (MH2, MH4) |
2010-2012 |
01 |
| 310 |
24205245 |
RETAINER, C/VLV BODY SPCR PLT (PART OF 304) (*KIT1) (ACDelco #24205245) |
N (MH2, MH4) |
2010-2012 |
02 |
| 311 |
00104918 |
BALL, 1/4 DIA, CHROME STL (PART OF 312) (ACDelco #104918) |
|
2010-2013 |
09 |
| 312 |
|
BODY, C/VLV UPR (INCLS 308, 311, 900, 901, 902) (SEE GROUP 04.000 UPPER VALVE BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 313 |
24254138 |
PLATE, C/VLV LWR BODY SPCR (*KIT1) (ACDelco #24254138) |
N |
2011-2012 |
01 |
| 314 |
|
BODY, C/VLV LWR (INCLS 308) (SEE GROUP 04.000 LOWER VALVE BODY FOR DETAILED ILLUSTRATED VIEW) (REMANUFACTURED-NOT FOR SALE WHERE IMPORTS ARE RESTRICTED) |
|
2010-2013 |
|
| 900 |
|
PLUG, TCC BLOWOFF BALL VLV BORE (PART OF 312) |
|
2010-2012 |
|
| 901 |
|
SPRING, TCC BLOWOFF BALL VLV (PART OF 312) |
|
2010-2012 |
|
| 902 |
00104918 |
BALL, 1/4 DIA, CHROME STL (PART OF 312) (ACDelco #104918) |
|
2010-2013 |
01 |
| K01 |
24256111 |
BODY KIT, C/VLV (INCLS 301, 309, 310, 313) (VB KIT) (ACDelco #24256111) |
N (MH2, MH4) |
2011-2011 |
01 |
