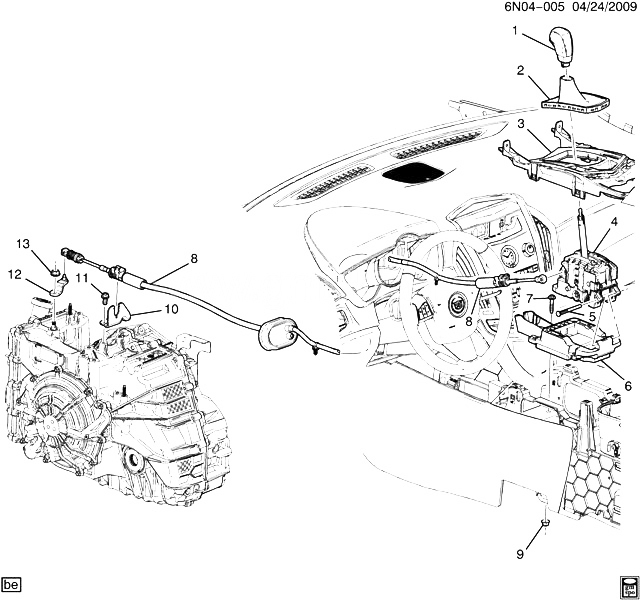

(6N04-005) 2010-2012 N МЕХАНИЗМ УПРАВЛЕНИЯ ПЕРЕКЛЮЧЕНИЕМ ПЕРЕДАЧ/МЕХАНИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MH2,MH4) CADILLAC - SRX 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20865677 KNOB, A/TRNS CONT LVR (INCLS 2) (BLACK) N (MH2, MH4, ML3, MXE, 4AA, 4AJ, 4A5, 5AD) 2010-2011 01
001 20865678 KNOB, A/TRNS CONT LVR (INCLS 2) (BLACK) N (MH2, MH4, ML3, MXE, 4AJ, 4A5, 4AA) (EXC 5AD) 2010-2011 01
001 20865680 KNOB, A/TRNS CONT LVR (INCLS 2) (GRAY) N (MH2, MH4, ML3, MXE, 4AF) (EXC 5AD) 2010-2012 01
001 20865679 KNOB, A/TRNS CONT LVR (INCLS 2) (BROWNSTONE) N (MH2, MH4, ML3, MXE, 4AF, 5AD) 2010-2011 01
002 BOOT, A/TRNS CONT (PART OF 1) 2010-2012
003 20945235 PLATE, F/FLR CNSL TR (SEE GROUP 10.000 FLOOR CONSOLE FOR DETAILED ILLUSTRATED VIEW) (TITANIUM) N (MH2, MH4, MXE, 4AJ) 2010-2011 01
003 20945234 PLATE, F/FLR CNSL TR (SEE GROUP 10.000 FLOOR CONSOLE FOR DETAILED ILLUSTRATED VIEW) (BLACK) N (MH2, MH4, MXE, 4AA) 2010-2011 01
003 20945236 PLATE, F/FLR CNSL TR (SEE GROUP 10.000 FLOOR CONSOLE FOR DETAILED ILLUSTRATED VIEW) (SHALE) N (MH2, MH4, 4AF, 4A5) 2010-2012 01
004 20951251 CONTROL, A/TRNS (INCLS 5, 6) N (LAU) 2011-2011 01
004 20951251 CONTROL, A/TRNS (INCLS 5, 6) (4.004) N (LAU) 2011-2011 01
004 20951250 CONTROL, A/TRNS (INCLS 5, 6) NG (LF1, MH2, MH4, LHD, UD5) (EXC ULD, UWG) 2011-2011 01
004 20951250 CONTROL, A/TRNS (INCLS 5, 6) (4.004) NG (LF1, MH2, MH4, LHD, UD5) (EXC ULD, UWG) 2011-2011 01
004 20951250 CONTROL, A/TRNS (INCLS 5, 6) (4.004) NG (MH2, MH4, LHD) 2010-2011 01
005 PIN, A/TRNS CONT BRKT (PART OF 4) 2010-2012
006 BRACKET, A/TRNS CONT (PART OF 4) 2010-2012
007 11589044 BOLT, HEX-HD, W/ WA, M6X1.0X43.0, 8.8, GMW3359 (A/TRNS CONT) 2010-2013 04
008 20999986 CABLE, A/TRNS RANGE SEL LVR N (MH2, MH4) 2010-2012 01
009 11516075 NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (A/TRNS CONT) 2010-2013 04
010 25775178 BRACKET, A/TRNS RANGE SEL LVR CBL N (MH2, MH4) 2010-2012 01
011 15614709 BOLT, W/CON SPR WA, M8X1.25X20, 15.58THD, 18 O.D., 9.8, ZO (A/TRNS RANGE SEL LVR STOP PLT) (1.270) (ACDelco #15614709) 2010-2013 02
012 20882083 LEVER, A/TRNS RANGE SEL N (MH2, MH4) 2011-2012 01
013 11514597 NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (A/TRNS RANGE SEL LVR) (2.383) 2010-2013 01
