| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

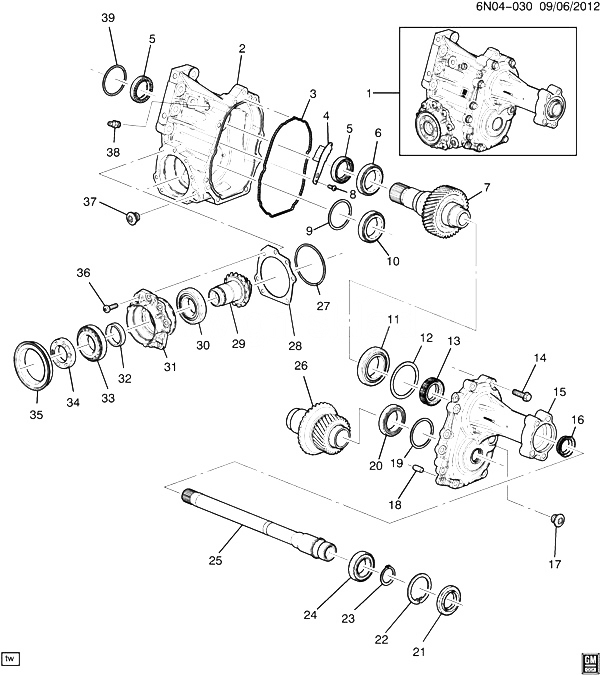

| 001 |
55574304 |
CASE, TRFER (W/GEARS) (INCLS 2-39) (WHEN REPLACING TRANSFER CASE 55573147 WITH 55574304 MUST REPLACE VENT ASM W/ 55571898) |
N (LF1, MH4, F46) |
2011-2011 |
01 |
| 002 |
|
CASE, TRFER (MCHG) (PART OF 1) |
|
2011-2011 |
|
| 003 |
55574658 |
SEAL, TRFER CASE RR EXTN (O RING) (PART OF 1) (USED ON T-CASE STAMPED 55574304 ON BOTTOM.) |
N |
2010-2013 |
01 |
| 004 |
|
BAFFLE, TRFER CASE VENT (PART OF 1) |
|
2011-2011 |
|
| 005 |
55571454 |
SEAL, TRFER CASE INPUT SHF BRG RET FRT (PART OF 1) |
N |
2011-2013 |
02 |
| 006 |
|
BEARING, TRFER CASE INPUT SHF (PART OF 1) |
|
2011-2011 |
|
| 007 |
|
SHAFT, TRFER CASE INPUT (PART OF 1) |
|
2011-2011 |
|
| 008 |
|
BOLT, TRFER CASE VENT BFL (PART OF 1) |
|
2011-2011 |
|
| 009 |
|
SHIM, TRFER CASE IDLER GR BRG (PART OF 1) |
|
2011-2011 |
|
| 010 |
|
BEARING, TRFER CASE IDLER GR (PART OF 1) |
|
2011-2011 |
|
| 011 |
|
BEARING, TRFER CASE INPUT SHF (PART OF 1) |
|
2011-2011 |
|
| 012 |
|
SHIM, TRFER CASE INPUT SHF BRG (PART OF 1) |
|
2011-2011 |
|
| 013 |
55573644 |
SEAL, TRFER CASE INPUT SHF BRG RET RR (PART OF 1) |
N |
2011-2013 |
01 |
| 014 |
55571448 |
BOLT, TRFER CASE RR EXTN (PART OF 1) |
N |
2011-2013 |
10 |
| 015 |
|
EXTENSION, TRFER CASE RR (PART OF 1) |
|
2011-2011 |
|
| 016 |
55573640 |
SEAL, FRT WHL DRV INTER SHF (PART OF 1) (FOR TRANSFER CASE INPUT INTERMEDIATE SHAFT) |
N (MH4) |
2011-2012 |
01 |
| 017 |
55573646 |
PLUG, TRFER CASE FILL (PART OF 1) (M20X1.5X16, 29 OD) (SQ HD W/WASHER, W/MAGNET) (ZINC COATED) |
N |
2011-2013 |
01 |
| 018 |
55571462 |
PIN, TRFER CASE RR EXTN LOC (PART OF 1) |
N |
2011-2013 |
02 |
| 019 |
|
SHIM, TRFER CASE IDLER GR BRG (PART OF 1) |
|
2011-2011 |
|
| 020 |
|
BEARING, TRFER CASE IDLER GR (PART OF 1) |
|
2011-2011 |
|
| 021 |
55573643 |
DEFLECTOR, FRT WHL DRV INTER SHF DIRT (PART OF 1) (USED ON VEH W/ T-CASE STAMPED 55574304) (FOR 1ST DES SEE 55566356) |
N (MH4) |
2010-2011 |
01 |
| 022 |
55571449 |
RING, FRT WHL DRV INTER SHF RET (PART OF 1) |
N (MH4) |
2011-2012 |
01 |
| 023 |
55574648 |
RING, FRT WHL DRV INTER SHF BRG RET (PART OF 1) |
N (MH4) |
2011-2012 |
01 |
| 024 |
55573639 |
BEARING, FRT WHL DRV INTER SHF (PART OF 1) (FOR TRANSFER CASE INPUT INTERMEDIATE SHAFT) |
N (MXE, MH4) |
2011-2011 |
01 |
| 025 |
55573642 |
SHAFT, FRT WHL DRV INTER (PART OF 1) |
N (MH4) |
2011-2011 |
01 |
| 026 |
|
SHAFT, TRFER CASE IDLER GR (PART OF 1) |
|
2011-2011 |
|
| 027 |
|
SEAL, TRFER CASE RR OUTPUT DRV SHF HSG (O RING) (PART OF 1) |
|
2011-2011 |
|
| 028 |
|
SHIM, TRFER CASE RR OUTPUT DRV SHF HSG (PART OF 1) |
|
2011-2011 |
|
| 029 |
|
SHAFT, TRFER CASE RR OUTPUT (PART OF 1) |
|
2011-2011 |
|
| 030 |
|
BEARING, TRFER CASE RR OUTPUT SHF (INNER) (PART OF 1) |
|
2011-2011 |
|
| 031 |
|
HOUSING, TRFER CASE RR OUTPUT DRV (PART OF 1) |
|
2011-2011 |
|
| 032 |
|
SPACER, TRFER CASE RR OUTPUT SHF BRG (PART OF 1) |
|
2011-2011 |
|
| 033 |
|
BEARING, TRFER CASE RR OUTPUT SHF (OUTER) (PART OF 1) |
|
2011-2011 |
|
| 034 |
|
NUT, TRFER CASE RR OUTPUT DRV GR (PART OF 1) |
|
2011-2011 |
|
| 035 |
55573645 |
SEAL, TRFER CASE RR OUTPUT SHF (PART OF 1) |
N |
2011-2013 |
01 |
| 036 |
|
BOLT, TRFER CASE RR OUTPUT DRV SHF HSG (PART OF 1) |
|
2011-2011 |
|
| 037 |
55573646 |
PLUG, TRFER CASE OIL DRN (PART OF 1) (M20X1.5X16, 29 OD) (SQ HD W/WASHER, W/MAGNET) (ZINC COATED) |
N |
2010-2013 |
01 |
| 038 |
55574649 |
CONNECTOR, TRFER CASE VENT HOSE (PART OF 1) (USED ON T-CASE STAMPED 55574304) |
N |
2010-2013 |
01 |
| 039 |
55571459 |
SEAL, TRFER CASE (PART OF 1) (BETWEEN TRANS TRFER CASE) |
N |
2011-2013 |
01 |
