| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20926497 |

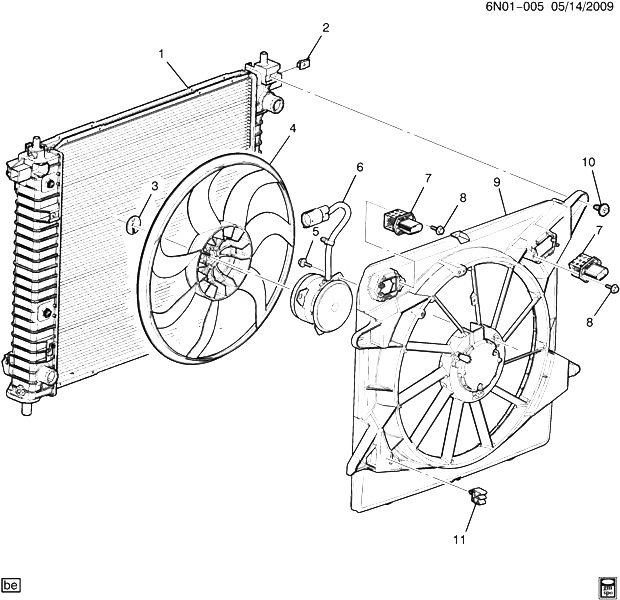

RADIATOR, (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) (INCLS 2) (ACDelco #21773) |
N (LF1) |
2011-2011 |
01 |
| 002 |
11517841 |
NUT, U SHAPED, M6X1, 15 WIDTH, 20 C/C, 1.5-2 PNL THK, SAE 1050 STL, GM6173M (PART OF 1) |
|
2010-2011 |
02 |
| 003 |
|
NUT, FAN BLADE (PART OF 9) |
|
2011-2011 |
|
| 004 |
|
FAN, ENG COOL (PART OF 9) |
|
2011-2011 |
|
| 005 |
|
BOLT, ENG COOL FAN MOT (PART OF 9) |
|
2011-2011 |
|
| 006 |
|
MOTOR, ENG COOL FAN (PART OF 9) |
|
2011-2011 |
|
| 007 |
25880376 |
RESISTOR, ENG COOL FAN (LOW SPD, 0.23 OHM) (PART OF 9) (ACDelco #25880376) |
N (LF1) |
2010-2011 |
01 |
| 007 |
20883035 |
RESISTOR, ENG COOL FAN (PART OF 9) (MED SPD, 0.09 OHM) (ACDelco #20883035) |
N (LF1) |
2010-2011 |
01 |
| 008 |
|
BOLT, ENG COOL FAN RES (PART OF 9) |
|
2011-2011 |
|
| 009 |
20883034 |
FAN, ENG COOL (W/ SHRD) (INCLS 3-8, 11) (ACDelco #15-81675) |
N (LF1) |
2010-2011 |
01 |
| 010 |
11519383 |
BOLT, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (ENG COOL FAN SHRD) |
|
2010-2011 |
AR |
| 011 |
10415915 |
CLIP, TRANS FLUID CLR PIPE (HOLDS TWO 9.50 LINES W/PUSH-IN RETAINER) (NYLON) |
N |
2010-2011 |
01 |
