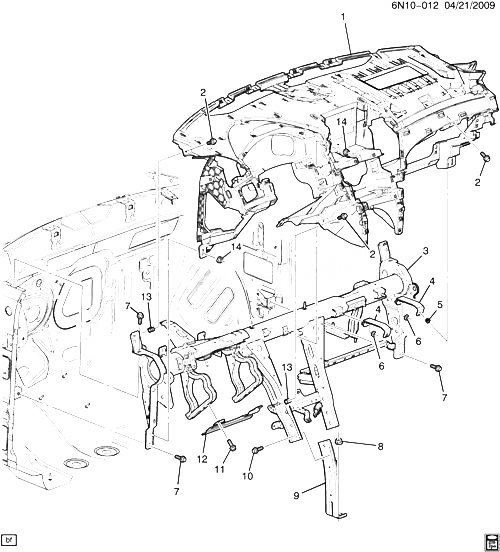

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
КРОНШТЕЙН, INST (СМ. ГРУППУ 10.000 ПРИБОРНАЯ ПАНЕЛЬ/ЧАСТЬ 1 FOR DETAILED ILLUSTRATED VIE) |
|
2010-2010 |
|
| 002 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (INST CARR)
|
2010-2010 |
07 |
|
| 003 |
20883020 |
BAR, I/P TIE (INCLS 4-6, 13) (I/P BEAM LHD) |
N (AL0) |
2010-2010 |
01 |
| 003 |
20883021 |
BAR, I/P TIE (INCLS 4-6, 13) |
N (EXC AL0) (EXPORT) |
2010-2010 |
01 |
| 004 |
|
BRACKET, I/P CARR (ЧАСТЬ OF 3) |
|
2010-2010 |
|
| 005 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (ЧАСТЬ OF 3) (10.701)
|
2010-2010 |
02 |
|
| 006 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (ЧАСТЬ OF 3)
|
2010-2010 |
02 |
|
| 007 |
11589407 |
БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (I/P (AT BODY H/PLR TIE BAR))
|
2010-2010 |
06 |
|
| 008 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (I/P CTR REINF)
|
2010-2010 |
02 |
|
| 009 |
25806715 |
BRACKET, I/P CTR REINF |
N |
2010-2010 |
01 |
| 009 |
25844749 |
BRACKET, I/P CTR REINF |
N |
2010-2010 |
01 |
| 010 |
11588723 |
БОЛТ, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (I/P CTR REINF) |
|
2010-2010 |
04 |
| 011 |
11570136 |
БОЛТ, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (I/P DRVR KNEE BOLS BRKT) |
|
2010-2010 |
04 |
| 012 |
|
REINFORCEMENT, I/P DRVR KNEE BOLS |
|
2010-2010 |
|
| 013 |
11518531 |
ГАЙКА, U-TYPE, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (ЧАСТЬ OF 3) (10.512)
|
2010-2010 |
10 |
|
| 014 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (I/P CARR)
|
2010-2010 |
04 |
|
