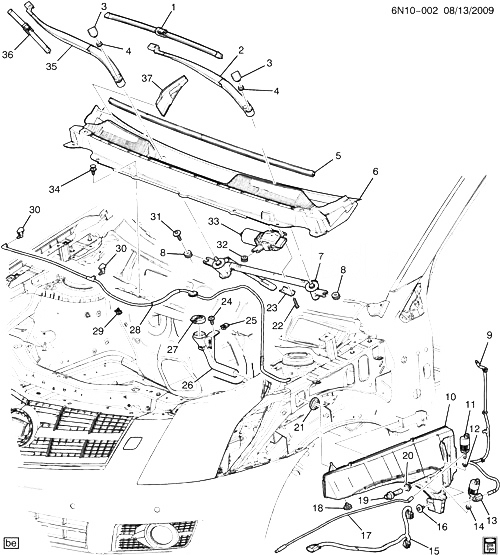

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25979378 |
BLADE, WSW
| NG |
2010-2010 |
01 |
|
| 002 |
20837225 |
ARM, WSW |
NG |
2010-2010 |
01 |
| 003 |
25788745 |
CAP, WSW ARM NUT
| NG |
2010-2010 |
02 |
|
| 004 |
11609634 |
ГАЙКА, HEX WASH, M10X1.25, 7MM THK, 20 WA OD, 9 STL, 7111M, CON SPR WA. (WSW ARM)
|
2010-2010 |
02 |
|
| 005 |
|
SEAL, AIR INL GRL PNL (ЧАСТЬ OF 6) |
|
2010-2010 |
|
| 006 |
20838546 |
PANEL, AIR INL GRL (INCLS 5) |
N (LHD) |
2010-2010 |
01 |
| 007 |
25979384 |
ТРАНСМИССИЯ, WSW (INCLS 8) (ACDelco #25979384) |
NG (LHD) |
2010-2010 |
01 |
| 008 |
|
GROMMET, WSW TRANS (ЧАСТЬ OF 7) |
|
2010-2010 |
|
| 009 |
25872177 |
HOSE, WSWA SOLV CNTNR (СМ. ГРУППУ 12.000 СТЕКЛООЧИСТИТЕЛЬ-ЗАДНЕГО СТЕКЛА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (ЗАДНИЙ JUMPER) |
NG (LBY, LF1) |
2010-2010 |
01 |
| 010 |
25979370 |
CONTAINER KIT, WSWA SOLV (INCLS 12, 14, 18, 20, 21) |
NG (EXC CE4) |
2010-2010 |
01 |
| 010 |
25979372 |
CONTAINER KIT, WSWA SOLV (INCLS 12, 14, 18, 20, 21) |
NG (CE4) |
2010-2010 |
01 |
| 011 |
25979366 |
PUMP KIT, HDLP WA (INCLS 12) |
N (CE4) |
2010-2010 |
01 |
| 012 |
|
GROMMET, WSWA PUMP (ЧАСТЬ OF 10, 11) |
|
2010-2010 |
|
| 013 |
25979368 |
PUMP KIT, WSWA W/ SEAL (INCLS 14) |
NG |
2010-2010 |
01 |
| 014 |
|
GROMMET, WSWA PUMP (ЧАСТЬ OF 10, 13) |
|
2010-2010 |
|
| 015 |
25903491 |
HARNESS, WSWA PUMP WRG |
N (CE4) |
2010-2010 |
01 |
| 015 |
25903492 |
HARNESS, WSWA PUMP WRG |
N (EXC CE4) |
2010-2010 |
01 |
| 016 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (WSWA SOLV CNTNR)
|
2010-2010 |
03 |
|
| 017 |
15949213 |
HOSE, HDLP WA (СМ. ГРУППУ 02.000 ФАРООМЫВАТЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
N (CE4) |
2010-2010 |
01 |
| 018 |
|
RETAINER, WSWA SOLV CNTNR (ЧАСТЬ OF 10) |
|
2010-2010 |
|
| 019 |
25979363 |
SWITCH KIT, WSWA SOLV LVL (INCLS 20) (ACDelco #D6346E) |
NG |
2010-2010 |
01 |
| 020 |
|
SEAL, WSWA SOLV LVL SW (ЧАСТЬ OF 10, 19) |
|
2010-2010 |
|
| 021 |
|
SEAL, WSWA SOLV CNTNR FIL TUBE (ЧАСТЬ OF 10, 26) |
|
2010-2010 |
|
| 022 |
22691731 |
БОЛТ, WSW MOT BRKT (10.150) |
NG |
2010-2010 |
02 |
| 023 |
22696792 |
SPACER, WSW MOT |
NG |
2010-2010 |
01 |
| 024 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (WSWA SOLV CNTNR FIL PIPE)
|
2010-2010 |
01 |
|
| 025 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (WSWA SOLV CNTNR FIL TUBE) |
|
2010-2010 |
01 |
| 026 |
25979358 |
TUBE KIT, WSWA SOLV CNTNR FIL (INCLS 21) |
NG |
2010-2010 |
01 |
| 027 |
13227300 |
CAP, WSWA SOLV CNTNR
| NG |
2010-2010 |
01 |
|
| 028 |
15949225 |
HOSE, WSWA NOZ |
NG |
2010-2010 |
01 |
| 029 |
25956110 |
CLIP, WSWA NOZ HOSE |
NG |
2010-2010 |
08 |
| 030 |
25823361 |
NOZZLE, WSWA (16.065)
| NG |
2010-2010 |
02 |
|
| 031 |
11513947 |
БОЛТ, HEX, W/WA, M6X1X35, 24 O.D., AC PT, 9.8, POR (WSW SYS MDL) |
|
2010-2010 |
03 |
| 032 |
|
GROMMET, WSW MOT (ЧАСТЬ OF 33) |
|
2010-2010 |
|
| 033 |
25979382 |
MOTOR, WSW (INCSL 32) (ACDelco #25979382) |
NG (LHD) |
2010-2010 |
01 |
| 034 |
11589289 |
RETAINER, PUSH-IN, FITS 6.5 HOLE, 2-4.5 THK PNL, NYLON 6/6 PER GMP.PA66.0 (AIR INL GRL PNL) |
|
2010-2010 |
04 |
| 035 |
20837226 |
ARM, WSW |
NG |
2010-2010 |
01 |
| 036 |
25979379 |
BLADE, WSW
| NG |
2010-2010 |
01 |
|
| 037 |
25777913 |
EXTENSION, AIR INL GRL PNL |
N |
2010-2010 |
01 |
| 037 |
25777914 |
EXTENSION, AIR INL GRL PNL |
N |
2010-2010 |
01 |
