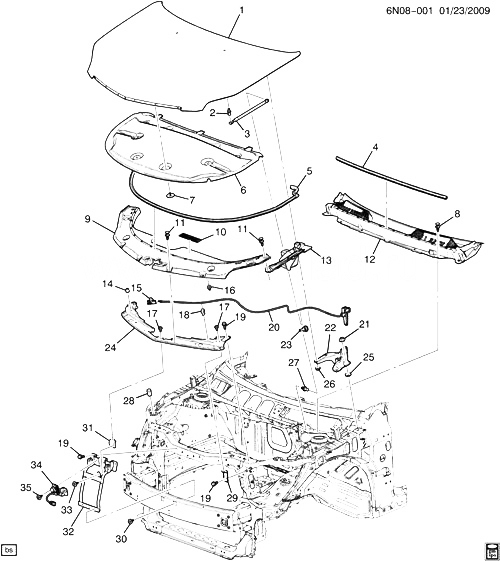

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20857909 |
КАПОТ, (INCLS 2)
| N |
2010-2010 |
01 |
|
| 002 |
11519916 |
STUD, КАПОТ OPEN ASST ROD (ЧАСТЬ OF 1) (M6X1X16) (17.202) |
N |
2010-2010 |
01 |
| 003 |
15884559 |
STRUT, КАПОТ |
N |
2010-2010 |
01 |
| 004 |
15855823 |
WEATHERSTRIP, КАПОТ RR (ЧАСТЬ OF 12) |
N (LHD) |
2010-2010 |
01 |
| 005 |
15855820 |
SEAL, КАПОТ FRT |
NG |
2010-2010 |
01 |
| 006 |
20847850 |
INSULATOR, КАПОТ
| N |
2010-2010 |
01 |
|
| 007 |
20064875 |
RETAINER, PUSH-IN, 20.5MMLG, 42.76MM 1.68HD DIA, PLASTIC (КАПОТ INSL)
|
2010-2010 |
04 |
|
| 008 |
11589289 |
RETAINER, PUSH-IN, FITS 6.5 HOLE, 2-4.5 THK PNL, NYLON 6/6 PER GMP.PA66.0 (AIR INL GRL PNL) |
|
2010-2010 |
04 |
| 009 |
20843992 |
SHIELD, F/CMPT FRT SIGHT (INCLS 10, 16) |
N |
2010-2010 |
01 |
| 010 |
|
LABEL, КОНДИЦИОНЕР REFRIG CHRG (ЧАСТЬ OF 9) |
|
2010-2010 |
|
| 011 |
11589291 |
RETAINER, PUSH-IN, FITS 6.5 HOLE IN 7-9.5 THK PNL, NYLON 6/6 (F/CMPT FRT SIGHT SHLD)
|
2010-2010 |
10 |
|
| 012 |
20838546 |
PANEL, AIR INL GRL (INCLS 4) |
N (LHD) |
2010-2010 |
01 |
| 013 |
15909451 |
SHIELD, F/CMPT SI SIGHT |
N |
2010-2010 |
01 |
| 013 |
15909452 |
SHIELD, F/CMPT SI SIGHT |
N |
2010-2010 |
01 |
| 014 |
15931787 |
BUMPER, КАПОТ STOP
| N |
2010-2010 |
04 |
|
| 015 |
20835397 |
SLEEVE, КАПОТ PRIM LAT REL CBL |
N (LHD, UTC) |
2010-2010 |
01 |
| 016 |
11561654 |
RETAINER, F/CMPT FRT SIGHT SHLD (ЧАСТЬ OF 9) (PLAIN) (8.5MM DIA HOLE) (BIRDS BEAK SINGLE) (12.800)
| NG |
2010-2010 |
02 |
|
| 017 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BPR FASCIA CTR SUPT)
|
2010-2010 |
03 |
|
| 018 |
20087231 |
CLIP, КАПОТ PRIM LAT REL CBL (7MM) (NYLON) (8.077) |
N |
2010-2010 |
02 |
| 019 |
11588723 |
БОЛТ, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (КАПОТ INR PNL CTH БОЛТ REINF) |
|
2010-2010 |
07 |
| 020 |
20810946 |
HANDLE, КАПОТ PRIM LAT REL CBL (INCLS 23) (BLACK) |
N (LHD) |
2010-2010 |
01 |
| 021 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (КАПОТ HGE (BODY SI))
|
2010-2010 |
04 |
|
| 022 |
15884430 |
HINGE, КАПОТ
| N |
2010-2010 |
01 |
|
| 022 |
15884431 |
HINGE, КАПОТ
| N |
2010-2010 |
01 |
|
| 023 |
20802216 |
GROMMET, КАПОТ PRIM LAT REL CBL (ЧАСТЬ OF 20) |
N (LHD) |
2010-2010 |
01 |
| 024 |
20856396 |
SUPPORT, FRT BPR FASCIA UPR |
NG |
2010-2010 |
01 |
| 025 |
|
SHIM, КАПОТ HGE |
|
2010-2010 |
|
| 026 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (КАПОТ HGE (КАПОТ SI))
|
2010-2010 |
04 |
|
| 027 |
11609990 |
STUD, КАПОТ STRUT BALL (M8X1.25X20)
| N |
2010-2010 |
02 |
|
| 028 |
00472450 |
BUMPER, КАПОТ ADJ FRT (OTR) |
NG |
2010-2010 |
02 |
| 029 |
25876376 |
BRACKET, FRT BPR FASCIA |
NG |
2010-2010 |
02 |
| 030 |
11609982 |
БОЛТ, КАПОТ PRIM LAT BRKT LWR (6 X 1 X 22) (8.900) |
NG |
2010-2010 |
02 |
| 031 |
|
SUPPORT, КАПОТ PRIM LAT (ЧАСТЬ OF 32) |
|
2010-2010 |
|
| 032 |
25876364 |
BRACKET, КАПОТ PRIM LAT (INCLS 31, 33) |
N |
2010-2010 |
01 |
| 033 |
|
БОЛТ, КАПОТ PRIM LAT (ЧАСТЬ OF 32) |
|
2010-2010 |
|
| 034 |
20810956 |
LATCH, КАПОТ PRIM SECD |
N (LHD) |
2010-2010 |
01 |
| 035 |
11561969 |
БОЛТ, КАПОТ PRIM SECD LAT (8.900) |
N |
2010-2010 |
02 |
