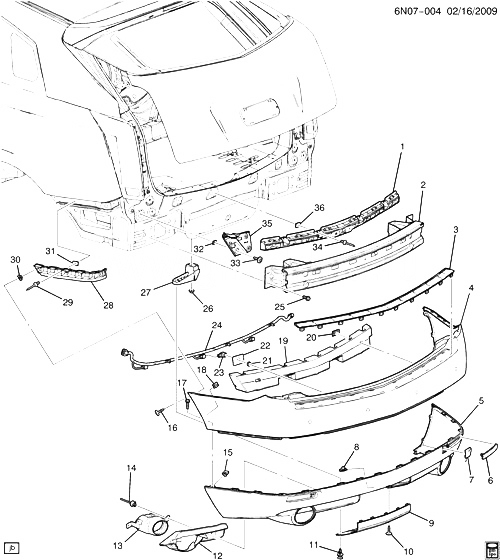

(6N07-004) - 2010 N БАМПЕР ЗАДНИЙ CADILLAC - SRX 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25808050 BRACKET, RR BPR FASCIA CTR (INCLS 36) NG 2010-2010 01
002 15925979 BAR, RR BPR IMP NG (EXC VGP) 2010-2010 01
002 15925980 BAR, RR BPR IMP NG (VGP) 2010-2010 01
003 25777326 PROTECTOR, RR BPR FASCIA NG 2010-2010 01
004 20835692 FASCIA, RR BPR UPR (INCLS 22) (КРАСКА TO MATCH) NG (EXC UD5) 2010-2010 01
004 20835693 FASCIA, RR BPR UPR (INCLS 22) (КРАСКА TO MATCH) NG (UD5) 2010-2010 01
005 25777280 FASCIA, RR BPR LWR (INCLS 12) NG 2010-2010 01
006 25881881 REFLECTOR, RR N 2010-2010 01
006 25881882 REFLECTOR, RR N 2010-2010 01
007 25777324 COVER, RR BPR FASCIA TOW HOOK ACC HOLE N 2010-2010 01
008 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (RR BPR FASCIA OPG CVR) (ACDelco #11513599) 2010-2010 02
009 25777325 COVER, RR BPR FASCIA TRLR HITCH ACC HOLE N 2010-2010 01
010 11609762 SCREW, RND HD W/FL WA, M4.2X1.41X25, 17 OD, 18 THD, STL PER ISO2702, GMW42 (RR BPR FASCIA OPG CVR) 2010-2010 02
011 11589290 RETAINER, PUSH-IN, FITS 6.5 HOLE, 4.5 -7.0 THK PNL, NYLON 6/6 GMP.PA66.0 (RR BPR LWR FASCIA (PUSH IN)) 2010-2010 04
012 BRACKET, EXH PIPE RR H/SHLD (ЧАСТЬ OF 5) 2010-2010
013 25827292 SLEEVE, EXH TAIL PIPE HT N 2010-2010 01
013 25859596 SLEEVE, EXH TAIL PIPE HT N 2010-2010 01
014 11516807 RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (RR BPR FASCIA REINF) 2010-2010 06
015 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (RR BPR FASCIA) (ACDelco #11513599) 2010-2010 04
016 11609762 SCREW, RND HD W/FL WA, M4.2X1.41X25, 17 OD, 18 THD, STL PER ISO2702, GMW42 (RR W/H PNL LNR) 2010-2010 12
017 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR BPR FASCIA) 2010-2010 04
018 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (RR W/H PNL LNR) (ACDelco #11513599) 2010-2010 06
019 25777323 АМОРТИЗАТОР, RR BPR ENGY NG 2010-2010 01
020 94515232 RETAINER, RR BPR ENGY ABS ANC PLT (PUSH ON) (7.836) NG 2010-2010 02
021 RING, RR OBJECT SEN (ЧАСТЬ OF 23) 2010-2010
022 15271277 RETAINER, RR OBJECT SEN (ЧАСТЬ OF 4) (7.831) N (UD5) 2010-2010 04
022 15271277 RETAINER, RR OBJECT SEN (ЧАСТЬ OF 4) N (UD5) 2010-2010 04
023 19116009 SENSOR KIT, RR OBJECT (INCLS 21) N (UD5) 2010-2010 04
023 25947184 SENSOR KIT, RR OBJECT (INSTALL 2.5) (INCLS 21) (7.831) (SERV CMP OF RR OBJECT SENSOR PKGS) NG26 (EXC UD5) 2010-2010 01
024 19213649 HARNESS, RR OBJECT SEN WRG (2.195) (SERV CMP OF RR OBJECT SENSOR PKGS) NG26 (EXC UD5) 2010-2010 01
024 20846751 HARNESS, RR OBJECT SEN WRG N (UD5) 2010-2010 01
025 11518625 БОЛТ, PAN, M10X1.5X35, 33.5THD, 20 O.D., 10.9, 6138M (RR BPR IMP BAR) 2010-2010 08
026 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR BPR LWR FASCIA) 2010-2010 02
027 20823532 BRACKET, RR BPR LWR FASCIA NG 2010-2010 01
027 20823533 BRACKET, RR BPR LWR FASCIA NG 2010-2010 01
028 20907398 BRACKET, RR BPR FASCIA SI (INCLS 30, 31) NG (NOT YET AVAILABLE) 2010-2010 01
028 20907399 BRACKET, RR BPR FASCIA SI (INCLS 30, 31) NG (NOT YET AVAILABLE) 2010-2010 01
029 09132667 RIVET, RR BPR FASCIA SI BRKT (7.833) NG 2010-2010 08
030 11518531 ГАЙКА, U-TYPE, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (ЧАСТЬ OF 28) (10.512) 2010-2010 01
031 SEAL, RR BPR FASCIA SI BRKT (ЧАСТЬ OF 28) 2010-2010
032 11569711 ГАЙКА, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-1065, GMW3359 W/ (RR BPR FASCIA BRKT) 2010-2010 06
033 11609935 SCREW, HEX HD W/FLAT WA, M4.2X1.41 (RR BPR FASCIA BRKT) 2010-2010 06
034 09132667 RIVET, RR BPR FASCIA BRKT (7.833) NG 2010-2010 04
035 25776392 BRACKET, RR BPR FASCIA NG 2010-2010 01
035 25776393 BRACKET, RR BPR FASCIA NG 2010-2010 01
036 SEAL, RR BPR FASCIA (ЧАСТЬ OF 1) 2010-2010
