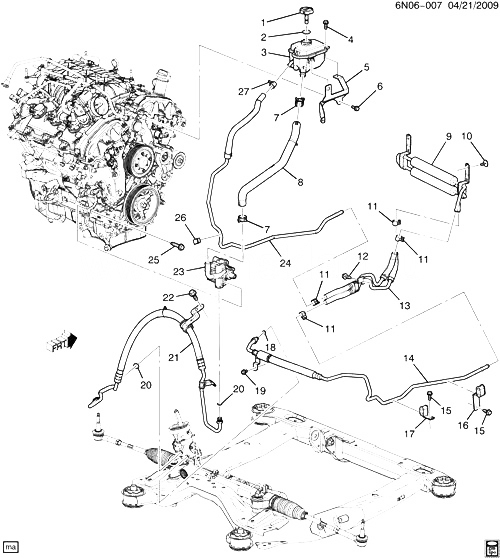

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
13287294 |
CAP, P/S FLUID RSVR |
N (LF1) |
2010-2010 |
01 |
| 002 |
|
SEAL, P/S FLUID RSVR CAP (O RING) (ЧАСТЬ OF 3) |
|
2010-2010 |
|
| 003 |
13287295 |
RESERVOIR, P/S FLUID (INCLS 2) |
N (LF1) |
2010-2010 |
01 |
| 004 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID RSVR) |
|
2010-2010 |
01 |
| 005 |
13259109 |
BRACKET, P/S FLUID RSVR |
N (LF1) |
2010-2010 |
01 |
| 006 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID RSVR BRKT) |
|
2010-2010 |
02 |
| 007 |
|
CЛАМПА, P/S FLUID RSVR OTLT HOSE (ЧАСТЬ OF 8) |
|
2010-2010 |
|
| 008 |
20872552 |
HOSE, P/S FLUID RSVR OTLT (INCLS 7) |
N (LF1, LHD) |
2010-2010 |
01 |
| 009 |
20832552 |
COOLER, P/S FLUID |
N |
2010-2010 |
01 |
| 010 |
11609982 |
БОЛТ, HEX W/FL WA, M6X1X22, 14.55 THD, 24 OD, 8.8, GMW3359, M-PT. (P/S FLUID CLR BRKT) |
|
2010-2010 |
02 |
| 011 |
|
CЛАМПА, P/S FLUID CLR INL OTLT HOSE) (ЧАСТЬ OF 13) |
|
2010-2010 |
|
| 012 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID CLG PIPE BRKT) |
|
2010-2010 |
01 |
| 013 |
20850641 |
HOSE, P/S FLUID CLR INL OTLT (INCLS 11) |
N (LF1) (NOT YET AVAILABLE) |
2010-2010 |
01 |
| 014 |
25817923 |
HOSE, P/S GR OTLT (INCLS 16-18) (*KIT1) |
N (LF1, LHD) |
2010-2010 |
01 |
| 015 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S GR OTLT HOSE BRKT) |
|
2010-2010 |
02 |
| 016 |
|
BRACKET, P/S GR OTLT PIPE INSL (ЧАСТЬ OF 14) (*KIT1) |
|
2010-2010 |
|
| 017 |
|
BRACKET, P/S GR OTLT PIPE INSL (ЧАСТЬ OF 14) (*KIT1) |
|
2010-2010 |
|
| 018 |
|
SEAL, P/S GR OTLT HOSE (ЧАСТЬ OF 14) (*KIT1) |
|
2010-2010 |
|
| 019 |
25622442 |
БОЛТ, P/S GR OTLT HOSE BRKT (M8X1.25X13) (4.785) |
N (LAU, LF1, LHD) |
2010-2010 |
01 |
| 020 |
|
SEAL, P/S GR INL HOSE (O RING) (ЧАСТЬ OF 21) |
|
2010-2010 |
|
| 021 |
20872546 |
HOSE, P/S GR INL (INCLS 20) |
N (LF1, LHD) |
2010-2010 |
01 |
| 022 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S GR INL HOSE BRKT) |
|
2010-2010 |
01 |
| 023 |
15938622 |
PUMP, P/S |
N (LF1) |
2010-2010 |
01 |
| 024 |
15872962 |
HOSE, P/S FLUID RSVR INL (INCLS 26, 27) (*KIT1) |
N (LF1, LHD) |
2010-2010 |
01 |
| 025 |
11519980 |
БОЛТ, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (P/S PUMP) |
|
2010-2010 |
03 |
| 026 |
10405874 |
CLIP, P/S GR INL HOSE (ЧАСТЬ OF 24) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) (*KIT1) (4.128) |
N |
2010-2010 |
01 |
| 027 |
11517127 |
CЛАМПА, ПРУЖИНА, 17MM-NOM, BLK (ЧАСТЬ OF 24) (*KIT1) |
|
2010-2010 |
01 |
| K01 |
|
HOSE, P/S GR OTLT P/S FLUID RSVR INL (INCLS 14, 16-18, 24, 26, 27) |
|
2010-2010 |
|
