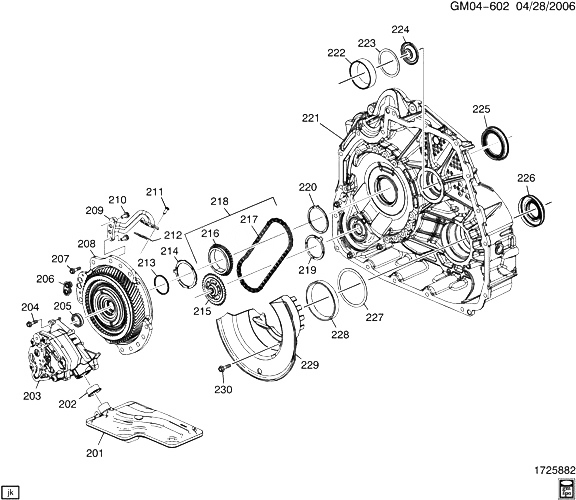

(GM04-602) - 2010 N АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MH2,MH4) 6T70 DIFFERENTIAL ШЛАНГИ, GEAR SUPPORT, AND ГИДРОНАСОС CADILLAC - SRX 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
201 ФИЛЬТР, A/TRNS FLUID (INCLS 202) (*KIT1) 2010-2010
202 SEAL, A/TRNS FLUID FLTR (ЧАСТЬ OF 201, 203) (*KIT1) 2010-2010
203 24241264 PUMP, A/TRNS FLUID (INCLS 202) (ACDelco #24241264) N (LF1, MH2, F07) 2010-2010 01
203 24241264 PUMP, A/TRNS FLUID (INCLS 202) (ACDelco #24241264) N (LF1, MH4, F07) 2010-2010 01
204 08680884 БОЛТ, A/TRNS ГИДРОНАСОС (M6X1.0X25) (4.228) N (MH2, MH4) 2010-2010 01
205 SEAL, FRT DIFF TRFER DRV GR SUPT (ЧАСТЬ OF 208) (*KIT1) 2010-2010
206 SEAL, FRT DIFF TRFER DRV GR SUPT T/CV FLUID (ЧАСТЬ OF 208) (*KIT1) 2010-2010
207 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FRT DIFF TRFER DRV GR SUPT) (ACDelco #11570082) 2010-2010 10
208 24232066 SUPPORT, FRT DIFF TRFER DRV GR (INCLS 205, 206, 209-214) N (LF1, MH2, F07) 2010-2010 01
208 24232066 SUPPORT, FRT DIFF TRFER DRV GR (INCLS 205, 206, 209-214) N (LF1, MH4, F07) 2010-2010 01
209 24224022 TUBE, FRT DIFF TRFER DRV GR FLUID PASG (ЧАСТЬ OF 208) N (LF1, MH2) 2010-2010 01
209 24224022 TUBE, FRT DIFF TRFER DRV GR FLUID PASG (ЧАСТЬ OF 208) N (LF1, MH4) 2010-2010 01
210 24224023 БОЛТ, FRT DIFF TRFER DRV GR FLUID PASG TUBE (ЧАСТЬ OF 208) (12.25 OD X 20 LG) N (LF1, MH2, F07) 2010-2010 02
210 24224023 БОЛТ, FRT DIFF TRFER DRV GR FLUID PASG TUBE (ЧАСТЬ OF 208) (12.25 OD X 20 LG) N (LF1, MH4, F07) 2010-2010 02
211 24231466 БОЛТ, FRT DIFF TRFER DRV GR FLUID PASG TUBE (ЧАСТЬ OF 208) (9.5 OD X 16 LG) N (LF1, MH2, F07) 2010-2010 02
211 24231466 БОЛТ, FRT DIFF TRFER DRV GR FLUID PASG TUBE (ЧАСТЬ OF 208) (9.5 OD X 16 LG) N (LF1, MH4, F07) 2010-2010 02
212 GASKET, FRT DIFF TRFER DRV GR FLUID PASG TUBE (ЧАСТЬ OF 208) (*KIT1) 2010-2010
213 24225405 SEAL, FRT DIFF TRFER DRV GR SUPT (ЧАСТЬ OF 208) (44.64MM O.D.) (*KIT1) N (MH2, MH4) 2010-2010 01
214 24223990 WASHER, DRV SPKT THR (ЧАСТЬ OF 208) (W/TABS) (*KIT1) (ACDelco #24223990) N (LF1, MH2) 2010-2010 01
214 24223990 WASHER, DRV SPKT THR (ЧАСТЬ OF 208) (W/TABS) (*KIT1) (ACDelco #24223990) N (LF1, MH4, F07) 2010-2010 01
215 SPROCKET, DRVN (ЧАСТЬ OF 218) 2010-2010
216 SPROCKET, DRV (ЧАСТЬ OF 218) 2010-2010
217 LINK, DRV (ЧАСТЬ OF 218) 2010-2010
218 24223985 LINK, DRV (INCLS 215-217) (ACDelco #24223985) N (LF1, MH2, F07) 2010-2010 01
218 24223985 LINK, DRV (INCLS 215-217) (ACDelco #24223985) N (LF1, MH4, F07) 2010-2010 01
219 24230412 WASHER, DRVN SPKT THR (*KIT1) (ACDelco #24230412) N (LF1, MH2, F07) 2010-2010 01
219 24230412 WASHER, DRVN SPKT THR (*KIT1) (ACDelco #24230412) N (LF1, MH4, F07) 2010-2010 01
220 24223984 WASHER, DRV SPKT THR (W/O TABS) (*KIT1) (ACDelco #24223984) N (LF1, MH2, F07) 2010-2010 01
220 24223984 WASHER, DRV SPKT THR (W/O TABS) (*KIT1) (ACDelco #24223984) N (LF1, MH4, F07) 2010-2010 01
221 24252445 ШЛАНГИ, T/CV DIFF (FOR FWD RPO MH2 SERVICE T/W 24234254) (ACDelco #24252445) N (LF1, MH2) 2010-2010 01
221 24252445 ШЛАНГИ, T/CV DIFF (FOR FWD RPO MH2 SERVICE T/W 24234254) (ACDelco #24252445) N (LF1, MH4) 2010-2010 01
222 24229374 CUP, FRT DIFF DRV PINION GR BRG N (LF1, MH2, MH4) 2010-2010 01
223 24234081 WASHER, FRT DIFF DRV P/GR BRG THR (BROWN) (0.494 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234081 WASHER, FRT DIFF DRV P/GR BRG THR (BROWN) (0.494 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
223 24234082 WASHER, FRT DIFF DRV P/GR BRG THR (PURPLE) (0.545 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234082 WASHER, FRT DIFF DRV P/GR BRG THR (PURPLE) (0.545 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
223 24234083 WASHER, FRT DIFF DRV P/GR BRG THR (BLACK) (0.596 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234083 WASHER, FRT DIFF DRV P/GR BRG THR (BLACK) (0.596 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
223 24234084 WASHER, FRT DIFF DRV P/GR BRG THR (PINK) (0.647 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234084 WASHER, FRT DIFF DRV P/GR BRG THR (PINK) (0.647 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
223 24234085 WASHER, FRT DIFF DRV P/GR BRG THR (DARK BLUE) (0.698 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234085 WASHER, FRT DIFF DRV P/GR BRG THR (DARK BLUE) (0.698 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
223 24234086 WASHER, FRT DIFF DRV P/GR BRG THR (LIGHT GREEN) (0.749 MM) (6.056) N (LF1, MH2) 2010-2010 01
223 24234086 WASHER, FRT DIFF DRV P/GR BRG THR (LIGHT GREEN) (0.749 MM) (6.056) N (LF1, MH4) 2010-2010 01
223 24234087 WASHER, FRT DIFF DRV P/GR BRG THR (PLAIN) (0.800 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234087 WASHER, FRT DIFF DRV P/GR BRG THR (PLAIN) (0.800 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
223 24234088 WASHER, FRT DIFF DRV P/GR BRG THR (WHITE) (0.851 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234088 WASHER, FRT DIFF DRV P/GR BRG THR (WHITE) (0.851 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
223 24234089 WASHER, FRT DIFF DRV P/GR BRG THR (LIGHT BLUE) (0.902 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234089 WASHER, FRT DIFF DRV P/GR BRG THR (LIGHT BLUE) (0.902 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
223 24234090 WASHER, FRT DIFF DRV P/GR BRG THR (ORANGE) (0.953 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234090 WASHER, FRT DIFF DRV P/GR BRG THR (ORANGE) (0.953 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
223 24234091 WASHER, FRT DIFF DRV P/GR BRG THR (WHITE/BLACK) (1.004 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234091 WASHER, FRT DIFF DRV P/GR BRG THR (WHITE/BLACK) (1.004 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
223 24234092 WASHER, FRT DIFF DRV P/GR BRG THR (WHITE/ORANGE) (1.055 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234092 WASHER, FRT DIFF DRV P/GR BRG THR (WHITE/ORANGE) (1.055 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
223 24234093 WASHER, FRT DIFF DRV P/GR BRG THR (WHITE/LT GREEN) (1.106 MM) (6.056) N (LF1, MH2, F07) 2010-2010 01
223 24234093 WASHER, FRT DIFF DRV P/GR BRG THR (WHITE/LT GREEN) (1.106 MM) (6.056) N (LF1, MH4, F07) 2010-2010 01
224 24217840 DAM, FRT DIFF DRV P/GR LUB (*KIT1) N (LF1, MH2, F07) 2010-2010 01
224 24217840 DAM, FRT DIFF DRV P/GR LUB (*KIT1) N (LF1, MH4, F07) 2010-2010 01
225 24249376 SEAL, T/CV FLUID (*KIT1) (ACDelco #24249376) N (MH2, MH4) 2010-2010 01
226 24234254 SEAL, FRT WHL DRV SHF OIL (T/CV DIFF HSG SIDE) (*KIT1) (ACDelco #24234254) N (LF1, MH2, F07) 2010-2010 01
226 24234254 SEAL, FRT WHL DRV SHF OIL (T/CV DIFF HSG SIDE) (*KIT1) (ACDelco #24234254) N (LF1, MH4, F07) 2010-2010 01
227 24234094 WASHER, FRT DIFF BRG (BROWN) (0.494 MM) N (LF1, MH2) 2010-2010 01
227 24234094 WASHER, FRT DIFF BRG (BROWN) (0.494 MM) N (LF1, MH4) 2010-2010 01
227 24234095 WASHER, FRT DIFF BRG (PURPLE) (0.545 MM) N (LF1, MH2, F07) 2010-2010 01
227 24234095 WASHER, FRT DIFF BRG (PURPLE) (0.545 MM) N (LF1, MH4, F07) 2010-2010 01
227 24234096 WASHER, FRT DIFF BRG (BLACK) (0.596 MM) N (LF1, MH2) 2010-2010 01
227 24234096 WASHER, FRT DIFF BRG (BLACK) (0.596 MM) N (LF1, MH4) 2010-2010 01
227 24234097 WASHER, FRT DIFF BRG (PINK) (0.647 MM) N (LF1, MH2, F07) 2010-2010 01
227 24234097 WASHER, FRT DIFF BRG (PINK) (0.647 MM) N (LF1, MH4, F07) 2010-2010 01
227 24234098 WASHER, FRT DIFF BRG (DARK BLUE) (0.698 MM) N (LF1, MH2, F07) 2010-2010 01
227 24234098 WASHER, FRT DIFF BRG (DARK BLUE) (0.698 MM) N (LF1, MH4, F07) 2010-2010 01
227 24234099 WASHER, FRT DIFF BRG (LIGHT GREEN) (0.749 MM) N (LF1, MH2, F07) 2010-2010 01
227 24234099 WASHER, FRT DIFF BRG (LIGHT GREEN) (0.749 MM) N (LF1, MH4, F07) 2010-2010 01
227 24234100 WASHER, FRT DIFF BRG (PLAIN) (0.800 MM) N (LF1, MH2, F07) 2010-2010 01
227 24234100 WASHER, FRT DIFF BRG (PLAIN) (0.800 MM) N (LF1, MH4, F07) 2010-2010 01
227 24234101 WASHER, FRT DIFF BRG (WHITE) (0.851 MM) N (LF1, MH2, F07) 2010-2010 01
227 24234101 WASHER, FRT DIFF BRG (WHITE) (0.851 MM) N (LF1, MH4, F07) 2010-2010 01
227 24234102 WASHER, FRT DIFF BRG (LIGHT BLUE) (0.902 MM) N (LF1, MH2, F07) 2010-2010 01
227 24234102 WASHER, FRT DIFF BRG (LIGHT BLUE) (0.902 MM) N (LF1, MH4, F07) 2010-2010 01
227 24234103 WASHER, FRT DIFF BRG (ORANGE) (0.953 MM) N (LF1, MH2, F07) 2010-2010 01
227 24234103 WASHER, FRT DIFF BRG (ORANGE) (0.953 MM) N (LF1, MH4, F07) 2010-2010 01
227 24234104 WASHER, FRT DIFF BRG (WHITE/BLACK) (1.004 MM) N (LF1, MH2, F07) 2010-2010 01
227 24234104 WASHER, FRT DIFF BRG (WHITE/BLACK) (1.004 MM) N (LF1, MH4, F07) 2010-2010 01
227 24234105 WASHER, FRT DIFF BRG (WHITE/ORANGE) (1.055 MM) N (LF1, MH2, F07) 2010-2010 01
227 24234105 WASHER, FRT DIFF BRG (WHITE/ORANGE) (1.055 MM) N (LF1, MH4, F07) 2010-2010 01
227 24234106 WASHER, FRT DIFF BRG (WHITE/LT GREEN) (1.106 MM) N (LF1, MH2, F07) 2010-2010 01
227 24234106 WASHER, FRT DIFF BRG (WHITE/LT GREEN) (1.106 MM) N (LF1, MH4, F07) 2010-2010 01
228 24233776 CUP, FRT DIFF CARR BRG (T/CV DIFF HSG SIDE) N (LF1, MH2, F07) 2010-2010 01
228 24233776 CUP, FRT DIFF CARR BRG (T/CV DIFF HSG SIDE) N (LF1, MH4, F07) 2010-2010 01
229 24238331 BAFFLE, FRT DIFF CARR N (LF1, MH2, F07) 2010-2010 01
229 24238331 BAFFLE, FRT DIFF CARR N (LF1, MH4, F07) 2010-2010 01
230 08680884 БОЛТ, FRT DIFF CARR BFL (M6X1.0X25) (4.228) N (LF1, MH2, MH4, F07) 2010-2010 01
K01 24253594 SEAL KIT, A/TRNS SERV (INCLS 201, 202, 205, 206, 212-214, 219, 220, 224-226) N (MH2, MH4) 2010-2010 01
