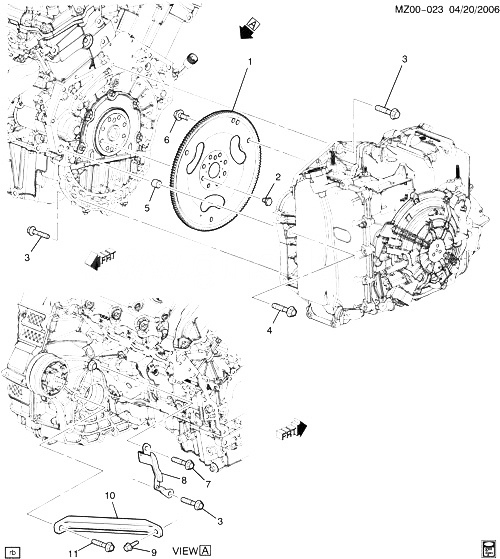

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12597026 |
PLATE, A/TRNS FLEX |
N (LF1) |
2010-2010 |
01 |
| 002 |
11518862 |
БОЛТ, HEX, W/ADH, M10X1X15.5, 10.9, HDR-PT (A/TRNS FLEX PLT)
|
2010-2010 |
08 |
|
| 003 |
11515769 |
БОЛТ, HFH, M10X1.5X45, 25THD, 22.3OD, 10.9, 7114M, MACH RAISED SHOULDER (TRANSAXLE)
|
2010-2010 |
06 |
|
| 004 |
11518631 |
БОЛТ, HFH, M10X1.5X65, 26 THD, 22.3 OD, 10.9 STL, GMW3359 (TRANSAXLE) |
|
2010-2010 |
01 |
| 005 |
12597210 |
PIN, TRANS LOC |
N (LAU, LF1) |
2010-2010 |
02 |
| 006 |
11588468 |
БОЛТ, TRANSAXLE T/CV (M10X1.5X15) |
N (LF1) |
2010-2010 |
01 |
| 007 |
11515778 |
БОЛТ, HFH, M12X1.75X45, 40 THD, 26.6 OD, 10.9, 7114M, P-POINT. (TRANSAXLE)
|
2010-2010 |
01 |
|
| 008 |
24240301 |
COVER, TRANS CONV |
N (LF1, MH2) |
2010-2010 |
01 |
| 009 |
11588740 |
БОЛТ, HFH, M10X1.5X40, 30 THD, 22.3 OD, 10.9, GMW3359, M-PT (TRANS BR) (ACDelco #11588740) |
|
2010-2010 |
AR |
| 010 |
12610060 |
BRACE, TRANS |
N (LF1, MH2) |
2010-2010 |
01 |
| 011 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (TRANS RR MT) (T/W 12345493)
|
2010-2010 |
01 |
|
