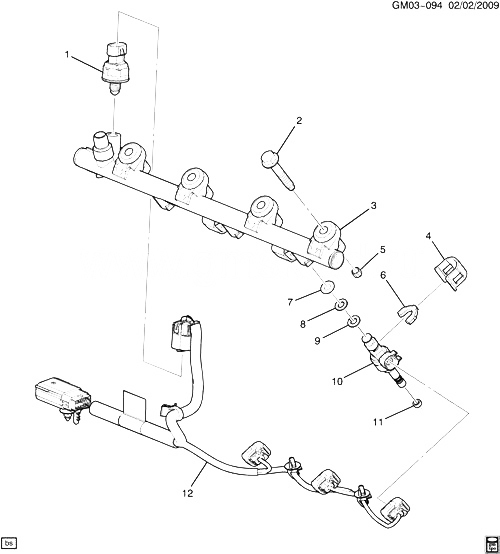

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12633417 |
SENSOR, F/INJN FUEL RL FUEL PRESS (ACDelco #213-4652) |
N (LF1) |
2010-2010 |
01 |
| 002 |
|
БОЛТ, F/INJN FUEL RL |
|
2010-2010 |
|
| 002 |
11588729 |
БОЛТ, F/INJN FUEL RL (M8X1.25X55) (8.900) |
N (LF1) |
2010-2010 |
04 |
| 003 |
12629929 |
RAIL, F/INJN FUEL |
N (LF1) |
2010-2010 |
01 |
| 003 |
12633593 |
RAIL, F/INJN FUEL |
N (LF1) |
2010-2010 |
01 |
| 004 |
|
RETAINER, F/INJR (ЧАСТЬ OF 10) (*KIT1) |
|
2010-2010 |
|
| 005 |
|
RETAINER, F/INJN FUEL RL PLUG |
|
2010-2010 |
|
| 006 |
|
BUSHING, F/INJR (ЧАСТЬ OF 10) (*KIT1) |
|
2010-2010 |
|
| 007 |
|
SEAL, F/INJN FUEL RL (O RING) (ЧАСТЬ OF 10) (*KIT1) |
|
2010-2010 |
|
| 008 |
|
SPACER, F/INJR SEAL (ЧАСТЬ OF 10) (*KIT1) |
|
2010-2010 |
|
| 009 |
|
SPACER, F/INJR SEAL (ЧАСТЬ OF 10) (*KIT1) |
|
2010-2010 |
|
| 010 |
12629927 |
INJECTOR, DIR FUEL (INCLS 4, 6-9, 11) |
N (LF1) |
2010-2010 |
06 |
| 011 |
|
SEAL, F/INJR NOZ HSG (ЧАСТЬ OF 10) (*KIT1) |
|
2010-2010 |
|
| 012 |
|
HARNESS, F/INJR WRG |
|
2010-2010 |
|
| 012 |
12629928 |
HARNESS, F/INJR WRG |
N (LF1) |
2010-2010 |
01 |
| 012 |
12629930 |
HARNESS, F/INJR WRG |
N (LF1) |
2010-2010 |
01 |
| K01 |
|
SEAL KIT, F/INJR (O RING) (INCLS 4, 6-9, 11) |
|
2010-2010 |
|
