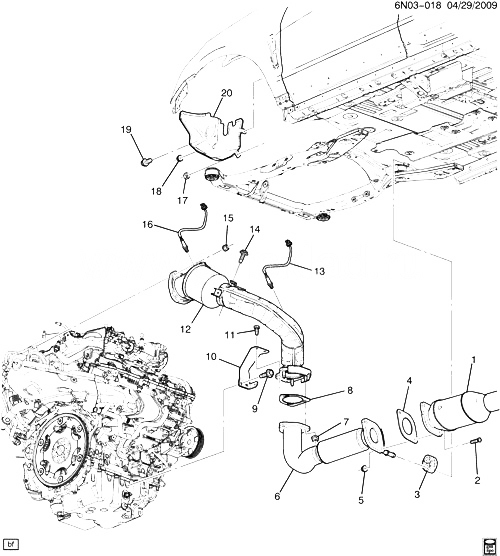

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20815644 |
MUFFLER, EXH (W/EXH TAIL PIPE 3 WAY CTLTC CONV) (INCLS 2, 4) (СМ. ГРУППУ 03.000 СИСТЕМА ОТРАБОТАВШИХ ГАЗОВ/ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
N (LAU) |
2010-2010 |
01 |
| 002 |
11569930 |
STUD, EXH MUFF (ЧАСТЬ OF 1) |
N (LAU, LF1) (NOT YET AVAILABLE) |
2010-2010 |
02 |
| 003 |
25980549 |
INSULATOR, EXH FRT PIPE (ЧАСТЬ OF 6) |
N (LAU, LF1) |
2010-2010 |
01 |
| 004 |
25886622 |
GASKET, EXH MUFF (ЧАСТЬ OF 1) |
N (LAU, LF1) |
2010-2010 |
01 |
| 004 |
25886622 |
GASKET, EXH MUFF (ЧАСТЬ OF 1) |
N (LAU, NT7, NU1) |
2010-2010 |
01 |
| 005 |
11517996 |
ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (EXH MUFF)
|
2010-2010 |
02 |
|
| 006 |
25918031 |
PIPE, EXH FLEX (INCLS 3) |
N (LAU) |
2010-2010 |
01 |
| 007 |
11516076 |
ГАЙКА, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (EXH FRT PIPE)
|
2010-2010 |
03 |
|
| 008 |
55355416 |
GASKET, EXH FRT PIPE (ЧАСТЬ OF 12) |
N (LAU, NE9, NF9, NT7, NU5) |
2010-2010 |
01 |
| 008 |
55355416 |
GASKET, EXH FRT PIPE (ЧАСТЬ OF 12) |
N (LAU, NT7, NU1) |
2010-2010 |
01 |
| 009 |
11900254 |
БОЛТ, HFH, M8X1.25X29, 19 THD, 18 OD, 8.8, GMW3359, M-POINT (CTLTC CONV BR) |
|
2010-2010 |
02 |
| 010 |
55562545 |
BRACE, CTLTC CONV (ЧАСТЬ OF 12) |
N (LAU, NE9, NF9) |
2010-2010 |
01 |
| 010 |
55562545 |
BRACE, CTLTC CONV (ЧАСТЬ OF 12) |
N (LAU, NT7, NU1) |
2010-2010 |
01 |
| 010 |
55562545 |
BRACE, CTLTC CONV (ЧАСТЬ OF 12) |
N (LAU, NT7, NU5) |
2010-2010 |
01 |
| 011 |
11519976 |
БОЛТ, HFLGE, M8X1.25X20, 15.6 THD, 18 O.D., 8.8, GMW3359 (ЧАСТЬ OF 12) |
|
2010-2010 |
02 |
| 012 |
55564603 |
CONVERTER, W/UP 3WAY CTLTC (W/EXH PIPE) (INCLS 8, 10, 11) (3.685) |
N (LAU, NE9, NF9) |
2010-2010 |
01 |
| 012 |
55564603 |
CONVERTER, W/UP 3WAY CTLTC (W/EXH PIPE) (INCLS 8, 10, 11) |
N (LAU, NE9, NF9) |
2010-2010 |
01 |
| 012 |
55567833 |
CONVERTER, W/UP 3WAY CTLTC (W/EXH PIPE) (INCLS 8, 10, 11) (3.685) |
N (LAU, NT7, NU1) |
2010-2010 |
01 |
| 012 |
55567833 |
CONVERTER, W/UP 3WAY CTLTC (W/EXH PIPE) (INCLS 8, 10, 11) (3.685) |
N (LAU, NT7, NU5) |
2010-2010 |
01 |
| 012 |
55567833 |
CONVERTER, W/UP 3WAY CTLTC (W/EXH PIPE) (INCLS 8, 10, 11) |
N (LAU, NT7, NU5) |
2010-2010 |
01 |
| 013 |
12619211 |
SENSOR, HTD OXY (POSN 2) (ACDelco #213-4644) |
N (LAU) |
2010-2010 |
01 |
| 014 |
11588723 |
БОЛТ, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (CTLTC CONV SUPT) |
|
2010-2010 |
01 |
| 015 |
55555775 |
ГАЙКА, CTLTC CONV (3.346)
| N (LAU) |
2010-2010 |
03 |
|
| 016 |
12619211 |
SENSOR, HTD OXY (POSN 1) (ACDelco #213-4644) |
N (LAU) |
2010-2010 |
01 |
| 017 |
11514602 |
ГАЙКА, HEX, M8X1.25, 6.8THK, 13 O.D., 10, ZF (BRK M/CYL H/SHLD) |
|
2010-2010 |
01 |
| 018 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK M/CYL H/SHLD)
|
2010-2010 |
01 |
|
| 019 |
11519964 |
БОЛТ, HFH, M6X1X13, 6 THD, 14.2 OD, 8.8, GMW3359, MAT POINT (BRK M/CYL H/SHLD) |
|
2010-2010 |
01 |
| 020 |
25885389 |
SHIELD, BRK M/CYL HT |
N (LAU, LHD) |
2010-2010 |
01 |
