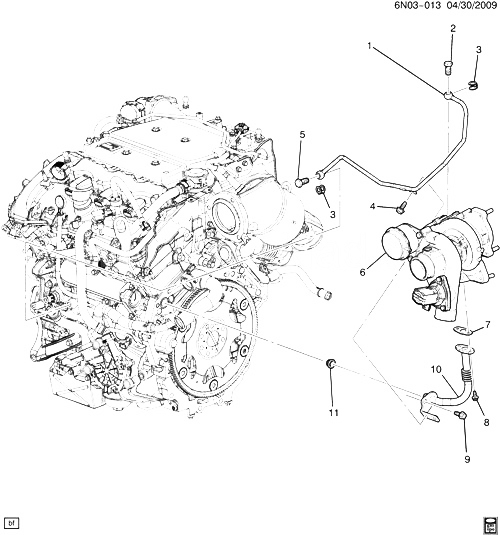

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12634817 |
PIPE, TURBO OIL FEED (INCLS 2, 3, 5) |
N (LAU) |
2010-2010 |
01 |
| 002 |
55570700 |
FITTING, TURBO OIL FEED PIPE (ЧАСТЬ OF 1) |
N (LAU) |
2010-2010 |
01 |
| 003 |
55170000 |
GASKET, TURBO OIL FEED PIPE (ЧАСТЬ OF 1) |
N (LAU) |
2010-2010 |
02 |
| 004 |
11588711 |
БОЛТ, HFH, M6X1X16, 10 THD, 14.2 OD, 8.8 STL, GMW3359 (TURBO OIL FEED PIPE) |
|
2010-2010 |
01 |
| 005 |
55170016 |
FITTING, TURBO OIL FEED PIPE (ЧАСТЬ OF 1) (W/MAT POINT) |
N (LAU) |
2010-2010 |
01 |
| 006 |
12630850 |
ТУРБОКОМПРЕССОР, ENG (СМ. ГРУППУ 03.000 ТУРБОКОМПРЕССОР КРЕПЛЕНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
N (LAU) (NOT YET AVAILABLE) |
2010-2010 |
01 |
| 007 |
12598447 |
GASKET, TURBO OIL RTN PIPE |
N (LAU) |
2010-2010 |
01 |
| 008 |
11588711 |
БОЛТ, HFH, M6X1X16, 10 THD, 14.2 OD, 8.8 STL, GMW3359 (TURBO OIL RTN PIPE) |
|
2010-2010 |
02 |
| 009 |
11588738 |
БОЛТ, HFH, M10X1.5X30.4, 22.5 THD, 22.3 OD, 10.9, GMW3359, M- POINT (TURBO OIL RTN PIPE)
|
2010-2010 |
02 |
|
| 010 |
12791584 |
PIPE, TURBO OIL RTN |
N (LAU) |
2010-2010 |
01 |
| 011 |
12575552 |
SEAL, TURBO OIL RTN PIPE (O RING) |
N (LAU) |
2010-2010 |
01 |
