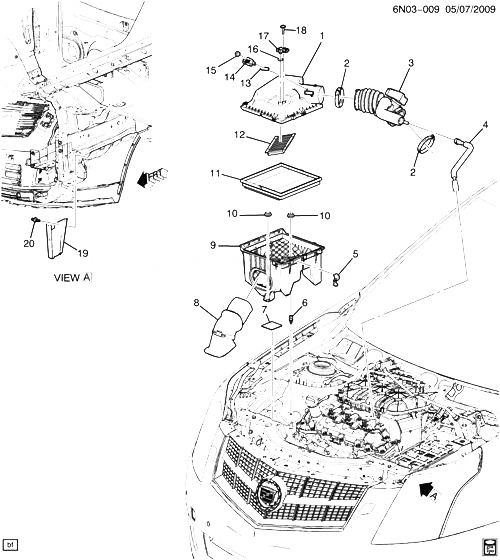

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COVER, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 9) |
|
2010-2010 |
|
| 002 |
|
CЛАМПА, КОНДИЦИОНЕРL OTLT DUCT (ЧАСТЬ OF 3) |
|
2010-2010 |
|
| 003 |
20850108 |
DUCT, КОНДИЦИОНЕРL OTLT (W/RESO) (INCLS 2) |
N (LF1) |
2010-2010 |
01 |
| 004 |
12630821 |
TUBE, PCV (FRESH AIR) |
N (LF1) |
2010-2010 |
01 |
| 005 |
19168954 |
CLIP, КОНДИЦИОНЕРL HSG |
N (LAU, LF1) |
2010-2010 |
04 |
| 006 |
11570295 |
RETAINER, КОНДИЦИОНЕРL (M6X1X28, 10 THD, 17 OD) |
N |
2010-2010 |
03 |
| 007 |
11515174 |
SEAL, INT AIR DUCT (4 1/4 X 7 1/2) (TRIM AS REQD) (12.941) |
N |
2010-2010 |
02 |
| 008 |
15913320 |
DUCT, FRT INT AIR |
N (LAU, LF1) |
2010-2010 |
01 |
| 009 |
15913342 |
CLEANER, AIR (W/MASS AIR FLOW SEN) (INCLS 1, 10-12) |
N (LF1) |
2010-2010 |
01 |
| 010 |
19177871 |
INSULATOR, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 9) (MOUNT TO MID RAIL) |
N (LAU, LF1) |
2010-2010 |
01 |
| 011 |
15913344 |
ELEMENT, КОНДИЦИОНЕРL (ЧАСТЬ OF 9) (ACDelco #A3139C) |
N (LAU, LF1) |
2010-2010 |
01 |
| 012 |
|
ADSORBER, КОНДИЦИОНЕРL EVAP EMIS (ЧАСТЬ OF 9) |
|
2010-2010 |
|
| 013 |
15813321 |
GASKET, MASS AIRFLOW SEN (ЧАСТЬ OF 14) (RECTANGULAR) (GASKET IS POA TO MAF SENSOR) |
N |
2010-2010 |
01 |
| 014 |
15865791 |
SENSOR, MASS AIRFLOW (INCLS 13) (MASS AIRFLOW SENSOR LABELED 5791 LESS GASKET) (ACDelco #213-4222)
| N (LF1) |
2010-2010 |
01 |
|
| 015 |
|
БОЛТ, MASS AIRFLOW SEN |
|
2010-2010 |
|
| 016 |
|
SEAL, THROT POSN SEN |
|
2010-2010 |
|
| 017 |
12591290 |
SENSOR, THROT INL ABSOLUTE PRESS (W/SEAL) (ACDelco #213-3842) |
N (LF1) |
2010-2010 |
01 |
| 018 |
|
БОЛТ, THROT INL ABSOLUTE PRESS SEN |
|
2010-2010 |
|
| 019 |
20807093 |
SHIELD, INT AIR SPH |
N (LF1) |
2010-2010 |
01 |
| 020 |
11589295 |
RETAINER, INT AIR SPH SHLD (PUSH IN) (PUSH PIN RETAINER) (FITS 10.5 HOLE, 3-6.0 THK PNL) (8.950) |
N (LAU, LF1) |
2010-2010 |
02 |
