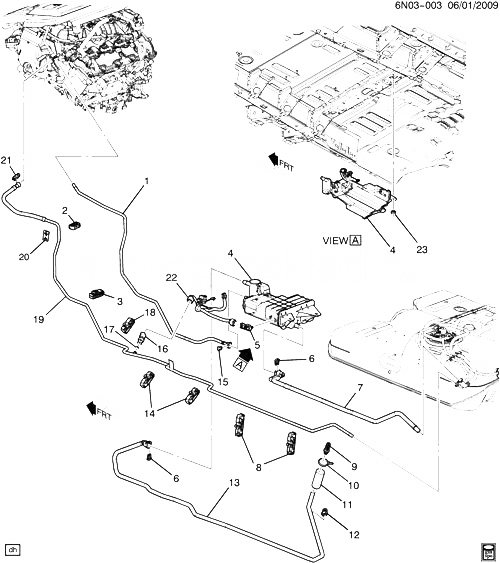

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25945055 |
PIPE, EVAP EMIS FRT (INCLS 15) |
N (LF1) |
2010-2010 |
01 |
| 002 |
25938657 |
CLIP, FUEL FEED EVAP EMIS FRT PIPE |
N (LF1) |
2010-2010 |
01 |
| 003 |
22734194 |
CLIP, BRK FUEL FEED EVAP EMIS PIPE (НИЖНЯЯ ЧАСТЬ) (3.162) |
N |
2010-2010 |
01 |
| 004 |
|
CANISTER, EVAP EMIS (INCLS 5) |
|
2010-2010 |
|
| 004 |
15871537 |
CANISTER, EVAP EMIS (INCLS 5) (ACDelco #215-696) |
N (LAU, LF1, NT7, NU5) |
2010-2010 |
01 |
| 005 |
|
SENSOR, F/TNK PRESS (ЧАСТЬ OF 4) |
|
2010-2010 |
|
| 005 |
13502903 |
SENSOR, F/TNK PRESS (ЧАСТЬ OF 4) (ACDelco #13502903)
| N (LAU, LF1, NT7, NU5) |
2010-2010 |
01 |
|
| 006 |
21992746 |
RETAINER, FUEL FEED HOSE CONN (ЧАСТЬ OF 7, 13) (5/8 INCH QUICK CONNECT RETAINER CLIP) |
N (LAU, LF1) |
2010-2010 |
01 |
| 006 |
22717568 |
RETAINER, FUEL FEED HOSE CONN (ЧАСТЬ OF 7, 13) (3/8 INCH QUICK CONNECT RETAINER CLIP)
| N (LF1) |
2010-2010 |
02 |
|
| 007 |
25945057 |
PIPE, EVAP EMIS RR (INCLS 6) |
N (LAU, LF1) |
2010-2010 |
01 |
| 008 |
25938682 |
CLIP, BRK FUEL FEED EVAP EMIS PIPE (5 WAY) |
N (LF1) |
2010-2010 |
02 |
| 009 |
|
SCREEN, F/TNK FIL PIPE (ЧАСТЬ OF 13) |
|
2010-2010 |
|
| 010 |
|
STRAP, EVAP EMIS HOSE (ЧАСТЬ OF 13) |
|
2010-2010 |
|
| 011 |
|
SLEEVE, EVAP EMIS PIPE (ЧАСТЬ OF 13) |
|
2010-2010 |
|
| 012 |
25938684 |
CLIP, EVAP EMIS CNSTR VENT PIPE |
N (LAU, LF1) |
2010-2010 |
01 |
| 013 |
20852704 |
HOSE, EVAP EMIS CNSTR AIR INL (INCLS 6, 9-11) (ACDelco #215-697) |
N (LAU, LF1) |
2010-2010 |
01 |
| 014 |
25938681 |
CLIP, BRK FUEL FEED EVAP EMIS PIPE |
N (LAU, LF1) |
2010-2010 |
02 |
| 015 |
|
RETAINER, EVAP EMIS FRT PIPE (ЧАСТЬ OF 1) |
|
2010-2010 |
|
| 016 |
13500745 |
SENSOR, FUEL PRESS (FUEL PRESS SENSOR БЛОК LABELED 0745) (3.682) (ACDelco #13500745) |
N (LAU, LF1) |
2010-2010 |
01 |
| 016 |
13500745 |
SENSOR, FUEL PRESS (FUEL PRESS SENSOR БЛОК LABELED 0745) (ACDelco #13500745) |
N (LAU, LF1) |
2010-2010 |
01 |
| 017 |
15778699 |
SEAL, FUEL PRESS SEN (O RING) |
N |
2010-2010 |
01 |
| 018 |
25938683 |
CLIP, BRK FUEL FEED EVAP EMIS PIPE (4 WAY) |
N (LF1) |
2010-2010 |
01 |
| 019 |
25945051 |
PIPE, FUEL FEED (INCLS 20) |
N (LF1) |
2010-2010 |
01 |
| 020 |
|
LABEL, FUEL FEED PIPE WRNG (ЧАСТЬ OF 19) |
|
2010-2010 |
|
| 021 |
22695614 |
CLIP, FUEL FEED PIPE (13 X 19 X 36MM) (ONE TUBE)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 022 |
20838810 |
HARNESS, FUEL SDR WRG (3.115) |
N (LAU, LF1, NE9, NF9) |
2010-2010 |
01 |
| 022 |
20838810 |
HARNESS, FUEL SDR WRG |
N (LAU, LF1, NE9, NF9) |
2010-2010 |
01 |
| 022 |
20838811 |
HARNESS, FUEL SDR WRG (3.115) |
N (LAU, LF1, NT7, NU5) |
2010-2010 |
01 |
| 022 |
20838811 |
HARNESS, FUEL SDR WRG |
N (LAU, LF1, NT7, NU5) |
2010-2010 |
01 |
| 023 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR FLTR BRKT)
|
2010-2010 |
02 |
|
