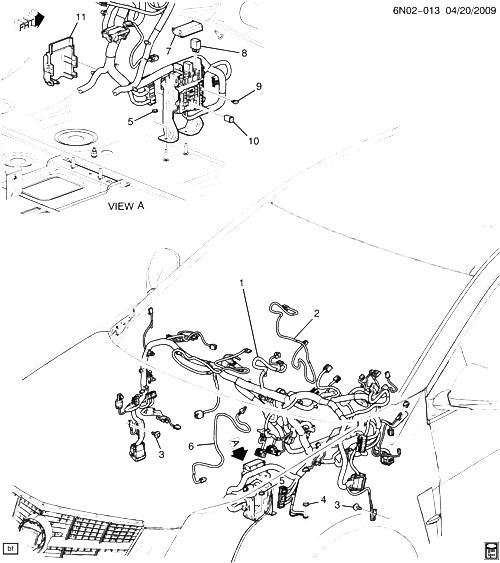

(6N02-013) - 2010 N ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ CADILLAC - SRX 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20850717 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850717) N (CJ2, C99, LHD, UPH, UPJ, UXG, UXY, UYT, UYU, UYW, UYX, U44) 2010-2010 01
001 20850719 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850719) N (CJ4, C99, LHD, UPH, UPJ, UXG, UXY, UYT, UYU, UYW, UYX, U44) 2010-2010 01
001 20850721 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850721) N (CJ2, C99, LHD, UV8, UXY, U44) 2010-2010 01
001 20850723 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850723) N (CJ4, C99, LHD, UV8, UXY, U44) 2010-2010 01
001 20850725 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850725) N (CJ2, UYS, UYY) 2010-2010 01
001 20850727 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850727) N (CJ4, UYS, UYY) 2010-2010 01
001 20850729 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850729) N (CJ2, UYZ) 2010-2010 01
001 20850731 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850731) N (CJ4, UYZ) 2010-2010 01
001 20850732 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850732) N (CJ4, UYE) 2010-2010 01
001 20850734 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850734) N (CJ2, EAM) (EXC C3U) 2010-2010 01
001 20850734 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850734) N (CJ2, UYE) 2010-2010 01
001 20850736 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850736) N (CJ4, C99, LHD, UV8, UYI) 2010-2010 01
001 20850738 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, C99, LHD, UV8, UYI) (EXC JF4) 2010-2010 01
001 20850739 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850739) N (CJ4, C99, LHD, UPH, UPJ, UYI, UYK) 2010-2010 01
001 20850741 HARNESS, I/P WRG (INCLS 2, 6-11) (LABELED 20850741) N (CJ2, C99, LHD, UPH, UPJ, UYI, UYK) 2010-2010 01
001 20850744 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, C99, JF4, LHD, UV8, UYI) 2010-2010 01
001 20894178 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, C99, LHD, UPH, UPJ, UXG, UXY, UYU, UYX, U44) (EXC JF4) 2010-2010 01
001 20894179 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, C99, JF4, LHD, UPH, UPJ, UXG, UXY, UYT, UYU, UYX, U44) 2010-2010 01
001 20894180 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, C99, LHD, UPH, UPJ, UXG, UXY, UYU, UYX, U44) (EXC JF4) 2010-2010 01
001 20894181 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, C99, JF4, LHD, UPH, UPJ, UXG, UXY, UYT, UYU, UYX, U44) 2010-2010 01
001 20894182 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, C99, LHD, UV8, UXY, U44) (EXC JF4) 2010-2010 01
001 20894183 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, C99, JF4, LHD, UV8, UXY, U44) 2010-2010 01
001 20894184 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, C99, LHD, UV8, UXY, U44) (EXC JF4) 2010-2010 01
001 20894185 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, C99, JF4, LHD, UV8, UXY, U44) 2010-2010 01
001 20894186 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, UE1, UYS, UYY) (EXC JF4) 2010-2010 01
001 20894187 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, JF4, UE1, UYS, UYY) 2010-2010 01
001 20894188 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, UE1, UYS, UYY) (EXC JF4) 2010-2010 01
001 20894189 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, JF4, UE1, UYS, UYY) 2010-2010 01
001 20894190 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, UE1, UYZ) (EXC JF4) 2010-2010 01
001 20894191 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, JF4, UE1, UYZ) 2010-2010 01
001 20894192 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, UE1, UYZ) (EXC JF4) 2010-2010 01
001 20894193 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, JF4, UE1, UYZ) 2010-2010 01
001 20894194 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, JF4, UE1, UYE) 2010-2010 01
001 20894195 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, UE1, UYE) (EXC JF4) 2010-2010 01
001 20894196 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, JF4, UE1, UYE) 2010-2010 01
001 20894197 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, C3U, UE1, UYE) (EXC JF4) 2010-2010 01
001 20894197 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, EAL, UE1, UYE) (EXC C3U, JF4) 2010-2010 01
001 20894198 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, C99, JF4, LHD, UV8, UYI) 2010-2010 01
001 20894199 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, C99, LHD, UV8, UYI) (EXC JF4) 2010-2010 01
001 20894200 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, C99, LHD, UV8, UYI) (EXC JF4) 2010-2010 01
001 20894201 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, C99, JF4, LHD, UPH, UPJ, UYI, UYK) 2010-2010 01
001 20894202 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ4, C99, LHD, UPH, UPJ, UYI) (EXC JF4) 2010-2010 01
001 20894203 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, C99, JF4, LHD, UPH, UPJ, UYI, UYK) 2010-2010 01
001 20894204 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, C99, LHD, UPH, UPJ, UYI) (EXC JF4) 2010-2010 01
001 20894205 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, C99, JF4, LHD, UV8, UYI) 2010-2010 01
001 20894206 HARNESS, I/P WRG (INCLS 2, 6-11) N (CJ2, EAM, UE1, UYE) (EXC C3U, JF4) 2010-2010 01
002 20811268 CABLE, DIGITAL VIDEO ANT (I/P) (ЧАСТЬ OF 1) N 2010-2010 01
003 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (I/P WRG HARN GND) 2010-2010 02
004 11609767 ГАЙКА, RDO ANT РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ (M6 X 1) (13.090) N 2010-2010 05
005 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (I/P WRG HARN BRKT) 2010-2010 03
006 20781770 CABLE, AUDIO VIDEO MDL (I/P) (ЧАСТЬ OF 1) (ACDelco #20781770) N 2010-2010 01
006 20811269 CABLE, AUDIO VIDEO MDL (I/P) (ЧАСТЬ OF 1) N 2010-2010 01
007 20781892 COVER, FUSE BLK (ЧАСТЬ OF 1) N (NOT YET AVAILABLE) 2010-2010 01
008 RELAY, MULTIUSE (ЧАСТЬ OF 1) 2010-2010
008 RELAY, ACSRY AC DC PWR CONT MDL (ЧАСТЬ OF 1) 2010-2010
009 FUSE, MINI 10 A (ЧАСТЬ OF 1) 2010-2010
009 FUSE, MINI 15 A (ЧАСТЬ OF 1) 2010-2010
009 FUSE, MINI 2 A (ЧАСТЬ OF 1) 2010-2010
009 FUSE, MINI 20 A (ЧАСТЬ OF 1) 2010-2010
009 FUSE, MINI 25 A (ЧАСТЬ OF 1) 2010-2010
009 FUSE, MINI 30 A (ЧАСТЬ OF 1) 2010-2010
009 FUSE, MINI 7.5 A (ЧАСТЬ OF 1) 2010-2010
009 FUSE, 5 A (ЧАСТЬ OF 1) 2010-2010
010 FUSE, ECM WRG HARN (ЧАСТЬ OF 1) 2010-2010
010 FUSE, КОНДИЦИОНЕР CMPR (ЧАСТЬ OF 1) 2010-2010
011 20781773 BLOCK, I/P WRG HARN JUNC (ЧАСТЬ OF 1) N (NOT YET AVAILABLE) 2010-2010 01
