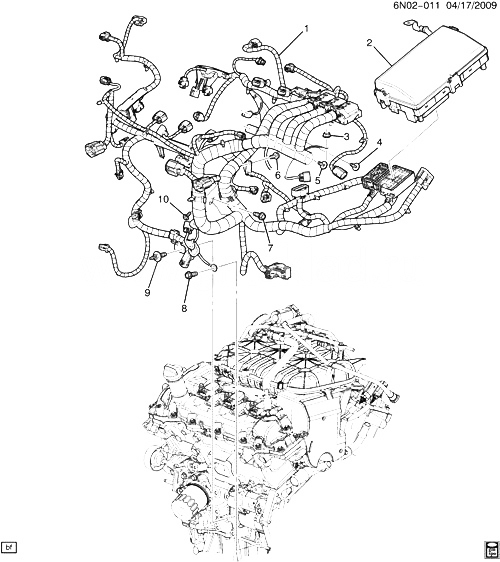

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20837968 |
HARNESS, ENG WRG |
N (LF1) |
2010-2010 |
01 |
| 002 |
|
BLOCK, ENG WRG HARN JUNC (СМ. ГРУППУ 02.000 РЕЛЕ/ДВИГАТЕЛЬНЫЙ ОТСЕК FOR DETAIELD ILLUSTRATED VIEW) |
|
2010-2010 |
|
| 003 |
11609716 |
NUT-HFH, M6X1X5.85, 14.2 OD, 9 STL, GMW3200 (ENG WRG HARN BAT LEAD) |
|
2010-2010 |
01 |
| 004 |
11609669 |
БОЛТ, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (ENG WRG HARN GND)
|
2010-2010 |
01 |
|
| 005 |
11609669 |
БОЛТ, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (ENG WRG HARN BRKT)
|
2010-2010 |
01 |
|
| 006 |
11588564 |
БОЛТ, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (ENG WRG HARN BRKT) |
|
2010-2010 |
01 |
| 007 |
11562004 |
БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (ENG WRG HARN ECM GND) |
|
2010-2010 |
01 |
| 008 |
11562004 |
БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (ENG WRG HARN GND) |
|
2010-2010 |
01 |
| 009 |
11570985 |
БОЛТ, ENG WRG HARN |
N (LF1) |
2010-2010 |
01 |
| 010 |
11609669 |
БОЛТ, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (ENG WRG HARN CLIP BRKT)
|
2010-2010 |
01 |
|
