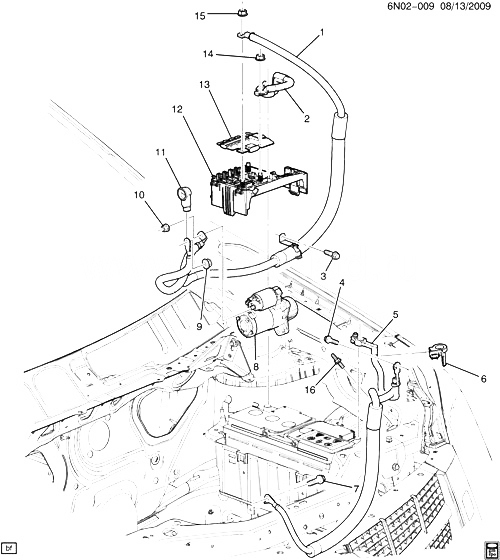

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20869722 |
CABLE, AUX BAT POS (*KIT1) |
N (LF1) |
2010-2010 |
01 |
| 002 |
13293804 |
WIRE, BAT (ЧАСТЬ OF 12) |
N (LAU, LF1) (NOT YET AVAILABLE) |
2010-2010 |
01 |
| 003 |
11562004 |
БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT POS CBL BRKT) |
|
2010-2010 |
01 |
| 004 |
11570961 |
БОЛТ, HEX HD W/FL WA, M8X1.25X25, 13 THD, 18.5 OD, GMW15170 STEEL, GMW320 (BAT NEG CBL GND) |
|
2010-2010 |
01 |
| 005 |
20869721 |
CABLE, AUX BAT NEG (*KIT1) (ACDelco #20869721) |
N (LF1) |
2010-2010 |
01 |
| 006 |
|
SENSOR, BAT CUR (*KIT1) |
|
2010-2010 |
|
| 007 |
11562004 |
БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT NEG CBL) |
|
2010-2010 |
01 |
| 008 |
12601721 |
STARTER, (ACDelco #12601721)
| N (LF1) |
2010-2010 |
01 |
|
| 009 |
11609789 |
ГАЙКА, BAT POS CBL (AT GEN) (8.915)
| N |
2010-2010 |
01 |
|
| 010 |
11610091 |
ГАЙКА, HFH, 8X1.25, 17.9 OD, 7.8 THK, 13MM HEX, 10, GMW3200 (BAT POS CBL (AT STRTR)) |
|
2010-2010 |
01 |
| 011 |
|
COVER, GEN WIRE TERM (*KIT1) |
|
2010-2010 |
|
| 012 |
15930594 |
BLOCK, F/CMPT FUSE (INCLS 2, 13, 14) |
N (LAU, LF1) |
2010-2010 |
01 |
| 013 |
20815889 |
FUSE, F/CMPT FUSE BLK (ЧАСТЬ OF 12) |
N (LAU, LF1) |
2010-2010 |
01 |
| 014 |
11516076 |
ГАЙКА, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (ЧАСТЬ OF 12)
|
2010-2010 |
01 |
|
| 015 |
11610091 |
ГАЙКА, HFH, 8X1.25, 17.9 OD, 7.8 THK, 13MM HEX, 10, GMW3200 (BAT POS CBL J/BLK CONN) |
|
2010-2010 |
01 |
| 016 |
11571124 |
БОЛТ, BAT NEG CBL GND |
N |
2010-2010 |
01 |
| K01 |
20869720 |
CABLE, BAT POS NEG (INCLS 1, 5, 6, 11) (2.342) (ACDelco #20869720) |
N (LF1) |
2010-2010 |
01 |
| K01 |
20869720 |
CABLE, BAT POS NEG (INCLS 1, 5, 6, 11) (ACDelco #20869720) |
N (LF1) |
2010-2010 |
01 |
