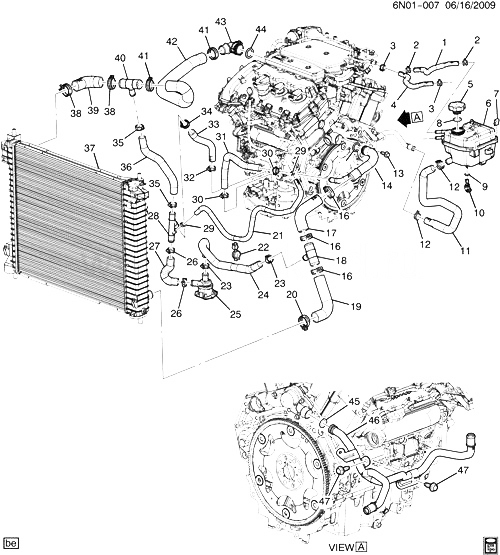

(6N01-007) - 2010 N ШЛАНГИ И ТРУБКИ/РАДИАТОР (LAU/2.8-4) CADILLAC - SRX 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20795782 HOSE, RAD SURGE TK ENG N (LAU) (NOT YET AVAILABLE) 2010-2010 01
002 90572594 CЛАМПА, RAD SURGE TK OTLT HOSE (GRAY) (D=27) (8.846) N (LAU) 2010-2010 02
003 11517126 CЛАМПА, ПРУЖИНА BAND, TYPE A (RAD SURGE TK INL HOSE) 2010-2010 02
004 20795774 HOSE, RAD SURGE TK INL N (LAU) 2010-2010 01
005 13502353 CAP, RAD SURGE TK (INCLS 8) N 2010-2010 01
006 25937588 TANK, RAD SURGE N (LAU) 2010-2010 01
007 90233545 CLIP, RAD SURGE TK N 2010-2010 01
008 SEAL, RAD SURGE TK CAP (ЧАСТЬ OF 5) 2010-2010
009 SEAL, ENG COOL LVL IND MDL (ЧАСТЬ OF 10) 2010-2010
010 13271444 МОДУЛЬ, ENG COOL LVL IND (INCLS 9) (ACDelco #13271444) N (LAU, LF1, T89) (EXPORT) 2010-2010 01
011 20795785 HOSE, RAD SURGE TK OTLT N (LAU) 2010-2010 01
012 90572594 CЛАМПА, RAD SURGE TK OTLT HOSE (GRAY) (D=27) (8.846) N (LAU) 2010-2010 02
013 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (RAD OTLT PIPE) 2010-2010 01
014 12603276 PIPE, RAD OTLT (INCLS 15) N (LAU) 2010-2010 01
015 12623519 SEAL, RAD OTLT PIPE (O RING) (ЧАСТЬ OF 14) N (LAU) 2010-2010 01
016 CЛАМПА, RAD OTLT HOSE 2010-2010
017 20795749 HOSE, RAD OTLT RR N (LAU) 2010-2010 01
018 22728074 TEE, RAD OTLT HOSE N (LAU) 2010-2010 01
019 20795743 HOSE, RAD OTLT FRT N (LAU) 2010-2010 01
020 CЛАМПА, RAD OTLT HOSE 2010-2010
021 25790647 HOSE, AUX W/PMP OTLT (INCLS 29) N (LAU) 2010-2010 01
022 CLIP, AUX W/PMP OTLT HOSE 2010-2010
023 11516226 CЛАМПА, HOSE, ПРУЖИНА BAND, TYPE A, 25.2MM CLOSED DIA, 29MM OPEN DIA, 27MM NOMINAL SIZE (ЧАСТЬ OF 24) 2010-2010 02
024 20795510 HOSE, AUX W/PMP INL (INCLS 23) N (LAU) (NOT YET AVAILABLE) 2010-2010 01
025 25956694 PUMP, AUX WAT N (LAU) 2010-2010 01
026 11516226 CЛАМПА, HOSE, ПРУЖИНА BAND, TYPE A, 25.2MM CLOSED DIA, 29MM OPEN DIA, 27MM NOMINAL SIZE (ЧАСТЬ OF 27) 2010-2010 02
027 20795114 HOSE, AUX W/PMP OTLT (INCLS 26) N (LAU) 2010-2010 01
028 25956695 CONNECTOR, W/PMP OTLT HOSE N (LAU) 2010-2010 01
029 11516226 CЛАМПА, AUX W/PMP INL HOSE (ЧАСТЬ OF 21) (27 MM) (8.948) N (LAU) 2010-2010 02
030 11570871 CЛАМПА, ПРУЖИНАBAND, 23MM NOMINAL DIA, 12MM WIDTH, STEEL, GRAY ROBO. (ENG OIL CLR OTLT HOSE) 2010-2010 02
031 55353821 HOSE, ENG OIL CLR OTLT N (LAU) 2010-2010 01
032 11516226 CЛАМПА, HOSE, ПРУЖИНА BAND, TYPE A, 25.2MM CLOSED DIA, 29MM OPEN DIA, 27MM NOMINAL SIZE (ENG OIL CLR INL HOSE) 2010-2010 01
033 55568908 HOSE, ENG OIL CLR (INCLS 34) N (LAU) (NOT YET AVAILABLE) 2010-2010 01
034 11570871 CЛАМПА, ПРУЖИНАBAND, 23MM NOMINAL DIA, 12MM WIDTH, STEEL, GRAY ROBO. (ЧАСТЬ OF 33) 2010-2010 01
035 90530642 CЛАМПА, AUX W/PMP OTLT HOSE (ЧАСТЬ OF 36) (D=14) (3.337) N (LAU) 2010-2010 02
036 20795114 HOSE, W/PMP OTLT (INCLS 35) (1.097) N (LAU) (NOT YET AVAILABLE) 2010-2010 01
037 20818746 РАДИАТОР, (СМ. ГРУППУ 01.000 РАДИАТОР ASM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (ACDelco #21763) N (LAU) 2010-2010 01
038 CЛАМПА, RAD INL HOSE 2010-2010
039 20795712 HOSE, RAD INL FRT N (LAU) 2010-2010 01
040 22728074 TEE, RAD INL HOSE N (LAU) 2010-2010 01
041 CЛАМПА, RAD INL HOSE 2010-2010
042 20795713 HOSE, RAD INL RR N (LAU) (NOT YET AVAILABLE) 2010-2010 01
043 20795714 CONNECTOR, RAD INL HOSE N (LAU) (NOT YET AVAILABLE) 2010-2010 01
044 SEAL, RAD INL PIPE (O RING) 2010-2010
045 12588318 SEAL, HTR OTLT PIPE (O RING) (ЧАСТЬ OF 46) N (LAU) 2010-2010 01
046 55563352 PIPE, HTR OTLT (INCLS 45) N (LAU) 2010-2010 01
047 11588738 БОЛТ, HFH, M10X1.5X30.4, 22.5 THD, 22.3 OD, 10.9, GMW3359, M- POINT (HTR OTLT PIPE) 2010-2010 02
