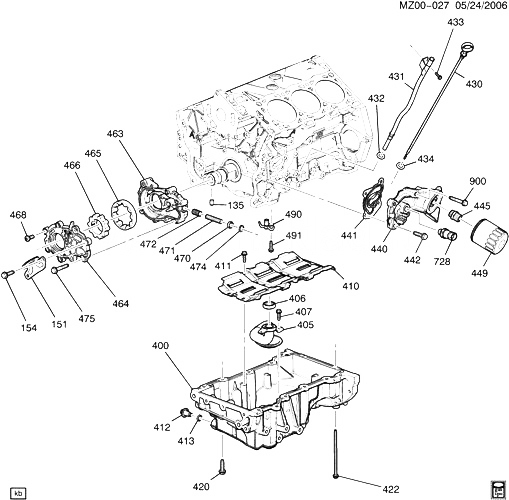

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 135 |
22531637 |
PIN, МАСЛЯНЫЙ ПОДДОН LOC (8MM DIA, 12MM LONG) (DOWEL) (0.413)
| N (LAU, LF1) |
2010-2010 |
02 |
|
| 151 |
12586959 |
GUIDE, TMG CHAIN (ЧАСТЬ OF 463) (2 КРЕПЛЕНИЕ HOLES) (LOWER PRIMARY)
| N (LF1) |
2010-2010 |
01 |
|
| 154 |
11588725 |
БОЛТ, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (ЧАСТЬ OF 463)
|
2010-2010 |
02 |
|
| 400 |
12609875 |
PAN, OIL (INCLS 405, 406, 410-413, 420, 422) |
N (LF1) |
2010-2010 |
01 |
| 405 |
12571134 |
PIPE, O/PMP SUC (ЧАСТЬ OF 400) |
N (LF1) |
2010-2010 |
01 |
| 406 |
12566837 |
SEAL, O/PMP SUC PIPE (ЧАСТЬ OF 400)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 407 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (O/PMP SUC PIPE) |
|
2010-2010 |
02 |
| 410 |
12566872 |
DEFLECTOR, CR/SHF OIL (ЧАСТЬ OF 400) |
N (LF1) |
2010-2010 |
01 |
| 411 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (ЧАСТЬ OF 400) |
|
2010-2010 |
08 |
| 412 |
11562588 |
PLUG, МАСЛЯНЫЙ ПОДДОН DRN (ЧАСТЬ OF 400) (INCLS 413) (W/ SEAL) (EXC MAGNET)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 413 |
12616850 |
SEAL, МАСЛЯНЫЙ ПОДДОН DRN PLUG (O RING) (ЧАСТЬ OF 400, 412) |
N (LAU, LF1) |
2010-2010 |
01 |
| 420 |
11588725 |
БОЛТ, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (ЧАСТЬ OF 400)
|
2010-2010 |
11 |
|
| 422 |
11588424 |
БОЛТ, HFH, M6X1X145, 18 THD, 14.2 O.D., 8.8, GMW3359 (ЧАСТЬ OF 400)
|
2010-2010 |
02 |
|
| 430 |
12632896 |
INDICATOR, OIL LVL (INCLS 434) |
N (LF1) |
2010-2010 |
01 |
| 431 |
12613061 |
TUBE, OIL LVL IND (INCLS 432) |
N (LF1) |
2010-2010 |
01 |
| 432 |
|
SEAL, OIL LVL IND TUBE (O RING) (ЧАСТЬ OF 431) |
|
2010-2010 |
|
| 433 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (OIL LVL IND TUBE) |
|
2010-2010 |
01 |
| 434 |
24504091 |
SEAL, OIL LVL IND (O RING) (ЧАСТЬ OF 430) (BLACK) (6.07MM ID, 1.78MM DIA) |
N (LAU, LF1) |
2010-2010 |
02 |
| 440 |
12589104 |
ADAPTER, OIL FLTR (W/BYPASS VLV) (INCLS 441, 442, 445, 449, 728, 900) |
N (LF1) |
2010-2010 |
01 |
| 441 |
12591604 |
GASKET, OIL FLTR (ЧАСТЬ OF 440) (BETWEEN OIL FILTER ADAPTER AND BLOCK)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 442 |
11519980 |
БОЛТ, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (ЧАСТЬ OF 440) |
|
2010-2010 |
03 |
| 445 |
12600225 |
FITTING, OIL FLTR (ЧАСТЬ OF 440) |
N (LF1) |
2010-2010 |
01 |
| 449 |
89017524 |
ФИЛЬТР, МАСЛЯНЫЙ (ЧАСТЬ OF 440) (ACDelco #PF48)
| N (LF1) |
2010-2010 |
01 |
|
| 463 |
12590152 |
PUMP, OIL (INCLS 151, 154, 464-466, 468, 470-472, 474, 475) (INCLS GUIDE, БОЛТS)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 464 |
|
COVER, O/PMP (ЧАСТЬ OF 463) |
|
2010-2010 |
|
| 465 |
|
GEAR, O/PMP DRV DRVN (ЧАСТЬ OF 463) |
|
2010-2010 |
|
| 466 |
|
GEAR, O/PMP DRV (INNER) (ЧАСТЬ OF 463) |
|
2010-2010 |
|
| 468 |
|
БОЛТ, O/PMP CVR (ЧАСТЬ OF 463) |
|
2010-2010 |
|
| 470 |
|
PLUG, OIL PRESS RLF VLV BORE (ЧАСТЬ OF 463) |
|
2010-2010 |
|
| 471 |
|
ПРУЖИНА, OIL PRESS RLF VLV (ЧАСТЬ OF 463) |
|
2010-2010 |
|
| 472 |
|
VALVE, OIL PRESS RLF (ЧАСТЬ OF 463) |
|
2010-2010 |
|
| 474 |
|
RETAINER, OIL PRESS RLF VLV SPR (ЧАСТЬ OF 463) |
|
2010-2010 |
|
| 475 |
11900371 |
БОЛТ, HEX HD, W/1.6 FLAT WA, M8X1.25X54.3, 43 THD, 16O.D., 8.8, GMW3359 (ЧАСТЬ OF 463) |
|
2010-2010 |
03 |
| 490 |
12610143 |
NOZZLE, PSTN OIL |
N (LAU, LF1) |
2010-2010 |
03 |
| 491 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PSTN OIL NOZ) |
|
2010-2010 |
03 |
| 728 |
12611588 |
SWITCH, ENG OIL PRESS (ЧАСТЬ OF 440) (ACDelco #D1843A) |
N (LF1) |
2010-2010 |
01 |
| 900 |
11518631 |
БОЛТ, HFH, M10X1.5X65, 26 THD, 22.3 OD, 10.9 STL, GMW3359 (ЧАСТЬ OF 440) |
|
2010-2010 |
01 |
