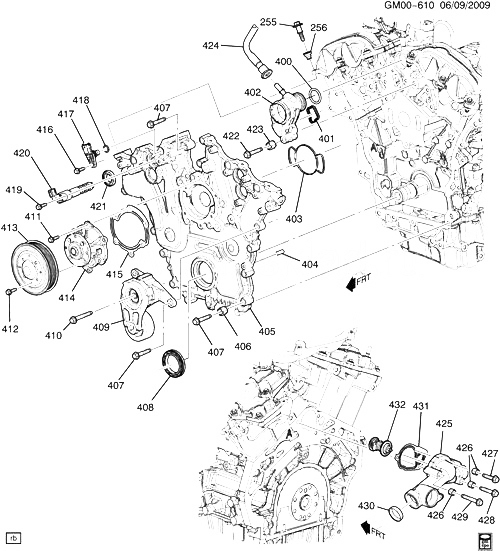

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 255 |
11570020 |
БОЛТ, CM/SHF CVR (INCLS 256) |
N (LAU) |
2010-2010 |
26 |
| 256 |
12595122 |
INSULATOR, CM/SHF CVR БОЛТ (ЧАСТЬ OF 255) |
N (LAU) |
2010-2010 |
26 |
| 400 |
12584040 |
SEAL, CLNT OTLT (O RING) (ЧАСТЬ OF 402) (ACDelco #15-32584)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 401 |
12566429 |
SEAL, WAT OTLT (ЧАСТЬ OF 402)
| N (LAU) |
2010-2010 |
01 |
|
| 402 |
12623051 |
OUTLET, WAT (INCLS 400, 401, 422, 423) (ACDelco #15-11053) |
N (LAU, LF1) |
2010-2010 |
01 |
| 403 |
12593045 |
SEAL, W/PMP (ЧАСТЬ OF 405)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 404 |
22531637 |
PIN, ENG FRT CVR LOC (ЧАСТЬ OF 405) (8MM DIA, 12MM LONG) (DOWEL) (0.413)
| N (LAU, LF1) |
2010-2010 |
02 |
|
| 405 |
12623400 |
COVER, ENG FRT (W/ W/PMP) (INCLS 403, 404, 406-411, 414-418, 421) |
N (LAU) |
2010-2010 |
01 |
| 406 |
|
RETAINER, ENG FRT CVR БОЛТ (ЧАСТЬ OF 405) |
|
2010-2010 |
|
| 407 |
11519171 |
БОЛТ, ENG FRT CVR (ЧАСТЬ OF 405) (M8X1.25X50) (3.275)
| N (LAU, LF1) |
2010-2010 |
22 |
|
| 408 |
12608750 |
SEAL, CR/SHF FRT OIL (ЧАСТЬ OF 405)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 409 |
12575509 |
РОЛИК НАТЯЖИТЕЛЬ, DRV BELT (ЧАСТЬ OF 405)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 410 |
11588730 |
БОЛТ, HFH, FULL BODY, 22THD, 18 OD, 8.8, GMW3359.M-PT. (ЧАСТЬ OF 405) (ACDelco #11588730) |
|
2010-2010 |
01 |
| 411 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (ЧАСТЬ OF 405) |
|
2010-2010 |
06 |
| 412 |
11588940 |
БОЛТ, HEX HD, W/CON SPR WA, M6X1X14.55, 8.45 THD, 13.3O.D., 8.8.GMW3359 (W/PMP PUL) |
|
2010-2010 |
04 |
| 413 |
12611587 |
PULLEY, W/PMP |
N (LAU, LF1) |
2010-2010 |
01 |
| 414 |
12618472 |
PUMP, WAT (W/GSKT) (ЧАСТЬ OF 405) (ACDelco #251-724)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 415 |
12576326 |
GASKET, W/PMP (ЧАСТЬ OF 405) (ACDelco #251-2048)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 416 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (ЧАСТЬ OF 405) |
|
2010-2010 |
04 |
| 417 |
12615371 |
SENSOR, CM/SHF POSN (INCLS 418) (ЧАСТЬ OF 405) (ACDelco #213-4592) |
N (LAU, LF1) |
2010-2010 |
01 |
| 418 |
|
WASHER, CM/SHF POSN SEN (ЧАСТЬ OF 405, 417) |
|
2010-2010 |
|
| 419 |
11588279 |
БОЛТ, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN ACTR) |
|
2010-2010 |
04 |
| 420 |
12615613 |
VALVE, CM/SHF POSN ACTR SOL |
N (LAU, LF1) |
2010-2010 |
04 |
| 421 |
12593717 |
SEAL, CM/SHF POSN ACTR SOL VLV (O RING) (ЧАСТЬ OF 405) |
N (LAU, LF1) |
2010-2010 |
04 |
| 422 |
11588718 |
БОЛТ, WAT OTLT (ЧАСТЬ OF 402) (HFH, M6X1X50, 18 THD) (0.206) |
N (LAU, LF1) |
2010-2010 |
02 |
| 423 |
12570372 |
RETAINER, WAT OTLT (ЧАСТЬ OF 402) |
N (LAU, LF1) |
2010-2010 |
02 |
| 424 |
55564183 |
PIPE, ENG COOL AIR BL (СМ. ГРУППУ 01.000 ШЛАНГИ И ТРУБКИ/РАДИАТОР ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
N (LAU) |
2010-2010 |
01 |
| 425 |
12608657 |
ШЛАНГИ, ENG COOL THERM (INCLS 426-432) (ACDelco #15-81653) |
N (LAU) |
2010-2010 |
01 |
| 426 |
11518792 |
RETAINER, ENG COOL THERM (ЧАСТЬ OF 425) (FOR M6 БОЛТ, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) |
N (LAU) |
2010-2010 |
03 |
| 427 |
11588714 |
БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (ЧАСТЬ OF 425)
|
2010-2010 |
01 |
|
| 428 |
11519972 |
БОЛТ, ENG COOL THERM HSG (ЧАСТЬ OF 425) (M6X1.0X50) (3.336) |
N (LAU) |
2010-2010 |
01 |
| 429 |
11519973 |
БОЛТ, ENG COOL THERM HSG (ЧАСТЬ OF 425) (M6X1.0X60) (8.900)
| N (LAU) |
2010-2010 |
01 |
|
| 430 |
|
PLUG, ENG COOL THERM HSG (ЧАСТЬ OF 425) |
|
2010-2010 |
|
| 431 |
12592527 |
GASKET, ENG COOL THERM HSG (ЧАСТЬ OF 425) (ACDelco #12592527)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 432 |
|
THERMOSTAT, ENG COOL (ЧАСТЬ OF 425) |
|
2010-2010 |
|
