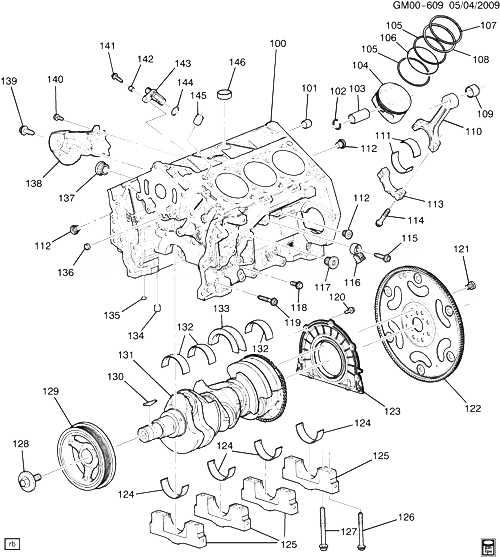

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 100 |
|
BLOCK, ENG (MCHG) |
|
2010-2010 |
|
| 101 |
12597210 |
PIN, TRANS LOC |
N (LAU, LF1) |
2010-2010 |
02 |
| 102 |
12566186 |
RETAINER, PSTN PIN (ЧАСТЬ OF 104) |
N (LAU, LF1) |
2010-2010 |
02 |
| 103 |
|
PIN, PSTN (ЧАСТЬ OF 104) |
|
2010-2010 |
|
| 104 |
92068444 |
PISTON, (W/PIN) (INCLS 102, 103) (STD) |
N (LAU) |
2010-2010 |
06 |
| 104 |
92068445 |
PISTON, (W/PIN) (INCLS 102, 103) (.25MM O.S.) |
N (LAU) |
2010-2010 |
06 |
| 105 |
|
RAIL, PSTN OIL RING (*KIT4) |
|
2010-2010 |
|
| 106 |
|
SPACER, PSTN OIL RING RL (*KIT4) |
|
2010-2010 |
|
| 107 |
|
RING, PSTN CMPRN UPR (*KIT4) |
|
2010-2010 |
|
| 108 |
|
RING, PSTN CMPRN LWR (*KIT4) |
|
2010-2010 |
|
| 109 |
|
BUSHING, CONN ROD (ЧАСТЬ OF 110) |
|
2010-2010 |
|
| 110 |
12608427 |
ROD, CONN (INCLS 109, 113, 114)
| N (LAU) |
2010-2010 |
06 |
|
| 111 |
|
BEARING, CONN ROD (*KIT3) |
|
2010-2010 |
|
| 112 |
11561583 |
PLUG, ENG BLK OIL GAL (M14X1.5X16, 22 OD) (0.253) |
N (LAU) |
2010-2010 |
03 |
| 113 |
|
CAP, CONN ROD (ЧАСТЬ OF 110) |
|
2010-2010 |
|
| 114 |
11519680 |
БОЛТ, CONN ROD (ЧАСТЬ OF 110) (M9X1X53)
| N (LAU, LF1) |
2010-2010 |
12 |
|
| 115 |
11589313 |
БОЛТ, HFH, M8X1.25X39, 29 THD, 18 OD, 8.8 STL, GMW3359, M-PT. (ЧАСТЬ OF 116) |
|
2010-2010 |
01 |
| 116 |
12605738 |
SENSOR, KNOCK (INCLS 115) (ACDelco #213-4404) |
N (LAU, LF1) |
2010-2010 |
02 |
| 117 |
11561751 |
PLUG, ENG BLK OIL GAL (M20X1.5X30.5) |
N (LAU) |
2010-2010 |
01 |
| 118 |
11609410 |
БОЛТ, HFH, M8X1.25X25, 10.9, GMW3179 (CR/SHF BRG CAP) (0.056)
|
2010-2010 |
04 |
|
| 119 |
11589000 |
БОЛТ, HFH, M8X1.25X50, 24 THD, 18 OD, 10.9, GMW3359, RED BODY, W/ADH (CR/SHF BRG CAP) |
|
2010-2010 |
04 |
| 120 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CR/SHF RR OIL SEAL RET) |
|
2010-2010 |
05 |
| 121 |
11518862 |
БОЛТ, HEX, W/ADH, M10X1X15.5, 10.9, HDR-PT (A/TRNS FLEX PLT)
|
2010-2010 |
08 |
|
| 122 |
12606654 |
PLATE, A/TRNS FLEX |
N (LAU) |
2010-2010 |
01 |
| 123 |
12620955 |
SEAL, CR/SHF RR OIL
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 124 |
|
BEARING, CR/SHF LWR (*KIT1, KIT2) |
|
2010-2010 |
|
| 125 |
|
CAP, CR/SHF BRG |
|
2010-2010 |
|
| 126 |
11518861 |
БОЛТ, HFH, W/REDCD BODY, M8X1.25X90, 26 THD, 18 O.D., 10.9, GM4277M (CR/SHF BRG CAP)
|
2010-2010 |
08 |
|
| 127 |
12560272 |
БОЛТ, CR/SHF BRG CAP (M10X2X102.5, 24.5)
| N (LAU) |
2010-2010 |
08 |
|
| 128 |
11569873 |
БОЛТ, CR/SHF BALR (M14X1.5X48.4) |
N (LAU, LF1) |
2010-2010 |
01 |
| 129 |
12626355 |
BALANCER, CR/SHF (SINGLE BELT) |
N (LAU, LF1) |
2010-2010 |
01 |
| 130 |
12601937 |
KEY, CR/SHF BALR |
N (LAU, LF1) |
2010-2010 |
01 |
| 131 |
12621350 |
CRANKSHAFT, |
N (LAU) |
2010-2010 |
01 |
| 132 |
|
BEARING, CR/SHF UPR (*KIT1) |
|
2010-2010 |
|
| 133 |
|
BEARING, CR/SHF THR (*KIT2) |
|
2010-2010 |
|
| 134 |
22531637 |
PIN, МАСЛЯНЫЙ ПОДДОН LOC (8MM DIA, 12MM LONG) (DOWEL) (0.413)
| N (LAU, LF1) |
2010-2010 |
02 |
|
| 135 |
12557520 |
PLUG, ENG BLK OIL GAL (CUP-.390IN OD, .040IN THK, STEEL) |
N (LAU) |
2010-2010 |
01 |
| 136 |
11562127 |
PLUG, CYL HD OIL GAL (CUP-14.22 OD, 6.6 THK, 304SS) |
N (LAU) |
2010-2010 |
01 |
| 137 |
11588442 |
PLUG, HEX, W/THD SEAL, M28X1.25X13, 10.9, GMW3044 (ENG COOL HTR HOLE) (8.971) |
|
2010-2010 |
01 |
| 138 |
12590208 |
SHIELD, EXH MANIF LWR HT |
N (LAU) |
2010-2010 |
01 |
| 139 |
11588738 |
БОЛТ, HFH, M10X1.5X30.4, 22.5 THD, 22.3 OD, 10.9, GMW3359, M- POINT (KNOCK SEN SHLD)
|
2010-2010 |
01 |
|
| 140 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (KNOCK SEN SHLD) |
|
2010-2010 |
01 |
| 141 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (ЧАСТЬ OF 143) |
|
2010-2010 |
01 |
| 142 |
11518792 |
RETAINER, CR/SHF POSN SEN БОЛТ (ЧАСТЬ OF 143) (FOR M6 БОЛТ, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) |
N (LAU, LF1) |
2010-2010 |
01 |
| 143 |
12615626 |
SENSOR, CR/SHF POSN (INCLS 141, 142, 144) (ACDelco #213-4573) |
N (LAU, LF1) |
2010-2010 |
01 |
| 144 |
|
SEAL, CR/SHF POSN SEN (O RING) (ЧАСТЬ OF 143) |
|
2010-2010 |
|
| 145 |
12570326 |
PIN, CYL HD LOC
| N (LAU, LF1) |
2010-2010 |
04 |
|
| 146 |
11569584 |
PLUG, ENG BLK CORE HOLE (CUP DIA 34.4MM) |
N (LAU) |
2010-2010 |
02 |
| K01 |
12610603 |
BEARING KIT, CR/SHF (#1, 2, 4 STD) (INCLS 124, 132)
| N (LAU) |
2010-2010 |
03 |
|
| K02 |
12610604 |
BEARING KIT, CR/SHF THR (#3 STD) (INCLS 124, 133)
| N (LAU) |
2010-2010 |
01 |
|
| K03 |
12598657 |
BEARING KIT, CONN ROD (INCLS 111)
| N (LAU) |
2010-2010 |
06 |
|
| K04 |
92068446 |
RING KIT, PSTN (INCLS 105-108) |
N (LAU) |
2010-2010 |
06 |
