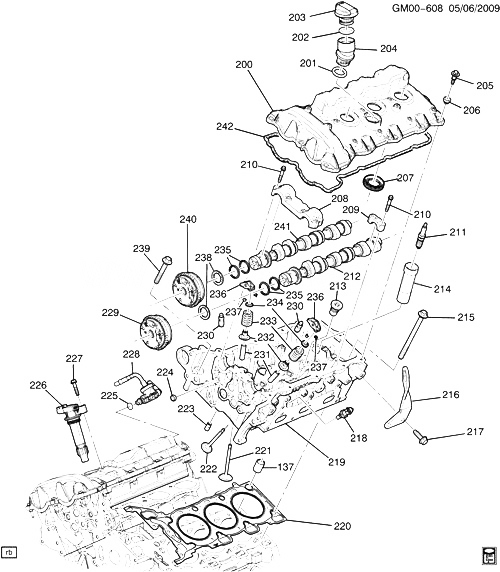

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 137 |
12570326 |
PIN, CYL HD LOC
| N (LAU, LF1) |
2010-2010 |
04 |
|
| 200 |
12612437 |
COVER, CM/SHF (INCLS 205-207, 242) |
N (LAU) |
2010-2010 |
01 |
| 200 |
12623682 |
COVER, CM/SHF (INCLS 205-207, 242) |
N (LAU) |
2010-2010 |
01 |
| 201 |
12593348 |
SEAL, OIL FIL TUBE (O RING) (ЧАСТЬ OF 204) (27.94MM I.D.) (SIZE #320) (1.758)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 202 |
12593348 |
SEAL, OIL FIL CAP (O RING) (ЧАСТЬ OF 203, 204) (27.94MM I.D.) (SIZE #320)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 203 |
12597637 |
CAP, OIL FIL (INCLS 202) (ЧАСТЬ OF 204) (ACDelco #FC237) |
N (LAU) |
2010-2010 |
01 |
| 204 |
12629411 |
TUBE, OIL FIL (INCLS 201-203) |
N (LAU) |
2010-2010 |
01 |
| 205 |
11570020 |
БОЛТ, CM/SHF CVR (ЧАСТЬ OF 200) (INCLS 206) |
N (LAU) |
2010-2010 |
26 |
| 206 |
12595122 |
INSULATOR, CM/SHF CVR БОЛТ (ЧАСТЬ OF 200, 205) |
N (LAU) |
2010-2010 |
26 |
| 207 |
12607600 |
SEAL, SPLG WIRE BOOT (O RING) (ЧАСТЬ OF 200) (2.271)
| N |
2010-2010 |
06 |
|
| 208 |
|
CAP, CM/SHF BRG (ЧАСТЬ OF 219) |
|
2010-2010 |
|
| 209 |
|
CAP, CM/SHF BRG (ЧАСТЬ OF 219) |
|
2010-2010 |
|
| 210 |
11518856 |
HFH, M6X1X43.4, 14.8 THD, 11 O.D., 8.8, GMW3179 CODE G (ЧАСТЬ OF 219)
|
2010-2010 |
36 |
|
| 211 |
55564748 |
СВЕЧИ,
| N (LAU) |
2010-2010 |
06 |
|
| 212 |
12632199 |
CAMSHAFT, EXH (INCLS 235) |
N (LAU) (NOT YET AVAILABLE) |
2010-2010 |
01 |
| 212 |
12632201 |
CAMSHAFT, EXH (INCLS 235) |
N (LAU) (NOT YET AVAILABLE) |
2010-2010 |
01 |
| 213 |
11561751 |
PLUG, CYL HD WAT JKT HOLE (ЧАСТЬ OF 219) (M20X1.5X30.5) (1.531) |
N (LAU, LF1) |
2010-2010 |
02 |
| 214 |
|
SLEEVE, SPLG WIRE (ЧАСТЬ OF 219) |
|
2010-2010 |
|
| 215 |
11518863 |
БОЛТ, CYL HD (M11X2X152)
| N (LAU) |
2010-2010 |
16 |
|
| 216 |
12798365 |
BRACKET, ENG LIFT |
N (LAU) |
2010-2010 |
01 |
| 216 |
55561157 |
BRACKET, ENG LIFT |
N (LAU) |
2010-2010 |
01 |
| 217 |
11518625 |
БОЛТ, PAN, M10X1.5X35, 33.5THD, 20 O.D., 10.9, 6138M (ENG LIFT BRKT) |
|
2010-2010 |
04 |
| 218 |
12566778 |
SENSOR, ENG COOL TEMP (3.682) (ACDelco #213-1581)
| N (LAU) |
2010-2010 |
01 |
|
| 218 |
12566778 |
SENSOR, ENG COOL TEMP (ACDelco #213-1581)
| N (LAU) |
2010-2010 |
01 |
|
| 219 |
12615922 |
HEAD, CYL (MCHG) (INCLS 208-210, 213, 214, 224, 231) |
N (LAU) |
2010-2010 |
01 |
| 219 |
12615927 |
HEAD, CYL (MCHG) (INCLS 208-210, 213, 214, 224, 231) |
N (LAU) |
2010-2010 |
01 |
| 220 |
12631764 |
GASKET, CYL HD |
N (LAU, LF1) |
2010-2010 |
01 |
| 220 |
12631765 |
GASKET, CYL HD |
N (LAU, LF1) |
2010-2010 |
01 |
| 221 |
12584761 |
VALVE, INT (0.075MM O.S.) (0.297) |
N (LAU, LF1) |
2010-2010 |
12 |
| 221 |
12620501 |
VALVE, INT (STD) |
N (LAU, LF1) |
2010-2010 |
12 |
| 222 |
12575356 |
VALVE, EXH |
N (LAU) |
2010-2010 |
12 |
| 223 |
12580965 |
VALVE, ENG OIL MANIF CHK
| N (LAU, LF1) |
2010-2010 |
04 |
|
| 224 |
11562127 |
PLUG, CYL HD OIL GAL (ЧАСТЬ OF 219) (CUP-14.22 OD, 6.6 THK, 304SS) |
N (LAU, LF1) |
2010-2010 |
01 |
| 225 |
|
SEAL, P/B BOOS (ЧАСТЬ OF 228) |
|
2010-2010 |
|
| 226 |
12632479 |
РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ, IGN (INCLS 227) (ACDelco #D515C) |
N (LAU, LF1) |
2010-2010 |
06 |
| 227 |
11588715 |
БОЛТ, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (ЧАСТЬ OF 226)
|
2010-2010 |
06 |
|
| 228 |
55556698 |
VENTURI, P/B BOOS VAC PIPE (INCLS 225) |
N (LAU) |
2010-2010 |
01 |
| 229 |
12614464 |
ACTUATOR, CM/SHF POSN (EXH) (USE WASHER 12632859) |
N (LAU) |
2010-2010 |
02 |
| 230 |
24100005 |
ADJUSTER, HYD VLV LASH (ACDelco #24100005)
| N (LAU, LF1) |
2010-2010 |
24 |
|
| 231 |
|
GUIDE, VLV (ЧАСТЬ OF 219) |
|
2010-2010 |
|
| 232 |
12565836 |
SEAL, VLV STEM OIL
| N (LAU, LF1) |
2010-2010 |
24 |
|
| 233 |
12616671 |
ПРУЖИНА, VLV |
N (LAU, LF1) |
2010-2010 |
24 |
| 234 |
12575196 |
RETAINER, VLV SPR
| N (LAU, LF1) |
2010-2010 |
24 |
|
| 235 |
12574477 |
RING, CM/SHF SPKT OIL SEAL (ЧАСТЬ OF 212, 241)
| N (LAU, LF1) |
2010-2010 |
04 |
|
| 236 |
24100294 |
ARM, VLV RKR
| N (LAU, LF1) |
2010-2010 |
24 |
|
| 237 |
12575197 |
KEY, VLV STEM
| N (LAU, LF1) |
2010-2010 |
48 |
|
| 238 |
12630941 |
WASHER, CM/SHF THR (USED ON ACTUATORS 12603744-745, 12606653 12630916-918)
| N (LAU, LF1) |
2010-2010 |
04 |
|
| 238 |
12632859 |
WASHER, CM/SHF THR (USED ON ACTUATORS 12614464 12626160-161) |
N (LAU, LF1) |
2010-2010 |
04 |
| 239 |
11588734 |
БОЛТ, HFH, M8X1.25X90, 21.6 THD, 18 O.D., 8.8, GMW3359 (CYL HD)
|
2010-2010 |
03 |
|
| 240 |
12603744 |
ACTUATOR, CM/SHF POSN (INCLS 227) (INT) (USE WASHER 12630941) (5 SCREWS ON BACKPLATE) |
N (LAU, LF1) |
2010-2010 |
01 |
| 240 |
12603745 |
ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12630941) (5 SCREWS ON BACKPLATE) |
N (LAU, LF1) |
2010-2010 |
01 |
| 241 |
12632200 |
CAMSHAFT, INT (INCLS 235) |
N (LAU) (NOT YET AVAILABLE) |
2010-2010 |
01 |
| 241 |
12632202 |
CAMSHAFT, INT (INCLS 235) |
N (LAU) (NOT YET AVAILABLE) |
2010-2010 |
01 |
| 242 |
12595106 |
SEAL, CM/SHF CVR (ЧАСТЬ OF 200) (ACDelco #12595106)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 242 |
12595107 |
SEAL, CM/SHF CVR (ЧАСТЬ OF 200)
| N (LAU, LF1) |
2010-2010 |
01 |
|
