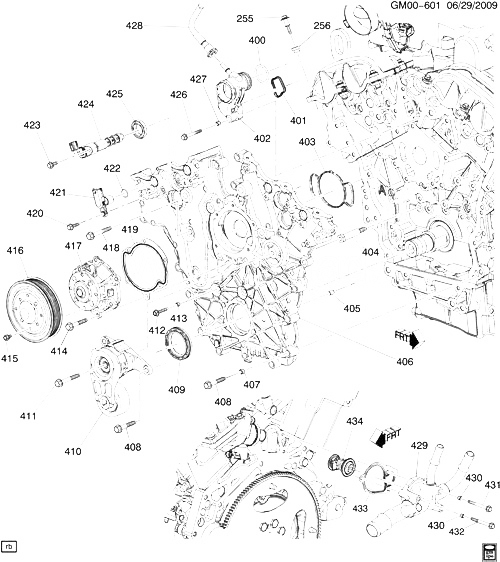

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 255 |
11570020 |
БОЛТ, CM/SHF CVR (INCLS 256) |
N (LF1) |
2010-2010 |
26 |
| 256 |
12595122 |
INSULATOR, CM/SHF CVR БОЛТ (ЧАСТЬ OF 255) |
N (LF1) |
2010-2010 |
26 |
| 400 |
12584040 |
SEAL, CLNT OTLT (O RING) (ЧАСТЬ OF 402) (ACDelco #15-32584)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 401 |
|
SEAL, WAT OTLT (ЧАСТЬ OF 402) |
|
2010-2010 |
|
| 402 |
12623051 |
OUTLET, WAT (INCLS 400, 401, 426, 427) (ACDelco #15-11053) |
N (LAU, LF1) |
2010-2010 |
01 |
| 403 |
12593045 |
SEAL, W/PMP (ЧАСТЬ OF 406)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 404 |
11610796 |
STUD, ENG FRT CVR (M8X1.25X17) (W/DOUBLE SHOULDER) |
N (LF1) |
2010-2010 |
02 |
| 405 |
22531637 |
PIN, ENG FRT CVR LOC (ЧАСТЬ OF 406) (8MM DIA, 12MM LONG) (DOWEL) (0.413)
| N (LAU, LF1) |
2010-2010 |
02 |
|
| 406 |
12626079 |
COVER, ENG FRT (W/ W/PMP) (INCLS 403, 405, 407-414, 417-422, 425) |
N (LF1) |
2010-2010 |
01 |
| 407 |
|
RETAINER, ENG FRT CVR БОЛТ (ЧАСТЬ OF 406) |
|
2010-2010 |
|
| 408 |
11519171 |
БОЛТ, ENG FRT CVR (ЧАСТЬ OF 406) (M8X1.25X50) (3.275)
| N (LAU, LF1) |
2010-2010 |
22 |
|
| 409 |
12608750 |
SEAL, CR/SHF FRT OIL (ЧАСТЬ OF 406)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 410 |
12575509 |
РОЛИК НАТЯЖИТЕЛЬ, DRV BELT (ЧАСТЬ OF 406)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 411 |
11588730 |
БОЛТ, HFH, FULL BODY, 22THD, 18 OD, 8.8, GMW3359.M-PT. (ЧАСТЬ OF 406) (ACDelco #11588730) |
|
2010-2010 |
01 |
| 412 |
11570139 |
БОЛТ, HFH, M6X1X33, 25 THD, 14.2 OD, 10.9, GMW4700 (ZN-NI). (ЧАСТЬ OF 406) |
|
2010-2010 |
02 |
| 413 |
11518792 |
RETAINER, ENG FRT CVR (ЧАСТЬ OF 406) (FOR M6 БОЛТ, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) |
N (LF1) |
2010-2010 |
02 |
| 414 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (ЧАСТЬ OF 406) |
|
2010-2010 |
06 |
| 415 |
11588940 |
БОЛТ, HEX HD, W/CON SPR WA, M6X1X14.55, 8.45 THD, 13.3O.D., 8.8.GMW3359 (W/PMP PUL) |
|
2010-2010 |
04 |
| 416 |
12611587 |
PULLEY, W/PMP |
N (LAU, LF1) |
2010-2010 |
01 |
| 417 |
12618472 |
PUMP, WAT (W/GSKT) (ЧАСТЬ OF 406) (ACDelco #251-724)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 418 |
11588730 |
БОЛТ, HFH, FULL BODY, 22THD, 18 OD, 8.8, GMW3359.M-PT. (ЧАСТЬ OF 406) (ACDelco #11588730) |
|
2010-2010 |
01 |
| 419 |
12576326 |
GASKET, W/PMP (ЧАСТЬ OF 406) (ACDelco #251-2048)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 420 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (ЧАСТЬ OF 406) |
|
2010-2010 |
04 |
| 421 |
12615371 |
SENSOR, CM/SHF POSN (INCLS 422) (ЧАСТЬ OF 406) (ACDelco #213-4592) |
N (LAU, LF1) |
2010-2010 |
01 |
| 422 |
|
WASHER, CM/SHF POSN SEN (ЧАСТЬ OF 406, 421) |
|
2010-2010 |
|
| 423 |
11588279 |
БОЛТ, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN ACTR) |
|
2010-2010 |
04 |
| 424 |
12615613 |
VALVE, CM/SHF POSN ACTR SOL |
N (LAU, LF1) |
2010-2010 |
04 |
| 425 |
12593717 |
SEAL, CM/SHF POSN ACTR SOL VLV (O RING) (ЧАСТЬ OF 406) |
N (LAU, LF1) |
2010-2010 |
04 |
| 426 |
11588718 |
БОЛТ, WAT OTLT (ЧАСТЬ OF 402) (HFH, M6X1X50, 18 THD) (0.206) |
N (LAU, LF1) |
2010-2010 |
02 |
| 427 |
12570372 |
RETAINER, WAT OTLT (ЧАСТЬ OF 402) |
N (LAU, LF1) |
2010-2010 |
02 |
| 428 |
12624304 |
PIPE, ENG COOL AIR BL (СМ. ГРУППУ 01.000 ШЛАНГИ И ТРУБКИ/РАДИАТОР ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
N (LF1) |
2010-2010 |
01 |
| 429 |
12603830 |
ШЛАНГИ, ENG COOL THERM (INCLS 430-434) (INCLS THERMOSTAT, ШЛАНГИ, БОЛТS, GASKET, ТРУБКИ) |
N (LF1) |
2010-2010 |
01 |
| 430 |
11518792 |
RETAINER, ENG COOL THERM HSG БОЛТ (ЧАСТЬ OF 429) (FOR M6 БОЛТ, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) |
N (LF1) |
2010-2010 |
03 |
| 431 |
11588719 |
БОЛТ, HFH, M6X1X60, 18MM THD, 14.2 O.D., 8.8, 3359GMW (ЧАСТЬ OF 429) |
|
2010-2010 |
02 |
| 432 |
11588720 |
БОЛТ, HFH, M6X1X70, 18 THD, 14.2 OD, 8.8, GMW3359, MAT POINT. (ЧАСТЬ OF 429) |
|
2010-2010 |
01 |
| 433 |
12592527 |
GASKET, ENG COOL THERM HSG (ЧАСТЬ OF 429) (ACDelco #12592527)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 434 |
|
THERMOSTAT, ENG COOL (ЧАСТЬ OF 429) |
|
2010-2010 |
|
