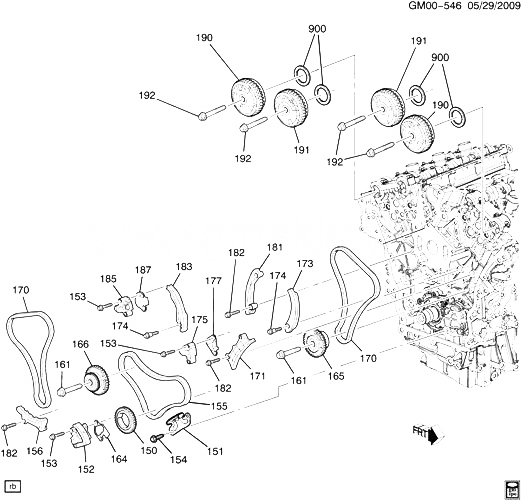

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 150 |
12599721 |
SPROCKET, CR/SHF
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 151 |
12586959 |
GUIDE, TMG CHAIN (2 КРЕПЛЕНИЕ HOLES) (LOWER PRIMARY)
| N (LF1) |
2010-2010 |
01 |
|
| 152 |
12609262 |
РОЛИК НАТЯЖИТЕЛЬ, CM/SHF INTER DRV CHAIN (INCLS БОЛТS, RETAINER, GSKT)
| N (LF1) |
2010-2010 |
01 |
|
| 153 |
11588255 |
БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 175, 185)
|
2010-2010 |
06 |
|
| 154 |
11588725 |
БОЛТ, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (TMG CHAIN GDE)
|
2010-2010 |
02 |
|
| 155 |
12616609 |
CHAIN, CM/SHF INTER DRV (PRIMARY)
| N (LF1) |
2010-2010 |
01 |
|
| 156 |
12597417 |
GUIDE, TMG CHAIN (INCLS 182) (UPPER PRIMARY) |
N (LF1) |
2010-2010 |
01 |
| 161 |
11588252 |
БОЛТ, HFH, RDUCD BDY, M6X1X70, 18 THD, 14.2 O.D., 8.8, GMW3179 CODE G (ЧАСТЬ OF 165, 166) |
|
2010-2010 |
02 |
| 164 |
12589477 |
GASKET, TMG CHAIN HSG (PRIMARY) |
N (LF1) |
2010-2010 |
01 |
| 165 |
12612839 |
SPROCKET, TMG CHAIN IDLER (INCLS 161) (0.736)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 166 |
12612838 |
SPROCKET, TMG CHAIN IDLER (INCLS 161) (0.736)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 170 |
12616608 |
CHAIN, CM/SHF INTER DRV (SECONDARY)
| N (LF1) |
2010-2010 |
02 |
|
| 171 |
12600461 |
GUIDE, TMG CHAIN (INCLS 182) (2 КРЕПЛЕНИЕ HOLES) (SECONDARY)
| N (LF1) |
2010-2010 |
01 |
|
| 173 |
12586960 |
GUIDE, TMG CHAIN (SINGLE КРЕПЛЕНИЕ HOLE) (PIVOT ARM)
| N (LF1) |
2010-2010 |
01 |
|
| 174 |
11561619 |
БОЛТ, M8X1.25 6H 43.0, GMW25 (8.8) STL, GMW3179 CODE C (TMG CHAIN TENSR)
|
2010-2010 |
02 |
|
| 175 |
12609260 |
РОЛИК НАТЯЖИТЕЛЬ, TMG CHAIN (INCLS 153, 177) (SECONDARY) (INCLS БОЛТS, RETAINER, GSKT)
| N (LF1) |
2010-2010 |
01 |
|
| 177 |
12589478 |
GASKET, TMG CHAIN HSG (ЧАСТЬ OF 175) |
N (LF1) |
2010-2010 |
01 |
| 181 |
12600462 |
GUIDE, TMG CHAIN (INCLS 182) (2 КРЕПЛЕНИЕ HOLES) (SECONDARY)
| N (LF1) |
2010-2010 |
01 |
|
| 182 |
11588255 |
БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 156, 171, 181)
|
2010-2010 |
06 |
|
| 183 |
12586961 |
GUIDE, TMG CHAIN (SINGLE КРЕПЛЕНИЕ HOLE) (PIVOT ARM)
| N (LF1) |
2010-2010 |
01 |
|
| 185 |
12609258 |
РОЛИК НАТЯЖИТЕЛЬ, TMG CHAIN (INCLS 153, 187) (SECONDARY) (INCLS БОЛТS, RETAINER, GSKT)
| N (LF1) |
2010-2010 |
01 |
|
| 187 |
12589479 |
GASKET, TMG CHAIN HSG (ЧАСТЬ OF 185) |
N (LF1) |
2010-2010 |
01 |
| 190 |
12614464 |
ACTUATOR, CM/SHF POSN (EXH) (USE WASHER 12632859) |
N (LF1) |
2010-2010 |
02 |
| 191 |
12603744 |
ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12630941) (5 SCREWS ON BACKPLATE) |
N (LAU, LF1) |
2010-2010 |
01 |
| 191 |
12603745 |
ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12630941) (5 SCREWS ON BACKPLATE) |
N (LAU, LF1) |
2010-2010 |
01 |
| 192 |
11588279 |
БОЛТ, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN ACTR) |
|
2010-2010 |
04 |
| 900 |
12630941 |
WASHER, CM/SHF THR (USED ON ACTUATORS 12603744-745, 12606653 12630916-918)
| N (LAU, LF1) |
2010-2010 |
04 |
|
| 900 |
12632859 |
WASHER, CM/SHF THR (USED ON ACTUATORS 12614464 12626160-161) |
N (LAU, LF1) |
2010-2010 |
04 |
