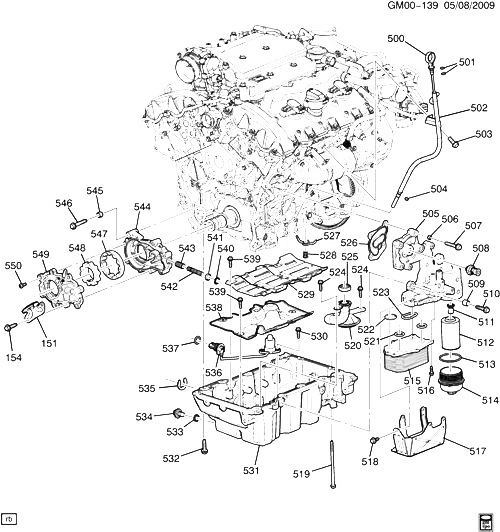

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 151 |
12586959 |
GUIDE, TMG CHAIN (ЧАСТЬ OF 545) (2 КРЕПЛЕНИЕ HOLES) (LOWER PRIMARY)
| N (LAU) |
2010-2010 |
01 |
|
| 154 |
11588725 |
БОЛТ, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (ЧАСТЬ OF 545)
|
2010-2010 |
02 |
|
| 500 |
12602232 |
INDICATOR, OIL LVL (INCLS 501) |
N (LAU) |
2010-2010 |
01 |
| 501 |
24504091 |
SEAL, OIL LVL IND (O RING) (ЧАСТЬ OF 500) (BLACK) (6.07MM ID, 1.78MM DIA) |
N (LAU, LF1) |
2010-2010 |
02 |
| 502 |
12593629 |
TUBE, OIL LVL IND |
N (LAU) |
2010-2010 |
01 |
| 503 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (OIL LVL IND TUBE) |
|
2010-2010 |
01 |
| 504 |
24504091 |
SEAL, OIL LVL IND (O RING) (BLACK) (6.07MM ID, 1.78MM DIA) |
N (LAU, LF1) |
2010-2010 |
02 |
| 505 |
12623425 |
ADAPTER, OIL FLTR (W/BYPASS VLV) (INCLS 506-509, 511-518, 521-524, 527) |
N (LAU) |
2010-2010 |
01 |
| 506 |
|
RETAINER, O/PMP SCRN БОЛТ (ЧАСТЬ OF 505) |
|
2010-2010 |
|
| 507 |
11519171 |
БОЛТ, OIL FLTR ADAP (ЧАСТЬ OF 505) (M8X1.25X50) (3.275)
| N (LAU) |
2010-2010 |
04 |
|
| 508 |
12621649 |
SENSOR, ENG OIL PRESS (ЧАСТЬ OF 505) (ACDelco #D1800C) |
N (LAU) |
2010-2010 |
01 |
| 509 |
|
SPACER, OIL FLTR (ЧАСТЬ OF 505) |
|
2010-2010 |
|
| 510 |
11519980 |
БОЛТ, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (ENG OIL CLR) |
|
2010-2010 |
02 |
| 511 |
25014612 |
VALVE, OIL FLTR BYPASS (ЧАСТЬ OF 505, 514) (W/O VAPOR SEPARATOR) (OPENING PRESSURE 21 PSI NOMINAL) |
N (LAU) |
2010-2010 |
01 |
| 512 |
12593333 |
ФИЛЬТР, МАСЛЯНЫЙ (ЧАСТЬ OF 505) |
N (LAU) |
2010-2010 |
01 |
| 513 |
12577653 |
SEAL, OIL FLTR CAP (O RING) (ЧАСТЬ OF 505, 514)
| N (LAU) |
2010-2010 |
01 |
|
| 514 |
12583470 |
CAP, OIL FLTR (INCLS 512, 513) (ЧАСТЬ OF 505)
| N (LAU) |
2010-2010 |
01 |
|
| 515 |
12572837 |
COOLER, ENG OIL (ЧАСТЬ OF 505) |
N (LAU) |
2010-2010 |
01 |
| 516 |
11589084 |
БОЛТ, OIL FLTR ADAP (ЧАСТЬ OF 505) (M6X1X20, 17.5 THD) (3.682) |
N (LAU) |
2010-2010 |
06 |
| 517 |
12580718 |
SHIELD KIT, ENG OIL CLR (ЧАСТЬ OF 505) |
N (LAU) |
2010-2010 |
01 |
| 518 |
11588711 |
БОЛТ, HFH, M6X1X16, 10 THD, 14.2 OD, 8.8 STL, GMW3359 (ЧАСТЬ OF 505) |
|
2010-2010 |
05 |
| 519 |
11588424 |
БОЛТ, HFH, M6X1X145, 18 THD, 14.2 O.D., 8.8, GMW3359 (МАСЛЯНЫЙ ПОДДОН)
|
2010-2010 |
02 |
|
| 520 |
12571135 |
PIPE, O/PMP SUC |
N (LAU) |
2010-2010 |
01 |
| 521 |
|
GASKET, OIL FLTR ADAP (ЧАСТЬ OF 505) (*KIT1) |
|
2010-2010 |
|
| 522 |
|
GASKET, OIL FLTR ADAP (ЧАСТЬ OF 505) (*KIT1) |
|
2010-2010 |
|
| 523 |
|
GASKET, OIL FLTR ADAP (ЧАСТЬ OF 505) (*KIT1) |
|
2010-2010 |
|
| 524 |
25013759 |
VALVE, OIL FLTR BYPASS (ЧАСТЬ OF 505) (ACDelco #25013759) |
N (LAU) |
2010-2010 |
01 |
| 525 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (O/PMP SUC PIPE BRKT) |
|
2010-2010 |
02 |
| 526 |
12566837 |
SEAL, O/PMP SUC PIPE
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 527 |
12591604 |
GASKET, OIL FLTR (ЧАСТЬ OF 505) (BETWEEN OIL FILTER ADAPTER AND BLOCK)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 528 |
12610143 |
NOZZLE, PSTN OIL |
N (LAU, LF1) |
2010-2010 |
03 |
| 529 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PSTN OIL NOZ) |
|
2010-2010 |
03 |
| 530 |
12572089 |
DEFLECTOR, CR/SHF OIL |
N (LAU) |
2010-2010 |
01 |
| 531 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (ENG OIL LVL TEMP SEN) |
|
2010-2010 |
02 |
| 532 |
12620917 |
PAN, OIL |
N (LAU) |
2010-2010 |
01 |
| 533 |
11588725 |
БОЛТ, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (МАСЛЯНЫЙ ПОДДОН)
|
2010-2010 |
11 |
|
| 534 |
12616850 |
SEAL, МАСЛЯНЫЙ ПОДДОН DRN PLUG (O RING) (ЧАСТЬ OF 535) |
N (LAU, LF1) |
2010-2010 |
01 |
| 535 |
11562588 |
PLUG, МАСЛЯНЫЙ ПОДДОН DRN (INCLS 534) (W/ SEAL) (EXC MAGNET)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 536 |
12617903 |
CLIP, ENG OIL LVL SEN LEAD |
N (LAU) |
2010-2010 |
01 |
| 537 |
12630499 |
SENSOR, ENG OIL LVL TEMP (INCLS 538) |
N (LAU) |
2010-2010 |
01 |
| 538 |
|
SEAL, МАСЛЯНЫЙ ПОДДОН FRT (ЧАСТЬ OF 537) |
|
2010-2010 |
|
| 539 |
12575362 |
BAFFLE, МАСЛЯНЫЙ ПОДДОН |
N (LAU) |
2010-2010 |
01 |
| 540 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (МАСЛЯНЫЙ ПОДДОН BFL) |
|
2010-2010 |
10 |
| 541 |
|
PLUG, OIL PRESS REG VLV SPR STOP (ЧАСТЬ OF 545) |
|
2010-2010 |
|
| 542 |
|
PLUG, OIL PRESS REG HOLE (ЧАСТЬ OF 545) |
|
2010-2010 |
|
| 543 |
|
ПРУЖИНА, OIL PRESS RLF VLV (ЧАСТЬ OF 545) |
|
2010-2010 |
|
| 544 |
|
VALVE, OIL PRESS RLF (ЧАСТЬ OF 545) |
|
2010-2010 |
|
| 545 |
12590152 |
PUMP, OIL (INCLS 151, 154, 541-544, 546-551) (INCLS GUIDE, БОЛТS)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 546 |
|
RETAINER, O/PMP DRV SHF (ЧАСТЬ OF 545) |
|
2010-2010 |
|
| 547 |
11588729 |
БОЛТ, HEX HD, W/1.6 FLAT WA, M8X1.25X54.3, 43 THD, 16O.D., 8.8, GMW3359 (ЧАСТЬ OF 545) |
|
2010-2010 |
03 |
| 548 |
|
GEAR, O/PMP DRVN (ЧАСТЬ OF 545) |
|
2010-2010 |
|
| 549 |
|
GEAR, O/PMP DRV (ЧАСТЬ OF 545) |
|
2010-2010 |
|
| 550 |
|
COVER, O/PMP (ЧАСТЬ OF 545) |
|
2010-2010 |
|
| 551 |
|
БОЛТ, O/PMP (ЧАСТЬ OF 545) |
|
2010-2010 |
|
| K01 |
12634385 |
ADAPTER KIT, ENG OIL CLR (INCLS 521-523) |
N (LAU) |
2010-2010 |
01 |
