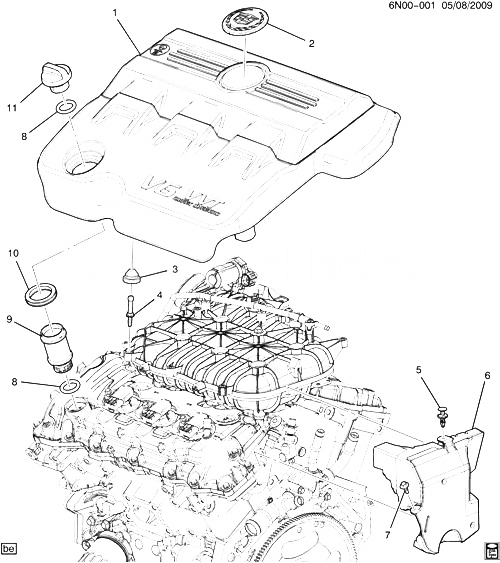

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12630565 |
COVER, INT MANIF (INCLS 2, 3, 10) |
N (LF1) |
2010-2010 |
01 |
| 001 |
12630565 |
COVER, INT MANIF (INCLS 2, 3, 10) (3.265) |
N (LF1) |
2010-2010 |
01 |
| 002 |
12622176 |
EMBLEM, INT MANIF CVR (ЧАСТЬ OF 1) |
N (LF1) |
2010-2010 |
01 |
| 003 |
12591715 |
GROMMET, UPR INT MANIF SIGHT SHLD (ЧАСТЬ OF 1) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) |
N (LF1) |
2010-2010 |
04 |
| 004 |
11588967 |
STUD, BALL W/HFH, M6X1X20.65, 14.2 O.D., 8.8, GMW3359 (INT MANIF CVR) |
|
2010-2010 |
04 |
| 005 |
11589291 |
RETAINER, PUSH-IN, FITS 6.5 HOLE IN 7-9.5 THK PNL, NYLON 6/6 (ENG SHLD БОЛТ)
|
2010-2010 |
01 |
|
| 006 |
12634412 |
SHIELD, ENG RR NOISE |
N (LF1) |
2010-2010 |
01 |
| 007 |
11609669 |
БОЛТ, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (ENG RR NOISE SHLD)
|
2010-2010 |
01 |
|
| 008 |
12593348 |
SEAL, OIL FIL CAP (O RING) (ЧАСТЬ OF 9, 11) (27.94MM I.D.) (SIZE #320)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 009 |
12629697 |
TUBE, OIL FIL (INCLS 8, 11) |
N (LF1) |
2010-2010 |
01 |
| 010 |
12591714 |
GROMMET, UPR INT MANIF SIGHT SHLD (ЧАСТЬ OF 1) (60MM OD @ TOP) (ROUND TOP BOTTOM) |
N (LF1) |
2010-2010 |
01 |
| 011 |
12593356 |
CAP, OIL FIL (INCLS 8) (ЧАСТЬ OF 9) (ACDelco #FC221)
| N (LF1) |
2010-2010 |
01 |
|
