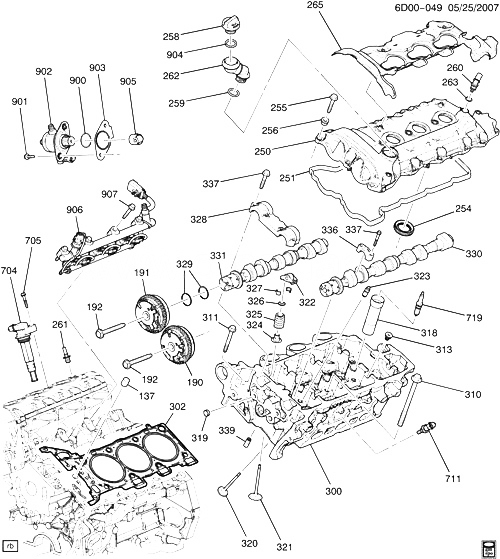

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 137 |
12570326 |
PIN, CYL HD LOC
| N (LAU, LF1) |
2010-2010 |
04 |
|
| 190 |
12606653 |
ACTUATOR, CM/SHF POSN (EXH) (USE WASHER 12630941) |
N (LF1) |
2010-2010 |
02 |
| 191 |
12603745 |
ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12630941) |
N (LAU, LF1) |
2010-2010 |
01 |
| 192 |
11588279 |
БОЛТ, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN) |
|
2010-2010 |
04 |
| 250 |
12624804 |
COVER, CM/SHF (INCLS 251, 254-256, 260, 263)
| N (LF1) |
2010-2010 |
01 |
|
| 250 |
12626054 |
COVER, CM/SHF (INCLS 251, 254-256, 261)
| N (LF1) |
2010-2010 |
01 |
|
| 251 |
12595106 |
SEAL, CM/SHF CVR (ЧАСТЬ OF 250) (*KIT1) (ACDelco #12595106)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 251 |
12595107 |
SEAL, CM/SHF CVR (ЧАСТЬ OF 250) (*KIT1)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 254 |
12607600 |
SEAL, SPLG SHLD (ЧАСТЬ OF 250)
| N (LF1) |
2010-2010 |
06 |
|
| 255 |
11518859 |
БОЛТ, HFH W/SHLDR, M6X1X35, 11.85 THD, 18 O.D., 8.8, GMW3359 (ЧАСТЬ OF 250) |
|
2010-2010 |
26 |
| 256 |
12595122 |
INSULATOR, CM/SHF CVR БОЛТ (ЧАСТЬ OF 250) (*KIT1) |
N (LF1) |
2010-2010 |
26 |
| 258 |
12593356 |
CAP, OIL FIL (INCLS 904) (ACDelco #FC221)
| N (LF1) |
2010-2010 |
01 |
|
| 259 |
12593348 |
SEAL, OIL FIL CAP (O RING) (ЧАСТЬ OF 262) (27.94MM I.D.) (SIZE #320)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 260 |
12578316 |
FITTING, PCV (INCLS 263) (ЧАСТЬ OF 250) |
N (LF1) |
2010-2010 |
01 |
| 262 |
12629697 |
TUBE, OIL FIL (INCLS 259) |
N (LF1) |
2010-2010 |
01 |
| 263 |
12616909 |
SEAL, PCV HOSE FTG (O RING) (ЧАСТЬ OF 250, 260) (BLACK) (SMALLER OF THE TWO ON THE FITTING)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 265 |
12601744 |
DEADENER, CM/SHF CVR |
N (LF1) |
2010-2010 |
01 |
| 265 |
12601745 |
INSULATOR, CM/SHF HSG CVR
| N (LF1) |
2010-2010 |
02 |
|
| 300 |
12611606 |
HEAD, CYL (MCHG) (INCLS 313, 318, 319, 328, 336, 337) (DOES NOT INCL ENG OIL MANIF CHECK VALVES. DLR MUST INSTL) |
N (LF1) |
2010-2010 |
01 |
| 300 |
12611607 |
HEAD, CYL (MCHG) (INCLS 313, 318, 319, 328, 336, 337) (DOES NOT INCL ENG OIL MANIF CHECK VALVES. DLR MUST INSTL) |
N (LF1) |
2010-2010 |
01 |
| 302 |
12631764 |
GASKET, CYL HD (*KIT1) |
N (LAU, LF1) |
2010-2010 |
01 |
| 302 |
12631765 |
GASKET, CYL HD (*KIT1) |
N (LAU, LF1) |
2010-2010 |
01 |
| 311 |
11588734 |
БОЛТ, HFH, M8X1.25X90, 21.6 THD, 18 O.D., 8.8, GMW3359 (CYL HD)
|
2010-2010 |
03 |
|
| 313 |
11561751 |
PLUG, CYL HD WAT JKT HOLE (ЧАСТЬ OF 300) (M20X1.5X30.5) (1.531) |
N (LAU, LF1) |
2010-2010 |
02 |
| 318 |
|
SLEEVE, SPLG WIRE (ЧАСТЬ OF 300) |
|
2010-2010 |
|
| 320 |
12621548 |
VALVE, EXH |
N (LF1) |
2010-2010 |
12 |
| 321 |
12584761 |
VALVE, INT (0.075MM O.S.) (0.297) |
N (LAU, LF1) |
2010-2010 |
12 |
| 321 |
12620501 |
VALVE, INT (STD) |
N (LAU, LF1) |
2010-2010 |
12 |
| 322 |
24100294 |
ARM, VLV RKR
| N (LAU, LF1) |
2010-2010 |
24 |
|
| 323 |
24100005 |
ADJUSTER, HYD VLV LASH (ACDelco #24100005)
| N (LAU, LF1) |
2010-2010 |
24 |
|
| 324 |
12565836 |
SEAL, VLV STEM OIL
| N (LAU, LF1) |
2010-2010 |
24 |
|
| 325 |
12616671 |
ПРУЖИНА, VLV |
N (LAU, LF1) |
2010-2010 |
24 |
| 326 |
12575196 |
RETAINER, VLV SPR
| N (LAU, LF1) |
2010-2010 |
24 |
|
| 327 |
12575197 |
KEY, VLV STEM
| N (LAU, LF1) |
2010-2010 |
48 |
|
| 328 |
|
CAP, CM/SHF BRG (ЧАСТЬ OF 300) |
|
2010-2010 |
|
| 329 |
12574477 |
RING, CM/SHF SPKT OIL SEAL (ЧАСТЬ OF 330, 331)
| N (LAU, LF1) |
2010-2010 |
04 |
|
| 330 |
12625984 |
CAMSHAFT, EXH (INCLS 329) |
N (LF1) |
2010-2010 |
01 |
| 330 |
12625988 |
CAMSHAFT, EXH (INCLS 329) |
N (LF1) |
2010-2010 |
01 |
| 331 |
12625986 |
CAMSHAFT, INT (INCLS 329) |
N (LF1) |
2010-2010 |
01 |
| 331 |
12625989 |
CAMSHAFT, INT (INCLS 329) |
N (LF1) |
2010-2010 |
01 |
| 336 |
|
CAP, CM/SHF BRG (ЧАСТЬ OF 300) |
|
2010-2010 |
|
| 337 |
11518856 |
HFH, M6X1X43.4, 14.8 THD, 11 O.D., 8.8, GMW3179 CODE G (ЧАСТЬ OF 300)
|
2010-2010 |
32 |
|
| 339 |
12580965 |
VALVE, ENG OIL MANIF CHK
| N (LAU, LF1) |
2010-2010 |
04 |
|
| 704 |
12632479 |
РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ, IGN (INCLS 705) (ACDelco #D515C) |
N (LAU, LF1) |
2010-2010 |
06 |
| 705 |
11588715 |
БОЛТ, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (ЧАСТЬ OF 704)
|
2010-2010 |
AR |
|
| 711 |
12611420 |
SENSOR, ENG COOL TEMP (3.682) (ACDelco #213-4232) |
N (LF1) |
2010-2010 |
01 |
| 711 |
12611420 |
SENSOR, ENG COOL TEMP (ACDelco #213-4232) |
N (LF1) |
2010-2010 |
01 |
| 719 |
12622561 |
СВЕЧИ, (ACDelco #41-109) (IRIDIUM)
| N (LF1) |
2010-2010 |
06 |
|
| 900 |
|
SEAL, F/PMP HSG (O RING) (ЧАСТЬ OF 902) |
|
2010-2010 |
|
| 901 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (ЧАСТЬ OF 902) |
|
2010-2010 |
02 |
| 902 |
|
PUMP, FUEL (INCLS 900, 901, 903) |
|
2010-2010 |
|
| 903 |
|
GASKET, F/PMP BRKT (ЧАСТЬ OF 902) |
|
2010-2010 |
|
| 904 |
12593348 |
SEAL, OIL FIL CAP (O RING) (ЧАСТЬ OF 258) (27.94MM I.D.) (SIZE #320)
| N (LAU, LF1) |
2010-2010 |
01 |
|
| 905 |
12590679 |
FOLLOWER, VLV LFTR (FUEL PUMP)
| N (LF1) |
2010-2010 |
01 |
|
| 906 |
|
RAIL, DIR F/INJN FUEL (СМ. ГРУППУ 03.000 FUEL RAIL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2010-2010 |
|
| 907 |
11588729 |
БОЛТ, F/INJN FUEL RL (M8X1.25X55) (8.900) |
N (LF1) |
2010-2010 |
04 |
| K01 |
12631191 |
GASKET KIT, CYL HD (INCLS 251, 256, 302) |
N (LF1) |
2010-2010 |
01 |
