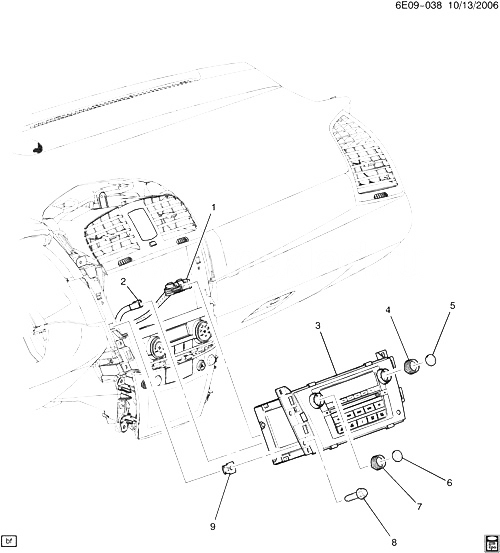

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 002 |
25791776 |
CABLE, RDO ANT (4070MM) (ACDelco #25791776) |
E |
2007-2009 |
01 |
| 003 |
25808216 |
RADIO, AM/FM STEREO CLK CD PLYR (INCLS 4-7) (REQUIRES DLR PROGRAMMING) (ACDelco #25808216) (LABELED 25808216 2ND DESIGN SEE 25849388.) |
E26 (U2R) (1ST DES) |
2009-2009 |
01 |
| 003 |
25849388 |
RADIO, AM/FM STEREO CLK CD PLYR (INCLS 4-7) (ACDelco #25849388) (LABELED 25849388 1ST DESIGN SEE 25808216.) |
E26 (U2R) (2ND DES) |
2009-2009 |
01 |
| 003 |
25849389 |
RADIO, AM/FM STEREO CLK CD PLYR (INCLS 4-7) (ACDelco #25849389) (LABELED 25849389 1ST DESIGN SEE 15948003.) |
E26 (U2S) (2ND DES) |
2009-2009 |
01 |
| 004 |
|
KNOB, RDO TUNING CONT (ЧАСТЬ OF 3) |
|
2007-2009 |
|
| 005 |
|
PUSHBUTTON, RDO TUNE (ЧАСТЬ OF 3) |
|
2007-2009 |
|
| 006 |
|
PUSHBUTTON, RDO PWR (ЧАСТЬ OF 3) |
|
2007-2009 |
|
| 007 |
|
KNOB, RDO VOL CONT (ЧАСТЬ OF 3) |
|
2007-2009 |
|
| 008 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO)
|
2007-2009 |
04 |
|
| 009 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (RADIO) (10.701)
|
2007-2009 |
04 |
|
