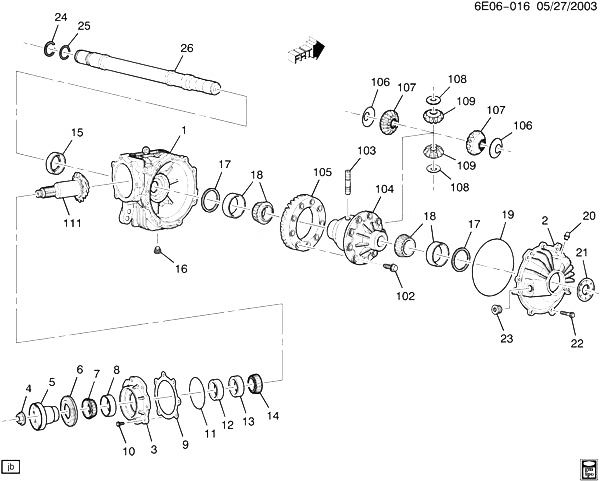

(6E06-016) - 2007-2009 E DIFFERENTIAL КРОНШТЕЙН/FRONT AXLE (MX7) CADILLAC - SRX 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25978167 КРОНШТЕЙН, FRT DIFF (INCLS 2-26, 102-111) EB26 (MX5, GU5) 2009-2009 01
001 25978167 КРОНШТЕЙН, FRT DIFF (INCLS 2-26, 102-111) EB26 (MYB, MX7) 2009-2009 01
001 25978168 КРОНШТЕЙН, FRT DIFF (INCLS 2-26, 102-111) EB (MX5, GW1, JJB) 2009-2009 01
002 COVER, FRT DIFF CARR (ЧАСТЬ OF 1) 2007-2009
003 ШЛАНГИ, FRT DIFF DRV P/GR INR BRG (ЧАСТЬ OF 1) 2007-2009
004 89047861 ГАЙКА, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) EB (MX5, GU5, JNG) 2009-2009 01
004 89047861 ГАЙКА, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) EB (MX5, GW1) 2009-2009 01
004 89047861 ГАЙКА, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) EB (MYB, MX7) 2009-2009 01
005 19178812 FLANGE, FRT DIFF CARR (ЧАСТЬ OF 1) EB (MX5, GU5) 2009-2009 01
005 19178812 FLANGE, FRT DIFF CARR (ЧАСТЬ OF 1) EB (MX5, GW1) 2009-2009 01
006 19132939 SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) (4.515) (CAN USE SEAL ONLY W/CASTING #6507022390 ON ШЛАНГИ DIFF DRV PINION GEAR, FOR 1ST DESIGN MUST USE SEAL KIT 19179936.) E (2ND DES) 2004-2009 01
006 89047834 SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) EB (MX5, GW1) 2009-2009 01
006 89047834 SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) EB26 (MX5, GU5) 2009-2009 01
006 89047834 SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) EB26 (MX5, GW1) 2009-2009 01
006 89047834 SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) EB26 (MYB, MX7) 2009-2009 01
007 BEARING, FRT DIFF DRV P/GR INR (ЧАСТЬ OF 1) 2007-2009
008 BEARING, FRT DIFF DRV P/GR INR (ЧАСТЬ OF 1) 2007-2009
009 SHIM, FRT DIFF DRV P/GR BRG (ЧАСТЬ OF 1) 2007-2009
010 89047930 БОЛТ, FRT DIFF CARR CVR (ЧАСТЬ OF 1) EB (MX5, GU5, JJB) 2009-2009 14
010 89047930 БОЛТ, FRT DIFF CARR CVR (ЧАСТЬ OF 1) EB (MYB, JJB, MX7) 2009-2009 14
011 19132939 SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) (4.515) (CAN USE SEAL ONLY W/CASTING #6507022390 ON ШЛАНГИ DIFF DRV PINION GEAR, FOR 1ST DESIGN MUST USE SEAL KIT 19179936.) E (2ND DES) 2008-2009 01
011 89047834 SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) EB (MX5, GW1) 2009-2009 01
011 89047834 SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) EB26 (MX5, GU5) 2009-2009 01
011 89047834 SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) EB26 (MX5, GW1) 2009-2009 01
011 89047834 SEAL, FRT DIFF DRV P/GR (ЧАСТЬ OF 1) EB26 (MYB, MX7) 2009-2009 01
012 SPACER, FRT DIFF DRV P/GR BRG (ЧАСТЬ OF 1) 2007-2009
013 BEARING, FRT DIFF DRV P/GR INR (ЧАСТЬ OF 1) 2007-2009
014 BEARING, FRT DIFF DRV P/GR INR (ЧАСТЬ OF 1) 2007-2009
015 20850012 SEAL, FRT WHL DRV INTER SHF HSG (ЧАСТЬ OF 1) EB 2009-2009 01
016 89059039 PLUG, FRT DIFF CARR OIL DRN (ЧАСТЬ OF 1) (5.400) EB (MX5, GW1) 2009-2009 01
016 89059039 PLUG, FRT DIFF CARR OIL DRN (ЧАСТЬ OF 1) (5.400) EB26 (MX5, GU5) 2009-2009 01
016 89059039 PLUG, FRT DIFF CARR OIL DRN (ЧАСТЬ OF 1) (5.400) EB26 (MYB, MX7) 2009-2009 01
017 SHIM, FRT DIFF SI GR (ЧАСТЬ OF 1) 2007-2009
018 BEARING, FRT DIFF DRV P/GR OTR (ЧАСТЬ OF 1) 2007-2009
019 89047859 GASKET, FRT DIFF CARR CVR (ЧАСТЬ OF 1) EB (MX5, GW1) 2009-2009 01
019 89047859 GASKET, FRT DIFF CARR CVR (ЧАСТЬ OF 1) EB (MYB, MX7) 2009-2009 01
020 19132947 VENT, F/AXL (ЧАСТЬ OF 1) (4.510) EB26 (MX5, GU5, JJB) 2009-2009 01
020 19132947 VENT, F/AXL (ЧАСТЬ OF 1) (4.510) EB26 (MX5, GW1, JJB) 2009-2009 01
020 19132947 VENT, F/AXL (ЧАСТЬ OF 1) (4.510) EB26 (MYB, JJB, MX7) 2009-2009 01
021 25968537 SEAL, F/AXL SHF (ЧАСТЬ OF 1) (5.822) EB (MX5, GW1, JJB) 2009-2009 01
021 25968537 SEAL, F/AXL SHF (ЧАСТЬ OF 1) (5.822) EB26 (MX5, GU5, JJB) 2009-2009 01
021 25968537 SEAL, F/AXL SHF (ЧАСТЬ OF 1) (5.822) EB26 (MYB, JJB, MX7) 2009-2009 01
022 89047930 БОЛТ, FRT DIFF CARR CVR (ЧАСТЬ OF 1) EB (MX5, GU5, JJB) 2009-2009 14
022 89047930 БОЛТ, FRT DIFF CARR CVR (ЧАСТЬ OF 1) EB (MYB, JJB, MX7) 2009-2009 14
023 89059038 PLUG, FRT DIFF CARR OIL FIL (ЧАСТЬ OF 1) (M20X1.5X14) (W/SEAL) (5.400) EB (MX5, GW1) 2009-2009 01
023 89059038 PLUG, FRT DIFF CARR OIL FIL (ЧАСТЬ OF 1) (M20X1.5X14) (W/SEAL) (5.400) EB26 (MX5, GU5) 2009-2009 01
023 89059038 PLUG, FRT DIFF CARR OIL FIL (ЧАСТЬ OF 1) (M20X1.5X14) (W/SEAL) (5.400) EB26 (MYB, MX7) 2009-2009 01
024 89047934 SEAL, FRT WHL DRV INTER SHF (ЧАСТЬ OF 1) EB26 (MX5, GU5, JJB) 2009-2009 01
024 89047934 SEAL, FRT WHL DRV INTER SHF (ЧАСТЬ OF 1) EB26 (MX5, GW1, JJB) 2009-2009 01
024 89047934 SEAL, FRT WHL DRV INTER SHF (ЧАСТЬ OF 1) EB26 (MYB, JJB, MX7) 2009-2009 01
025 89047933 RETAINER, FRT WHL DRV INTER SHF (ЧАСТЬ OF 1) EB26 (MX5, GU5, JJB) 2009-2009 01
025 89047933 RETAINER, FRT WHL DRV INTER SHF (ЧАСТЬ OF 1) EB26 (MX5, GW1, JJB) 2009-2009 01
025 89047933 RETAINER, FRT WHL DRV INTER SHF (ЧАСТЬ OF 1) EB26 (MYB, JJB, MX7) 2009-2009 01
026 89047931 SHAFT, FRT WHL DRV INTER (ЧАСТЬ OF 1) EB (MX5, GW1, JJB) 2009-2009 01
026 89047931 SHAFT, FRT WHL DRV INTER (ЧАСТЬ OF 1) EB26 (MX5, GU5, JJB) 2009-2009 01
026 89047931 SHAFT, FRT WHL DRV INTER (ЧАСТЬ OF 1) EB26 (MX5, GW1, JJB) 2009-2009 01
026 89047931 SHAFT, FRT WHL DRV INTER (ЧАСТЬ OF 1) EB26 (MYB, JJB, MX7) 2009-2009 01
102 89047929 БОЛТ, FRT DIFF R/GR (ЧАСТЬ OF 1) E 2004-2009 10
103 SHAFT, FRT DIFF P/GR (ЧАСТЬ OF 1) 2007-2009
104 CASE, FRT DIFF (ЧАСТЬ OF 1) 2007-2009
105 GEAR, FRT DIFF RING (ЧАСТЬ OF 1) 2007-2009
106 WASHER, FRT DIFF SI GR THR (ЧАСТЬ OF 1) 2007-2009
107 GEAR, FRT DIFF SI (ЧАСТЬ OF 1) 2007-2009
108 WASHER, FRT DIFF P/GR THR (ЧАСТЬ OF 1) 2007-2009
109 GEAR, FRT DIFF PINION (ЧАСТЬ OF 1) 2007-2009
111 GEAR, FRT DIFF DRV PINION (ЧАСТЬ OF 1) 2007-2009
