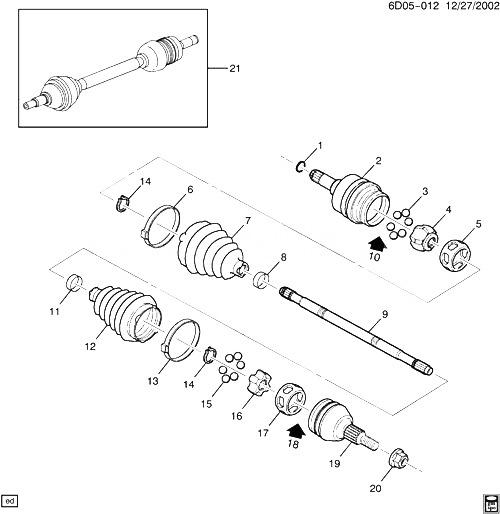

(6D05-012) - 2004-2009 E ВАЛ ЗАДНЕЙ ОСИ CADILLAC - SRX 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19149079 RING, R/AXL SHF RET E26 (GU5, MX7, MX0, JNG) 2007-2009 02
001 19149079 RING, R/AXL SHF RET E26 (GW1) 2007-2009 02
002 JOINT, RR WHL DRV OUTER RACE CR GRW (*KIT1) 2004-2009
003 BALL, RR WHL DRV SHF INR CR GRW (*KIT1) 2004-2009
004 JOINT, RR WHL DRV SHF INR RACE CR GRV (*KIT1) 2004-2009
005 JOINT, CAGE RR WHL DRV SHF CR GRV (*KIT1) 2004-2009
006 88957217 CЛАМПА, RR WHL DRV SHF CV JT BOOT INR (*KIT1, KIT3) E26 (GU5, MX7, MX0) 2007-2009 02
006 88957217 CЛАМПА, RR WHL DRV SHF CV JT BOOT INR (*KIT1, KIT3) E26 (GW1, JNG) 2007-2009 02
007 BOOT, INBOARD HALFSHAFT (*KIT3) 2004-2009
008 88957218 CЛАМПА, RR WHL DRV SHF TRI-POT JT BOOT (*KIT1, KIT3) E26 (GU5, JNG, MX7) 2007-2009 02
008 88957218 CЛАМПА, RR WHL DRV SHF TRI-POT JT BOOT (*KIT1, KIT3) E26 (GW1, JNG) 2007-2009 02
008 88957222 CЛАМПА, RR WHL DRV SHF TRI-POT JT BOOT (*KIT1, KIT3) EB26 (GU5, MX0) 2007-2009 02
009 15919079 SHAFT, RR WHL DRV (MUST ALSO ORDER DRV SHF NUT 10289657) E26 (GU5, MX7) 2009-2009 01
009 15919079 SHAFT, RR WHL DRV (MUST ALSO ORDER DRV SHF NUT 10289657) EB26 (GW1) 2009-2009 01
009 15919080 SHAFT, RR WHL DRV (MUST ALSO ORDER DRV SHF NUT 10289657) E26 (GU5, MX7) 2008-2009 01
009 15919080 SHAFT, RR WHL DRV (MUST ALSO ORDER DRV SHF NUT 10289657) E26 (GW1) 2008-2009 01
010 89021677 LUBRICANT, GR SYNTHETIC, SAE 75W-90, 1 QT, (R/AXL) (*KIT1, KIT3) 2004-2009 AR
011 88957218 CЛАМПА, RR WHL DRV SHF CV JT BOOT (*KIT2, KIT4) E26 (GU5, JNG, MX7) 2007-2009 02
011 88957218 CЛАМПА, RR WHL DRV SHF CV JT BOOT (*KIT2, KIT4) E26 (GW1, JNG) 2007-2009 02
011 88957222 CЛАМПА, RR WHL DRV SHF CV JT BOOT (*KIT2, KIT4) EB26 (GU5, MX0) 2007-2009 02
012 BOOT, OUTBOARD HALFSHAFT (*KIT4) 2004-2009
013 88957219 CЛАМПА, RR WHL DRV SHF CV JT BOOT OTR (*KIT2, KIT4) E26 (GU5, MX7) 2007-2009 02
013 88957219 CЛАМПА, RR WHL DRV SHF CV JT BOOT OTR (*KIT2, KIT4) E26 (GW1) 2007-2009 02
013 88957223 CЛАМПА, RR WHL DRV SHF CV JT BOOT OTR (*KIT2, KIT4) E26 (GU5, MX0) 2007-2009 02
014 15850906 RING, RR WHL DRV SHF INR CV JT INR RACE RET (*KIT1, KIT2, KIT3, KIT4) EB26 (EXC JNG) 2007-2009 01
015 BALL, RR WHL DRV SHF INR CV (*KIT2) 2004-2009
016 JOINT, RR WHL DRV SHF INR RACE CV (*KIT2) 2004-2009
017 JOINT, CAGE RR WHL DRV SHF CV (*KIT2) 2004-2009
018 89021677 LUBRICANT, GR SYNTHETIC, SAE 75W-90, 1 QT, (R/AXL) (*KIT2, KIT4) 2004-2009 AR
019 JOINT, RR WHL DRV OUTER RACE CV (*KIT2) 2004-2009
020 10289657 ГАЙКА, RR WHL DRV UJT SHF (M24X2.0X19.6) (HEX W/WASHER, PREVAILING TORQUE) (6.056) E26 (GU5, GW1) 2009-2009 02
021 15919079 SHAFT, RR WHL DRV (INCLS 1-20) (MUST ALSO ORDER DRV SHF NUT 10289657) E26 (GU5, MX7) 2009-2009 01
021 15919079 SHAFT, RR WHL DRV (INCLS 1-20) (MUST ALSO ORDER DRV SHF NUT 10289657) EB26 (GW1) 2009-2009 01
021 15919080 SHAFT, RR WHL DRV (INCLS 1-20) (MUST ALSO ORDER DRV SHF NUT 10289657) E26 (GU5, MX7) 2008-2009 01
021 15919080 SHAFT, RR WHL DRV (INCLS 1-20) (MUST ALSO ORDER DRV SHF NUT 10289657) E26 (GW1) 2008-2009 01
021 89060333 SHAFT KIT, RR WHL DRV (INCLS 1-20) EB26 (MX0, GU5) 2007-2009 01
021 89060334 SHAFT KIT, RR WHL DRV (INCLS 1-20) EB26 (MX0, GU5) 2007-2009 01
K03 88957227 BOOT KIT, RR WHL DRV SHF TRI-POT JT (INCLS 6-8, 10, 14) (INCLS RETAINING RING NUT) E26 (GU5, JNG, MX7) 2007-2009 02
K03 88957227 BOOT KIT, RR WHL DRV SHF TRI-POT JT (INCLS 6-8, 10, 14) (INCLS RETAINING RING NUT) E26 (GW1, JNG) 2007-2009 02
K03 88957229 BOOT KIT, RR WHL DRV SHF TRI-POT JT (INCLS 6-8, 10, 14) EB26 (MX0, GU5) 2007-2009 02
K04 88957228 BOOT KIT, RR WHL DRV SHF CV JT (11-14, 18) (INCLS RETAINING RING NUT) E26 (GU5, JNG, MX7) 2007-2009 02
K04 88957228 BOOT KIT, RR WHL DRV SHF CV JT (11-14, 18) (INCLS RETAINING RING NUT) E26 (GW1, JNG) 2007-2009 02
K04 88957230 BOOT KIT, RR WHL DRV SHF CV JT (11-14, 18) EB26 (MX0, GU5) 2007-2009 02
