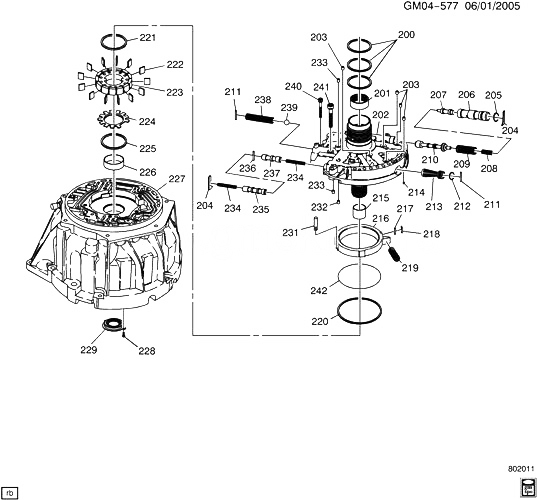

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 200 |
|
RING, REV CLU HSG FLUID SEAL (*KIT1) |
|
2004-2009 |
|
| 201 |
|
BEARING, INPUT SHF (*KIT1) |
|
2004-2009 |
|
| 202 |
|
COVER, A/TRNS ГИДРОНАСОС (*KIT1) |
|
2004-2009 |
|
| 203 |
|
VALVE, A/TRNS ГИДРОНАСОС BALL CHK (*KIT1) |
|
2004-2009 |
|
| 204 |
|
RETAINER, LINE BOOST VLV BUSH (*KIT1) |
|
2004-2009 |
|
| 205 |
|
SEAL, LINE BOOST VLV BUSH (O RING) (*KIT1) |
|
2004-2009 |
|
| 206 |
|
BUSHING, LINE BOOST VLV (*KIT1) |
|
2004-2009 |
|
| 207 |
|
VALVE, LINE BOOS (*KIT1) |
|
2004-2009 |
|
| 208 |
08680684 |
ПРУЖИНА, LINE BOOST VLV (*KIT1) (4.262) (ACDelco #8680684) |
E26 (MX5, M82) |
2008-2009 |
01 |
| 209 |
|
ПРУЖИНА, PRESS REG VLV (*KIT1) |
|
2004-2009 |
|
| 210 |
|
VALVE, PRESS REG (*KIT1) |
|
2004-2009 |
|
| 211 |
|
PIN, A/TRNS ГИДРОНАСОС CVR SCRN (*KIT1) |
|
2004-2009 |
|
| 212 |
08642581 |
SEAL, A/TRNS ГИДРОНАСОС CVR SCRN (*KIT1) (ACDelco #8642581) |
E (LY7, M82) |
2008-2009 |
01 |
| 213 |
|
ФИЛЬТР, PRESS CONT SOL VLV FLUID (*KIT1) |
|
2004-2009 |
|
| 214 |
|
COLLAR, A/TRNS ГИДРОНАСОС CVR HUB (*KIT1) |
|
2004-2009 |
|
| 215 |
|
BUSHING, REV CLU HSG (*KIT1) |
|
2004-2009 |
|
| 216 |
|
SLIDE, A/TRNS ГИДРОНАСОС |
|
2004-2009 |
|
| 217 |
|
SUPPORT, A/TRNS ГИДРОНАСОС SLIDE SEAL (*KIT1) |
|
2004-2009 |
|
| 218 |
|
SEAL, A/TRNS ГИДРОНАСОС SLIDE (*KIT1) |
|
2004-2009 |
|
| 219 |
|
ПРУЖИНА, A/TRNS ГИДРОНАСОС SLIDE (*KIT1) |
|
2004-2009 |
|
| 220 |
|
RING, A/TRNS ГИДРОНАСОС SLIDE FLUID SEAL (*KIT1) |
|
2004-2009 |
|
| 221 |
|
RING, A/TRNS ГИДРОНАСОС VANE |
|
2004-2009 |
|
| 222 |
|
VANE, A/TRNS ГИДРОНАСОС |
|
2004-2009 |
|
| 223 |
|
ROTOR, A/TRNS ГИДРОНАСОС (*KIT1) |
|
2004-2009 |
|
| 224 |
|
GUIDE, A/TRNS ГИДРОНАСОС ROT |
|
2004-2009 |
|
| 225 |
|
RING, A/TRNS ГИДРОНАСОС VANE |
|
2004-2009 |
|
| 226 |
|
BUSHING, T/CV (*KIT1) |
|
2004-2009 |
|
| 227 |
|
ШЛАНГИ, T/CV (*KIT1) |
|
2004-2009 |
|
| 228 |
96015215 |
БОЛТ, T/CV FLUID SEAL (*KIT1) |
E (M82, MX5) |
2008-2009 |
02 |
| 229 |
96041855 |
SEAL, T/CV FLUID
| E (MX5, M82) |
2007-2009 |
01 |
|
| 231 |
|
PIN, A/TRNS ГИДРОНАСОС SLIDE PIV (*KIT1) |
|
2004-2009 |
|
| 232 |
|
ORIFICE, A/TRNS ГИДРОНАСОС AIR BL (*KIT1) |
|
2004-2009 |
|
| 233 |
|
ORIFICE, A/TRNS ГИДРОНАСОС AIR BL (*KIT1) |
|
2004-2009 |
|
| 234 |
|
ПРУЖИНА, TCC C/VLV (*KIT1) |
|
2004-2009 |
|
| 235 |
|
VALVE, TCC CONT (*KIT1) |
|
2004-2009 |
|
| 236 |
|
PIN, A/TRNS ГИДРОНАСОС CVR SCRN (*KIT1) |
|
2004-2009 |
|
| 237 |
|
VALVE, TCC ENABLE (*KIT1) |
|
2004-2009 |
|
| 238 |
08634106 |
ПРУЖИНА, PRESS RLF BALL VLV (*KIT1) (ACDelco #8634106) |
E26 (MX5, M82) |
2008-2009 |
01 |
| 239 |
00147500 |
VALVE, PRESS RLF BALL (*KIT1) |
E26 (MYB, MX5, M82) |
2008-2009 |
01 |
| 240 |
|
БОЛТ, A/TRNS ГИДРОНАСОС CVR (*KIT1) |
|
2004-2009 |
|
| 241 |
|
БОЛТ, A/TRNS ГИДРОНАСОС CVR (*KIT1) |
|
2004-2009 |
|
| 242 |
|
SEAL, A/TRNS O/PMP SLIDE (O RING) (*KIT1) |
|
2004-2009 |
|
| K01 |
96042812 |
ШЛАНГИ KIT, T/CV (INCLS 200-215, 217-220, 223, 226-228, 231-242) (W/МАСЛЯНЫЙ НАСОС) |
E (LY7, M82, MX5) |
2004-2009 |
01 |
