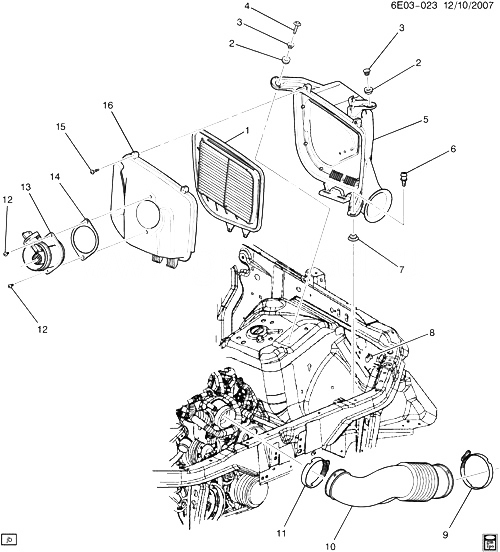

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25798271 |
ELEMENT, КОНДИЦИОНЕРL (ACDelco #A2944C)
| E (LH2, LY7) |
2007-2009 |
01 |
|
| 002 |
|
INSULATOR, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 5) |
|
2007-2009 |
|
| 003 |
|
SPACER, INT AIR DUCT INSL (ЧАСТЬ OF 5) |
|
2007-2009 |
|
| 004 |
11588831 |
SCREW, HEX W/ CON WA, M6X1X35, 33.5 THD, 17 O.D.HDR PT, 9.8, BLK (КОНДИЦИОНЕРL) |
|
2007-2009 |
02 |
| 005 |
19151528 |
COVER, КОНДИЦИОНЕРL HSG LWR (INCLS 2, 3, 7)
| E26 (LY7) |
2007-2009 |
01 |
|
| 006 |
11561910 |
БОЛТ, КОНДИЦИОНЕРL (M6X1.0X24) (T30 TORQ) (SHLDR W/FL WA) |
E (LH2, LY7) |
2007-2009 |
01 |
| 007 |
19177871 |
INSULATOR, КОНДИЦИОНЕРL HSG (ЧАСТЬ OF 5) (MOUNT TO MID RAIL) |
E (LY7) |
2007-2009 |
01 |
| 008 |
11609385 |
ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (КОНДИЦИОНЕРL)
|
2007-2009 |
01 |
|
| 009 |
25733253 |
CЛАМПА, RR INT AIR DUCT (ЧАСТЬ OF 10) (FLEX END) |
E (LY7) |
2007-2009 |
01 |
| 010 |
15812947 |
DUCT, RR INT AIR (W/RESO) (INCLS 9, 11) |
E (LY7) |
2007-2009 |
01 |
| 011 |
25733254 |
CЛАМПА, RR INT AIR DUCT (ЧАСТЬ OF 10) (ELBOW END) |
E (LY7) |
2007-2009 |
01 |
| 012 |
10356575 |
БОЛТ, MASS AIRFLOW SEN (ЧАСТЬ OF 16) |
E (LY7) |
2007-2009 |
02 |
| 013 |
15875837 |
SENSOR, MASS AIRFLOW (ACDelco #213-4250)
| E26 (LY7) |
2007-2009 |
01 |
|
| 014 |
15147456 |
GASKET, MASS AIRFLOW SEN |
E (LY7) |
2009-2009 |
01 |
| 015 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (КОНДИЦИОНЕРL HSG)
|
2007-2009 |
02 |
|
| 016 |
15147455 |
COVER, КОНДИЦИОНЕРL HSG (INCLS 12)
| E26 (LY7) |
2007-2009 |
01 |
|
