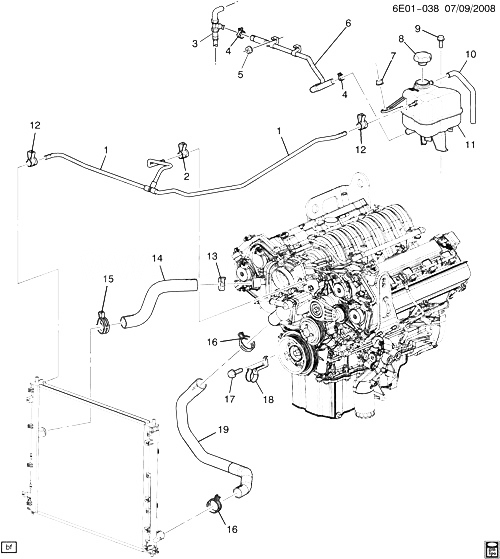

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19129998 |
HOSE, RAD SURGE TK INL |
EB26 (LH2) |
2007-2009 |
01 |
| 002 |
11516215 |
CЛАМПА, ПРУЖИНАBAND, HOSE DIA 17MM, WIDTH 15MM, 6298M (RAD SURGE TK INL HOSE) |
|
2007-2009 |
01 |
| 003 |
|
HOSE, HTR INL OTLT (СМ. ГРУППУ 08.000 ШЛАНГИИ ТРУБКИ НАГРЕВАТЕЛЯ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 004 |
11517136 |
CЛАМПА, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (ЧАСТЬ OF 6) |
|
2007-2009 |
02 |
| 005 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (RAD SURGE TK OTLT HOSE CLIP BRKT) |
|
2007-2009 |
02 |
| 006 |
88956890 |
HOSE, RAD SURGE TK OTLT (INCLS 4) (8.846) |
EB (LH2) |
2007-2009 |
01 |
| 007 |
11514517 |
ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (RAD SURGE TK)
|
2007-2009 |
01 |
|
| 008 |
15075118 |
CAP, RAD SURGE TK (ЧАСТЬ OF 11) (15 PSI DUAL O-RING) (ENGLISH/FRENCH LABEL) (ACDelco #RC98)
| E |
2007-2009 |
01 |
|
| 009 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (RAD SURGE TK) (ACDelco #11517518)
|
2007-2009 |
01 |
|
| 010 |
25757865 |
HOSE, RAD SURGE TK OVFL (ЧАСТЬ OF 11) |
EB26 |
2007-2009 |
01 |
| 011 |
15882261 |
TANK, RAD SURGE (INCLS 8, 10) (ACDelco #15882261) |
EB |
2007-2009 |
01 |
| 012 |
11570614 |
CЛАМПА-ПРУЖИНАBAND, 15 NOMINAL DIA, 15 THK, STL, ROBO (RAD SURGE TK INL HOSE) |
|
2007-2009 |
02 |
| 013 |
19130238 |
CЛАМПА, RAD INL HOSE (ЧАСТЬ OF 14) |
E (LC3, LH2) |
2007-2009 |
01 |
| 014 |
25974695 |
HOSE, RAD INL (INCLS 13, 15) |
E26 (LH2, JJB, V92) |
2008-2009 |
01 |
| 014 |
25974696 |
HOSE, RAD INL (INCLS 13, 15) |
E26 (LH2, JJB) (EXC V92) |
2008-2009 |
01 |
| 014 |
89023434 |
HOSE, RAD INL (INCLS 13, 15)
| E (LH2, V92) |
2007-2009 |
01 |
|
| 014 |
89023438 |
HOSE, RAD INL (INCLS 13, 15)
| E (LH2) (EXC V92) |
2007-2009 |
01 |
|
| 015 |
11570869 |
CЛАМПА-ПРУЖИНАBAND, 41MM NOMINAL DIA, 15MM WIDTH, STEEL, GRAY ROBO. (ЧАСТЬ OF 14) |
|
2007-2009 |
01 |
| 016 |
11570869 |
CЛАМПА-ПРУЖИНАBAND, 41MM NOMINAL DIA, 15MM WIDTH, STEEL, GRAY ROBO. (ЧАСТЬ OF 19) |
|
2007-2009 |
02 |
| 017 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (RAD OTLT HOSE BRKT) (T/W 12345493 REPLCS 25534835)
|
2007-2009 |
01 |
|
| 018 |
15261734 |
BRACKET, RAD OTLT HOSE |
E (LH2, V92) |
2007-2009 |
01 |
| 018 |
25752529 |
BRACKET, RAD OTLT HOSE |
E (LH2) (EXC V92) |
2007-2009 |
01 |
| 019 |
89023433 |
HOSE, RAD OTLT (INCLS 16) |
E (LH2) |
2007-2009 |
01 |
