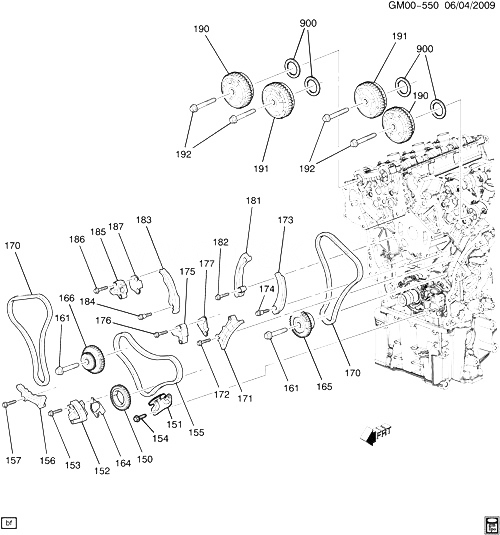

(GM00-550) - 2007-2009 E ДВИГАТЕЛЬ В СБОРЕ-3.6L V6 ЧАСТЬ 6 ЦЕПЬ И НАТЯЖИТЕЛЬ (LY7/3.6-7) CADILLAC - SRX 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
150 12599721 SPROCKET, CR/SHF E (LY7) 2008-2009 01
151 12586959 GUIDE, TMG CHAIN (2 КРЕПЛЕНИЕ HOLES) (LOWER PRIMARY) E (LY7) 2007-2009 01
152 12609262 РОЛИК НАТЯЖИТЕЛЬ, CM/SHF INTER DRV CHAIN (INCLS 153, 164) (INCLS БОЛТS, RETAINER, GSKT) E (LY7) 2007-2009 01
153 11588255 БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 152) 2007-2009 02
154 11588725 БОЛТ, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (TMG CHAIN GDE) 2007-2009 02
155 12616609 CHAIN, CM/SHF INTER DRV (PRIMARY) E (LY7) 2007-2009 01
156 12597417 GUIDE, TMG CHAIN (INCLS 157) (UPPER PRIMARY) E (LY7) 2007-2009 01
157 11588255 БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 156) 2007-2009 02
161 11588252 БОЛТ, HFH, RDUCD BDY, M6X1X70, 18 THD, 14.2 O.D., 8.8, GMW3179 CODE G (ЧАСТЬ OF 165, 166) 2007-2009 02
164 12589477 GASKET, TMG CHAIN HSG (ЧАСТЬ OF 152) (PRIMARY) E26 (LY7) 2007-2009 01
165 12612839 SPROCKET, TMG CHAIN IDLER (INCLS 161) (0.736) E (LY7) 2007-2009 01
166 12612838 SPROCKET, TMG CHAIN IDLER (INCLS 161) (0.736) E (LY7) 2007-2009 01
170 12616608 CHAIN, CM/SHF INTER DRV (SECONDARY) E (LY7) 2007-2009 02
171 12600461 GUIDE, TMG CHAIN (INCLS 172) (2 КРЕПЛЕНИЕ HOLES) (SECONDARY) E (LY7) 2007-2009 01
172 11588255 БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 171) 2007-2009 02
173 12586960 GUIDE, TMG CHAIN (SINGLE КРЕПЛЕНИЕ HOLE) (PIVOT ARM) E (LY7) 2007-2009 01
174 11518858 БОЛТ, HFH, M8X1.25X43, 16 THD, 18 O.D., 8.8, GMW3179 (TMG CHAIN TENSR) 2007-2009 01
175 12609260 РОЛИК НАТЯЖИТЕЛЬ, TMG CHAIN (INCLS 176, 177) (SECONDARY) (INCLS БОЛТS, RETAINER, GSKT) E (LY7) 2007-2009 01
176 11588255 БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 175) 2007-2009 02
177 12589478 GASKET, TMG CHAIN HSG (ЧАСТЬ OF 175) E26 (LY7) 2007-2009 01
181 12586961 GUIDE, TMG CHAIN (INCLS 182) (SINGLE КРЕПЛЕНИЕ HOLE) (PIVOT ARM) E (LY7) 2007-2009 01
182 11588255 БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 181) 2007-2009 02
183 12600462 GUIDE, TMG CHAIN (2 КРЕПЛЕНИЕ HOLES) (SECONDARY) E (LY7) 2007-2009 01
184 11518858 БОЛТ, HFH, M8X1.25X43, 16 THD, 18 O.D., 8.8, GMW3179 (TMG CHAIN TENSR) 2007-2009 01
185 12609258 РОЛИК НАТЯЖИТЕЛЬ, TMG CHAIN (INCLS 186, 187) (SECONDARY) (INCLS БОЛТS, RETAINER, GSKT) E (LY7) 2007-2009 01
186 11588255 БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 185) 2007-2009 02
187 12589479 GASKET, TMG CHAIN HSG (ЧАСТЬ OF 185) E26 (LY7) 2007-2009 01
190 12606653 ACTUATOR, CM/SHF POSN (EXH) (USE WASHER 12630941) E (LY7) 2007-2009 02
191 12626160 ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12632859) (4 SCREWS ON BACKPLATE) EB (LY7) 2009-2009 01
191 12626161 ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12632859) (4 SCREWS ON BACKPLATE) EB (LY7) 2009-2009 01
192 11588279 БОЛТ, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN ACTR) 2007-2009 04
900 12630941 WASHER, CM/SHF THR (USED ON ACTUATORS 12603744-745, 12606653 12630916-918) (**FIELD FIX ONLY, DO NOT CATALOG**) E (LY7) 2007-2009 02
