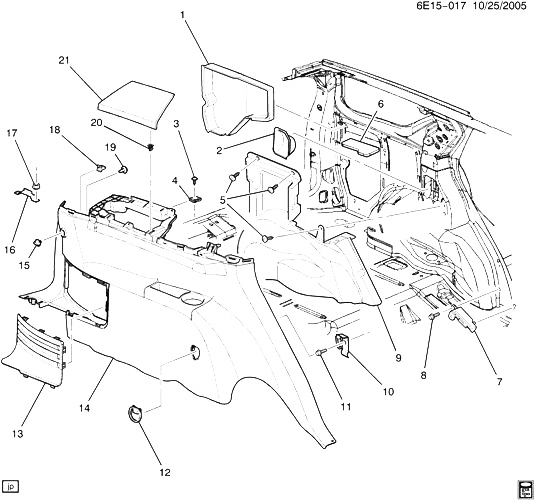

(6E15-017) - 2006-2009 E ОТДЕЛКА/QUARTER-LH CADILLAC - SRX 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10374321 BARRIER, QTR INR PNL RR SND E 2006-2009 01
002 25762934 BARRIER, C/PLR INR PNL SND E 2006-2009 01
003 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (ЧАСТЬ OF 14) 2006-2009 02
004 25605716 ГАЙКА, ASST HDL (ЧАСТЬ OF 14) (13.8 X 14.9, 15.3) (U-SHAPED) (8.133) E 2006-2009 01
005 20030401 RETAINER, RR W/H INR PNL FRT SND BARR (BLACK) (12.804) E 2006-2009 04
006 25753659 INSULATOR, C/PLR INR PNL (STUFFER-SEAT BELT) E 2006-2009 02
007 BRACKET, BODY SI RR LWR T/PNL 2006-2009
008 11517484 БОЛТ-HEX, M6X1X20, 9 THD, 17 OD, 9.8, 6280M, MACH, P-PT (BODY SI RR LWR T/PNL BRKT) 2006-2009 01
009 10374313 BARRIER, RR W/H INR PNL SND E 2006-2009 01
010 25764204 HOOK, CARGO TIE DN (W/STRAIGHT BRKT) E 2006-2009 04
011 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (CARGO TIE DN HOOK) (8.907) 2006-2009 04
012 15261664 BEZEL, CARGO TIE DN LOOP (CASHMERE) (QTR TRIM PANEL W/CHILD RESTRAINT) E (39I) 2007-2009 02
012 25764200 BEZEL, CARGO TIE DN LOOP (BODY SI RR TRIM PNL) (GRAY) (W/CHILD RESTRAINT) E (13I) 2006-2009 02
012 25764202 BEZEL, CARGO TIE DN LOOP (BODY SI RR TRIM PNL) (EBONY) (W/CHILD RESTRAINT) E (19I) 2006-2009 02
013 89022739 COVER, VENT INL OPG (ЧАСТЬ OF 14) (GRAY) (9.665) E (13I) 2006-2009 01
013 89022741 COVER, VENT INL OPG (ЧАСТЬ OF 14) (BLACK) (9.665) E (19I) 2006-2009 01
013 89026113 COVER, VENT INL OPG (ЧАСТЬ OF 14) (CASHMERE) E (39I) 2007-2009 01
014 15935573 PANEL, BODY SI LWR TR (INCLS 3, 4, 13, 15, 18, 19) (EBONY) (NON 6WAY PWR SEAT) (INCLS CUP ДЕРЖАТЕЛЬ) E (19I) 2006-2009 01
014 25937482 PANEL, BODY SI LWR TR (INCLS 3, 4, 13, 15, 18, 19) (GRAY) (NON 6WAY PWR SEAT) (INCLS CUP ДЕРЖАТЕЛЬ) E (13I) 2006-2009 01
014 25937483 PANEL, BODY SI LWR TR (INCLS 3, 4, 13, 15, 18, 19) (CASHMERE) (INCLS CUP ДЕРЖАТЕЛЬ) E (39I) 2007-2009 01
015 21994244 HOOK, CONVENIENCE NET SNAP (ЧАСТЬ OF 14) E 2006-2009 01
016 25755415 BRACKET, R/FLR PNL CPT RET E 2006-2009 02
017 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (R/FLR PNL CPT RET BRKT) 2006-2009 04
018 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 14) 2006-2009 13
019 11609465 БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (ЧАСТЬ OF 14) (8.977) 2006-2009 01
020 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 21) 2006-2009 04
021 15217913 FILLER, BODY SI LWR T/PNL (INCLS 20) (GRAY) E (13I, 19I) 2006-2009 01
021 15217914 FILLER, BODY SI LWR T/PNL (INCLS 20) (CASHMERE) E (39I) 2007-2009 01
