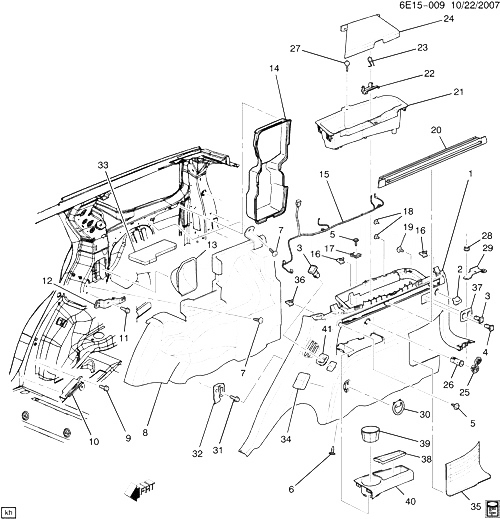

(6E15-009) - 2004-2009 E ОТДЕЛКА/QUARTER-RH(AM0) CADILLAC - SRX 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25852471 PANEL, BODY SI LWR TR (INCLS 2-6, 15-27, 34-41) (EBONY) E (AM0, AU5, 19I) 2008-2009 01
001 25852472 PANEL, BODY SI LWR TR (INCLS 2-6, 15-27, 34-41) (GRAY) E (AM0, AU5, 13I) 2008-2009 01
001 25852473 PANEL, BODY SI LWR TR (INCLS 2-6, 15-27, 34-41) (CASHMERE) E (AM0, AU5, 39I) 2008-2009 01
001 25852475 PANEL, BODY SI LWR TR (INCLS 2-6, 15-27, 34-41) (EBONY) E (AM0, AU8, 19I) 2008-2009 01
001 25852476 PANEL, BODY SI LWR TR (INCLS 2-6, 15-27, 34-41) (GRAY) E (AM0, AU8, 13I) 2008-2009 01
001 25852477 PANEL, BODY SI LWR TR (INCLS 2-6, 15-27, 34-41) (CASHMERE) E (AM0, AU8, 39I) 2008-2009 01
001 25852479 PANEL, BODY SI LWR TR (INCLS 2-6, 15-27, 34-41) (EBONY) EB (AM0, 19I) (EXC AU5, AU8) 2008-2009 01
001 25927008 PANEL, BODY SI LWR TR (INCLS 2-6, 15-27, 34-41) (GRAY) EB (AM0, 13I) (EXC AU5, AU8) 2008-2009 01
001 25927009 PANEL, BODY SI LWR TR (INCLS 2-6, 15-27, 34-41) (CASHMERE) EB (AM0, 39I) (EXC AU5, AU8) 2008-2009 01
002 21994244 HOOK, CONVENIENCE NET SNAP (ЧАСТЬ OF 1) E 2004-2009 01
003 25773273 SWITCH, R/SEAT #2 FLDG ACTR (ON BODY SIDE PANEL) (ЧАСТЬ OF 1) (EBONY) E 2004-2009 02
004 25773272 SWITCH, ST RECL (ЧАСТЬ OF 1) E 2004-2009 01
005 15714276 SCREW, HWH, W/FL WA, SELF TAP, M4.2X1.41X18, 12.5 O.D., 6010M, PS (ЧАСТЬ OF 1) (8.977) 2004-2009 04
006 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (ЧАСТЬ OF 1) 2004-2009 04
007 20030401 RETAINER, RR W/H INR PNL FRT SND BARR (BLACK) (12.804) E 2004-2009 04
008 25733073 BARRIER, RR W/H INR PNL SND E 2004-2009 01
009 11517484 БОЛТ-HEX, M6X1X20, 9 THD, 17 OD, 9.8, 6280M, MACH, P-PT (BODY SI RR LWR T/PNL BRKT) 2004-2009 01
010 BRACKET, BODY SI RR LWR T/PNL 2004-2009
011 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (ASST HDL BRKT) (T/W 12345493 REPLCS 25534835) 2004-2009 01
012 25755417 BRACKET, ASST HDL (QTR TRIM) E 2004-2009 01
013 25762935 BARRIER, C/PLR INR PNL SND E 2004-2009 01
014 25762937 BARRIER, QTR INR PNL RR SND E 2004-2009 01
015 15834925 HARNESS, ST RECL WRG (ELEMENT) (ЧАСТЬ OF 1) E26 (AM0) 2007-2009 01
016 11588650 CLIP, 12X14X16.6, GM4345M (ЧАСТЬ OF 1) 2004-2009 19
017 25605716 ГАЙКА, ASST HDL (ЧАСТЬ OF 1) (13.8 X 14.9, 15.3) (U-SHAPED) (8.133) E26 2004-2009 02
018 БОЛТ, SHADE ASM LUGG (ЧАСТЬ OF 1) 2004-2009
019 11609374 БОЛТ-WASHER, M6X1X16, 17 OD, 12 THD, 9.8, GMW3359, 1.47 H-REG FL WA. (ЧАСТЬ OF 1) 2004-2009 01
020 15217894 SHADE, LUGG (ЧАСТЬ OF 1) (EBONY) E (19I) 2006-2009 01
020 15217895 SHADE, LUGG (ЧАСТЬ OF 1) (GRAY) E (13I) 2006-2009 01
020 15217896 SHADE, LUGG (ЧАСТЬ OF 1) (CASHMERE) E (39I) 2007-2009 01
021 BIN, STORAGE (ЧАСТЬ OF 1) 2004-2009
022 25737727 LATCH, BODY SI T/PNL OPG ACC CVR (ЧАСТЬ OF 1) (PEWTER) (10.240) E 2004-2009 02
023 25737728 ПРУЖИНА, BODY SI T/PNL OPG ACC CVR LAT (ЧАСТЬ OF 1) (10.240) E 2004-2009 01
024 88957058 LID, CARGO BOX STOW BOX (ЧАСТЬ OF 1) (GRAY) E (19I) 2007-2008 01
024 89026110 LID, CARGO BOX STOW BOX (STORAGE BIN LID) (ЧАСТЬ OF 1) (CASHMERE) E (39I) 2007-2009 01
025 15187371 RETAINER, ACSRY PWR RCPT (ЧАСТЬ OF 1) (EBONY) (INCLS COVER) E 2004-2009 AR
026 25774623 RECEPTACLE, ACSRY PWR (ЧАСТЬ OF 1) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) E 2004-2009 AR
027 25625848 BUMPER, BODY SI T/PNL OPG ACC CVR (ЧАСТЬ OF 1) (8.8 DIA X 6.6 H) (10.263) E 2004-2009 02
028 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (R/FLR PNL CPT RET BRKT) 2004-2009 04
029 25755415 BRACKET, R/FLR PNL CPT RET E 2004-2009 02
030 15261664 BEZEL, CARGO TIE DN LOOP (CASHMERE) (QTR TRIM PANEL W/CHILD RESTRAINT) E (39I) 2007-2009 02
030 25764200 BEZEL, CARGO TIE DN LOOP (GRAY) (W/CHILD RESTRAINT) E (13I) 2004-2009 02
030 25764202 BEZEL, CARGO TIE DN LOOP (EBONY) (W/CHILD RESTRAINT) E (19I) 2004-2009 02
031 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (CARGO TIE DN HOOK) (8.907) 2004-2009 04
032 25764204 HOOK, CARGO TIE DN (W/STRAIGHT BRKT) E 2004-2009 04
033 25753659 INSULATOR, C/PLR INR PNL (STUFFER-SEAT BELT) E 2004-2009 02
034 25769663 LABEL, RR CTR ST SAFETY INFO (ЧАСТЬ OF 1) E (AM0) 2004-2009 02
035 88957050 GRILLE, RDO R/Q TR PNL SPKR (ЧАСТЬ OF 1) (GRAY) E26 (13I) 2004-2009 01
035 88957052 GRILLE, RDO R/Q TR PNL SPKR (ЧАСТЬ OF 1) (BLACK) E26 (AU5, 19I) 2004-2009 01
035 88957052 GRILLE, RDO R/Q TR PNL SPKR (ЧАСТЬ OF 1) (BLACK) E26 (AU8, 19I) 2004-2009 01
035 89026111 GRILLE, RDO R/Q TR PNL SPKR (ЧАСТЬ OF 1) (CASHMERE) E26 (39I) 2007-2009 01
036 25725191 CLIP, ASST HDL (ЧАСТЬ OF 1) (GREEN) (18X12.5, SAE 1050STL) (CLIP TO HOLD M4.2X1.41 SCREW, PNL RING 0.94-3.5) (14.640) E 2004-2009 04
037 19177898 BEZEL, ST ADJR SW (ЧАСТЬ OF 1) (GRAY) (DUAL SWITCH) E26 (AM0, 13I) 2004-2009 01
037 19177899 BEZEL, ST ADJR SW (ЧАСТЬ OF 1) (GRAY) (DUAL SWITCH) E26 (AM0, 19I) 2007-2009 01
037 19178072 BEZEL, ST ADJR SW (ЧАСТЬ OF 1) (CASHMERE) (DUAL SWITCH) EE26 (39I) 2007-2008 01
037 19178072 BEZEL, ST ADJR SW (ЧАСТЬ OF 1) (CASHMERE) (DUAL SWITCH) EB26 (39I) 2007-2009 01
038 TRAY, BODY SI T/PNL (ЧАСТЬ OF 1, 40) 2004-2009
039 INSERT, BODY SI FRT T/PNL CUP HLDR (ЧАСТЬ OF 1, 40) 2004-2009
040 19177890 ДЕРЖАТЕЛЬ, BODY SI T/PNL CUP (ЧАСТЬ OF 1) (INCLS 38, 39) (GRAY) E (13I) 2006-2009 01
040 19177891 ДЕРЖАТЕЛЬ, BODY SI T/PNL CUP (ЧАСТЬ OF 1) (INCLS 38, 39) (EBONY) E (19I) 2006-2009 01
040 19178070 ДЕРЖАТЕЛЬ, BODY SI T/PNL CUP (ЧАСТЬ OF 1) (INCLS 38, 39) (CASHMERE) E (39I) 2008-2009 01
041 19177894 BEZEL, ST ADJR SW (ЧАСТЬ OF 1) (GRAY) (SINGLE SWITCH) E26 (AM0, 13I) 2004-2009 01
041 19177895 BEZEL, ST ADJR SW (ЧАСТЬ OF 1) (GRAY) (SINGLE SWITCH) E26 (AM0, 19I) 2007-2009 01
041 19178071 BEZEL, ST ADJR SW (ЧАСТЬ OF 1) (CASHMERE) (SINGLE SWITCH) EE26 (39I) 2007-2008 01
041 19178071 BEZEL, ST ADJR SW (ЧАСТЬ OF 1) (CASHMERE) (SINGLE SWITCH) EB26 (39I) 2007-2009 01
