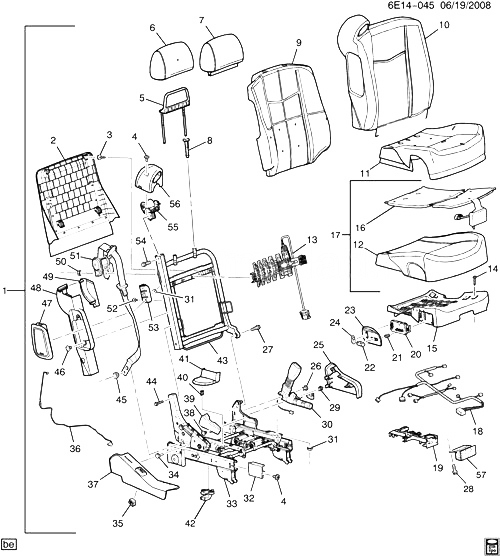

(6E14-045) - 2007-2009 E СИДЕНЬЕ ПАССАЖИРА (POWER ADJUSTER AH8) CADILLAC - SRX 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10382973 SEAT, PASS (INCLS 2-57) (GRAY) EB (AH8, AL2, AQ9, KA1, 132) (EXC AX4, MTF) 2007-2009 01
001 10382974 SEAT, PASS (INCLS 2-57) (EBONY) EB (AH8, AL2, AQ9, KA1, 192) (EXC AX4, MTF) 2007-2009 01
001 10382975 SEAT, PASS (INCLS 2-57) (CASHMERE) EB (AH8, AL2, AQ9, KA1, 392) (EXC AX4, MTF) 2007-2009 01
001 10382977 SEAT, PASS (INCLS 2-57) (GRAY) EB (AH8, AL2, AQ9, AX4, KA1, 132) (EXC MTF) (EXPORT) 2007-2009 01
001 10382978 SEAT, PASS (INCLS 2-57) (EBONY) EB (AH8, AL2, AQ9, AX4, KA1, 192) (EXC MTF) (EXPORT) 2007-2009 01
001 10382979 SEAT, PASS (INCLS 2-57) (CASHMERE) EB (AH8, AL2, AQ9, AX4, KA1, 392) (EXC MTF) (EXPORT) 2007-2009 01
001 10382981 SEAT, PASS (INCLS 2-57) (GRAY) EB (AH8, AL2, AQ9, AX4, KA1, MTF, 132) (EXPORT) 2007-2009 01
001 10382982 SEAT, PASS (INCLS 2-57) (EBONY) EB (AH8, AL2, AQ9, AX4, KA1, MTF, 192) (EXPORT) 2007-2009 01
001 10382983 SEAT, PASS (INCLS 2-57) (CASHMERE) EB (AH8, AL2, AQ9, AX4, KA1, MTF, 392) (EXPORT) 2007-2009 01
001 15786317 SEAT, PASS (INCLS 2-57) (GRAY) EE (AH8, AL2, AQ9, KA1, 132) (EXPORT) 2008-2008 01
001 15786318 SEAT, PASS (INCLS 2-57) (EBONY) EE (AH8, AL2, AQ9, KA1, 192) (EXPORT) 2008-2008 01
001 15786319 SEAT, PASS (INCLS 2-57) (CASHMERE) EE (AH8, AL2, AQ9, KA1, 392) (EXPORT) 2008-2008 01
002 19122657 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (CASHMERE) (W/MESH MAP PKT) EE (39I) (EXPORT) 2007-2008 01
002 19122658 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (CASHMERE) (W/MESH MAP PKT) EB (39I) 2007-2009 01
002 88895403 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (GRAY) (W/MESH MAP PKT) EE (13I) (EXPORT) 2007-2008 01
002 88895407 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (GRAY) (W/MESH MAP PKT) EB (13I) 2007-2009 01
002 88992613 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (EBONY) (W/MESH MAP PKT) EE (19I) (EXPORT) 2007-2008 01
002 88992614 PANEL, P/SEAT BK CUSH FIN (INCLS 3) (EBONY) (W/MESH MAP PKT) EB (19I) 2007-2009 01
003 10421018 RETAINER, P/SEAT BK CUSH CVR (ЧАСТЬ OF 2) (NATURAL) (4MM HOLE, 33MM) (15.100) E 2007-2009 03
004 88897272 БОЛТ, P/SEAT (TOWER COVER) E 2007-2009 06
005 88897670 SUPPORT, P/SEAT H/RST E 2007-2009 01
006 88898400 PAD, P/SEAT H/RST E 2007-2009 01
007 19122828 COVER, P/SEAT H/RST (CASHMERE) E (392) 2007-2009 01
007 88897971 COVER, P/SEAT H/RST (GRAY) E (132) 2007-2009 01
007 88992582 COVER, P/SEAT H/RST (EBONY) E (192) 2007-2009 01
008 19122625 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) E (19I) 2007-2009 01
008 19122627 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) E (19I) 2007-2009 01
008 19122701 GUIDE, P/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/O BUTTON) E (39I) 2007-2009 01
008 19122702 GUIDE, P/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/BUTTON) E (39I) 2007-2009 01
008 88994730 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) E (13I) 2007-2009 01
008 88994731 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) E (13I) 2007-2009 01
009 88994770 PAD, P/SEAT BK CUSH EE (AL2) (EXPORT) 2007-2008 01
009 88994771 PAD, P/SEAT BK CUSH EB (AH8) 2007-2009 01
010 19122819 COVER, P/SEAT BK CUSH (CASHMERE) EB (AQ9, 392) (EXC KA1) 2007-2009 01
010 19123302 COVER, P/SEAT BK CUSH (GRAY) EB (AQ9, KA1, 132) 2007-2009 01
010 19123303 COVER, P/SEAT BK CUSH (GRAY) EE (AH8, AL2, AQ9, KA1, 132) (EXPORT) 2007-2008 01
010 19123306 COVER, P/SEAT BK CUSH (EBONY) (WITH 4 TERMINALS) EB (AQ9, KA1, 192) 2007-2009 01
010 19123307 COVER, P/SEAT BK CUSH (EBONY) EE (AH8, AL2, AQ9, KA1, 192) (EXPORT) 2007-2008 01
010 19123308 COVER, P/SEAT BK CUSH (CASHMERE) EB (AQ9, KA1, 392) 2007-2009 01
010 19123309 COVER, P/SEAT BK CUSH (CASHMERE) EE (AH8, AL2, AQ9, KA1, 392) (EXPORT) 2007-2008 01
010 88994455 COVER, P/SEAT BK CUSH (GRAY) EB (AQ9, 132) (EXC KA1) 2007-2009 01
010 88994456 COVER, P/SEAT BK CUSH (EBONY) EB (AQ9, 192) (EXC KA1) 2007-2009 01
011 19123312 COVER, P/SEAT CUSH (GRAY) EB (AQ9, KA1, 132) 2007-2009 01
011 19123313 COVER, P/SEAT CUSH (GRAY) EE (AH8, AL2, AQ9, 132) (EXPORT) 2007-2008 01
011 19123316 COVER, P/SEAT CUSH (EBONY) EB (AQ9, KA1, 192) 2007-2009 01
011 19123317 COVER, P/SEAT CUSH (EBONY) EE (AH8, AL2, AQ9, 192) (EXPORT) 2007-2008 01
011 19123318 COVER, P/SEAT CUSH (CASHMERE) EB (AQ9, KA1, 392) 2007-2009 01
011 19123319 COVER, P/SEAT CUSH (CASHMERE) EE (AH8, AL2, AQ9, 392) (EXPORT) 2007-2008 01
012 PAD, P/SEAT CUSH (ЧАСТЬ OF 17) 2007-2009
013 88994087 LUMBAR SUB, P/SEAT (W/O MEMORY) EE (EXPORT) 2007-2008 01
013 88994089 LUMBAR SUB, P/SEAT (W/LUMBAR MOTOR) EB (AL2) 2007-2009 01
014 БОЛТ, P/SEAT CUSH FRM (ЧАСТЬ OF 15) 2007-2009
015 19123428 РАМА, P/SEAT CUSH (INCLS 14) (PWR) EE (EXPORT) 2007-2008 01
015 19123429 РАМА, P/SEAT CUSH (INCLS 14) (PWR) EB (AH8) 2007-2009 01
016 SENSOR, INFL RST FRT PASS PRESENCE (ЧАСТЬ OF 17) 2007-2009
017 19124197 МОДУЛЬ KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 12, 16) EE (AQ9) (EXPORT) 2007-2008 01
017 19124202 МОДУЛЬ KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 12, 16) (INCLS PAD SENSOR ASM) EB (AQ9) 2007-2009 01
018 19123446 HARNESS, P/SEAT WRG (INCLS 19) EB26 (AH8, AL2, AQ8, IL2) (EXC MTF) 2007-2008 01
018 19123446 HARNESS, P/SEAT WRG (INCLS 19) EB26 (AH8, AL2, AQ9, IL2, KA1) 2007-2009 01
018 19123451 HARNESS, P/SEAT WRG (INCLS 19) EE26 (AH8, AL2, AQ8, IL2) 2007-2008 01
019 SHIELD, WRG HARNESS (ЧАСТЬ OF 18) 2007-2009
020 12450263 SWITCH, P/SEAT RECL (INCLS ADJR SWITCH) (8-WAY) EE (EXPORT) 2007-2008 01
020 12450264 SWITCH, P/SEAT RECL (8-WAY) EB (AH8) 2007-2009 01
021 RETAINER, P/SEAT ADJR FIN CVR (ЧАСТЬ OF 23) 2007-2009
022 10367220 KNOB, P/SEAT ADJR SW (CASHMERE) E (39I) 2007-2009 01
022 15210788 KNOB, P/SEAT ADJR SW (CASHMERE) (11.377) EE (39I) (EXPORT) 2007-2008 01
022 25721217 KNOB, P/SEAT ADJR SW (GRAY) E (13I) 2007-2009 01
022 25749092 KNOB, P/SEAT ADJR SW (EBONY) E (19I) 2007-2009 01
023 19122670 BEZEL, P/SEAT ADJR SW (INCLS 21) (CASHMERE) EB (AH8, 39I) 2007-2009 01
023 19122810 BEZEL, P/SEAT ADJR SW (INCLS 21) (CASHMERE) EE (39I) (EXPORT) 2007-2008 01
023 88895395 BEZEL, P/SEAT ADJR SW (INCLS 21) (GRAY) EE (13I) (EXPORT) 2007-2008 01
023 88895399 BEZEL, P/SEAT ADJR SW (INCLS 21) (GRAY) EB (AH8, 13I) 2007-2009 01
023 88992623 BEZEL, P/SEAT ADJR SW (INCLS 21) (EBONY) EE (19I) (EXPORT) 2007-2008 01
023 88992624 BEZEL, P/SEAT ADJR SW (INCLS 21) (EBONY) EB (AH8, 19I) 2007-2009 01
024 15210789 KNOB, P/SEAT RECL (CASHMERE) EB (39I) 2007-2009 01
024 25721215 KNOB, P/SEAT RECL (GRAY) E (13I) 2007-2009 01
024 25749093 KNOB, P/SEAT RECL (EBONY) EE (19I) (EXPORT) 2007-2008 01
024 25749094 KNOB, P/SEAT RECL (EBONY) EB (19I) 2007-2009 01
025 19122660 COVER, P/SEAT RECL LWR FIN (CASHMERE) (INR) EB (39I) 2007-2009 01
025 88895367 COVER, P/SEAT RECL LWR FIN (GRAY) (INR) EE (13I) 2007-2008 01
025 88895371 COVER, P/SEAT RECL LWR FIN (GRAY) (INR) EB (13I) 2007-2009 01
025 88992615 COVER, P/SEAT RECL LWR FIN (EBONY) (INR) EE (19I) 2007-2008 01
025 88992616 COVER, P/SEAT RECL LWR FIN (EBONY) (INR) EB (19I) 2007-2009 01
026 11517996 ГАЙКА, P/SEAT BELT (BKL SI) (M10X1.5, 11.2 THK) (8.917) E 2007-2008 01
026 25604879 ГАЙКА, P/SEAT BELT (BKL SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) E 2008-2008 01
026 88952627 ГАЙКА, P/SEAT BELT (BKL SI) (TUBE NUT) (11.556) E (AQ9) 2007-2009 01
027 88952646 БОЛТ, P/SEAT BK CUSH FRM (11.628) E 2007-2009 01
028 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (P/SEAT CUSH FRM) (8.977) 2007-2009 04
029 21303269 CLIP, NARROW POINT - 0.63 SPR STL SAE 1050, GM 4345M 6D 96/48 YELLOW CR (ЧАСТЬ OF 25) 2007-2009 02
030 BELT, P/SEAT (BKL SI) (СМ. ГРУППУ 14.000 РЕМНИ БЕЗОПАСНОСТИ-ПЕРЕДНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2009
031 11505483 ГАЙКА, INFL RST P/SEAT SI MDL (8.934) E 2007-2009 05
031 11517068 ГАЙКА, INFL RST P/SEAT SI MDL (M6X1X3, 14.2 O.D.) (8.917) E 2007-2009 04
032 19122812 COVER, P/SEAT ADJR FIN (CASHMERE) (FRT) EE (39I) (EXPORT) 2007-2008 01
032 19122813 COVER, P/SEAT ADJR FIN (CASHMERE) (FRT) EB (39I) 2007-2009 01
032 19122816 COVER, P/SEAT ADJR FIN (CASHMERE) (RR) EB (39I) 2007-2009 01
032 88898395 COVER, P/SEAT ADJR FIN (GRAY) (RR) EB (13I) 2007-2009 01
032 88898399 COVER, P/SEAT ADJR FIN (GRAY) (FRT) EE (13I) (EXPORT) 2007-2008 01
032 88898402 COVER, P/SEAT ADJR FIN (GRAY) (FRT) EB (13I) 2007-2009 01
032 88993348 COVER, P/SEAT ADJR FIN (EBONY) (FRT) EE (19I) (EXPORT) 2007-2008 01
032 88993349 COVER, P/SEAT ADJR FIN (EBONY) (FRT) EB (19I) 2007-2009 01
032 88993350 COVER, P/SEAT ADJR FIN (EBONY) (RR) EB (19I) 2007-2009 01
033 19123458 ADJUSTER, P/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/PASSENGER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (PWR) EB (AH8) 2007-2009 01
033 19123460 ADJUSTER, P/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/PASSENGER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (PWR) EE (EXPORT) 2007-2008 01
034 RETAINER, P/SEAT RECL (ЧАСТЬ OF 37) 2007-2009
035 10315826 SWITCH, P/SEAT LUMBAR CONT (EBONY) E (AL2, 19I) 2007-2009 01
035 15210786 SWITCH, P/SEAT LUMBAR CONT (CASHMERE) E (AL2, 39I) 2007-2009 01
035 25772913 SWITCH, P/SEAT LUMBAR CONT (GRAY) E (AL2, 13I) 2007-2009 01
036 15829204 HARNESS, INFL RST WRG E26 2007-2009 01
036 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) E 2007-2009 01
037 19122804 COVER, P/SEAT RECL LWR FIN (CASHMERE) (OTR) (W/LUMBAR SWITCH BEZEL) EE (39I) 2007-2008 01
037 19122805 COVER, P/SEAT RECL LWR FIN (CASHMERE) (OTR) (W/LUMBAR SWITCH BEZEL) EB (AH8, AL2, 39I) 2007-2009 01
037 88994764 COVER, P/SEAT RECL LWR FIN (EBONY) (OTR) (W/LUMBAR SWITCH BEZEL) EE (19I) 2007-2008 01
037 88994765 COVER, P/SEAT RECL LWR FIN (GRAY) (OTR) (W/LUMBAR SWITCH BEZEL) EE (13I) 2007-2008 01
037 88994768 COVER, P/SEAT RECL LWR FIN (EBONY) (OTR) (W/LUMBAR SWITCH BEZEL) EB (AH8, AL2, 19I) 2007-2009 01
037 88994769 COVER, P/SEAT RECL LWR FIN (GRAY) (OTR) (W/LUMBAR SWITCH BEZEL) EB (AH8, AL2, 13I) 2007-2009 01
038 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT SHLDR BELT) 2007-2009 01
039 88897618 BEZEL, P/SEAT SHLDR BELT OPG EE (AQ9, AL2) (EXPORT) 2007-2008 01
039 88897619 BEZEL, P/SEAT SHLDR BELT OPG EB 2007-2009 01
039 88992618 BEZEL, P/SEAT SHLDR BELT OPG (EBONY) EB (AQ9, 19I) 2007-2009 01
040 RETAINER, P/SEAT INR ADJR RR FIN CVR (ЧАСТЬ OF 41) 2007-2009
041 19122812 COVER, P/SEAT ADJR FIN (CASHMERE) (FRT) EE (39I) (EXPORT) 2007-2008 01
041 19122813 COVER, P/SEAT ADJR FIN (CASHMERE) (FRT) EB (39I) 2007-2009 01
041 19122816 COVER, P/SEAT ADJR FIN (CASHMERE) (RR) EB (39I) 2007-2009 01
041 88898395 COVER, P/SEAT ADJR FIN (GRAY) (RR) EB (13I) 2007-2009 01
041 88898399 COVER, P/SEAT ADJR FIN (GRAY) (FRT) EE (13I) (EXPORT) 2007-2008 01
041 88898402 COVER, P/SEAT ADJR FIN (GRAY) (FRT) EB (13I) 2007-2009 01
041 88993348 COVER, P/SEAT ADJR FIN (EBONY) (FRT) EE (19I) (EXPORT) 2007-2008 01
041 88993349 COVER, P/SEAT ADJR FIN (EBONY) (FRT) EB (19I) 2007-2009 01
041 88993350 COVER, P/SEAT ADJR FIN (EBONY) (RR) EB (19I) 2007-2009 01
042 15817518 SENSOR, INFL RST FRT PASS POSITION E 2007-2009 01
043 88849035 РАМА, P/SEAT BK CUSH (W/SUSPENSION SUPPORT) EB (EXC AL2) 2007-2009 01
043 88994108 РАМА, P/SEAT BK CUSH (W/LUMBAR КРЕПЛЕНИЕ) EE (AL2) (EXPORT) 2007-2008 01
043 88994109 РАМА, P/SEAT BK CUSH (W/LUMBAR КРЕПЛЕНИЕ) EB (AL2) 2007-2009 01
044 88897643 БОЛТ, P/SEAT RECL (RECL TO FRM) E 2007-2009 02
045 25604879 ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) E 2007-2009 01
046 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT BK CUSH) 2007-2009 07
047 15939003 МОДУЛЬ, P/SEAT SI INFL RST (CASHMERE) EE (39I) (EXPORT) 2007-2008 01
047 15939004 МОДУЛЬ, P/SEAT SI INFL RST (EBONY) EE (19I) (EXPORT) 2007-2008 01
047 15939005 МОДУЛЬ, P/SEAT SI INFL RST (GRAY) EE (13I) (EXPORT) 2007-2008 01
047 15939007 МОДУЛЬ, P/SEAT SI INFL RST (CASHMERE) EB (39I) 2007-2009 01
047 15939008 МОДУЛЬ, P/SEAT SI INFL RST (EBONY) EB (19I) 2008-2008 01
047 15939008 МОДУЛЬ, P/SEAT SI INFL RST (EBONY) EB (19I) 2008-2009 01
047 15939009 МОДУЛЬ, P/SEAT SI INFL RST (GRAY) EB (13I) 2008-2009 01
048 88897616 PANEL, P/SEAT BK CUSH SI BOLS EE (EXPORT) 2007-2008 01
048 88897617 PANEL, P/SEAT BK CUSH SI BOLS EB 2007-2009 01
049 88897618 BEZEL, P/SEAT SHLDR BELT OPG EE (AQ9, AL2) (EXPORT) 2007-2008 01
049 88897619 BEZEL, P/SEAT SHLDR BELT OPG EB 2007-2009 01
049 88992618 BEZEL, P/SEAT SHLDR BELT OPG (EBONY) EB (AQ9, 19I) 2007-2009 01
050 25604879 ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) E 2007-2009 01
051 BELT, P/SEAT (RETR SI) (СМ. ГРУППУ 14.000 РЕМНИ БЕЗОПАСНОСТИ-ПЕРЕДНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2009
052 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (P/SEAT SI INFL RST MDL) 2007-2009 02
053 88949040 BRACKET, INFL RST P/SEAT SI MDL (11.561) E 2007-2009 01
054 88897644 БОЛТ, P/SEAT ADJR (ADJR TO FRM) E 2007-2009 02
055 88897640 ROLLER, P/SEAT SHLDR BELT EE (EXPORT) 2007-2008 01
055 88897641 ROLLER, P/SEAT SHLDR BELT EB 2007-2009 01
056 88897614 COVER, P/SEAT SHLDR BELT OPG BZL (11.573) EE (EXPORT) 2007-2008 01
056 88897615 COVER, P/SEAT SHLDR BELT OPG BZL (11.573) EB 2007-2009 01
057 88992264 BRACKET, P/SEAT CUSH FRM FRT EB (AX4) (EXPORT) 2007-2009 01
