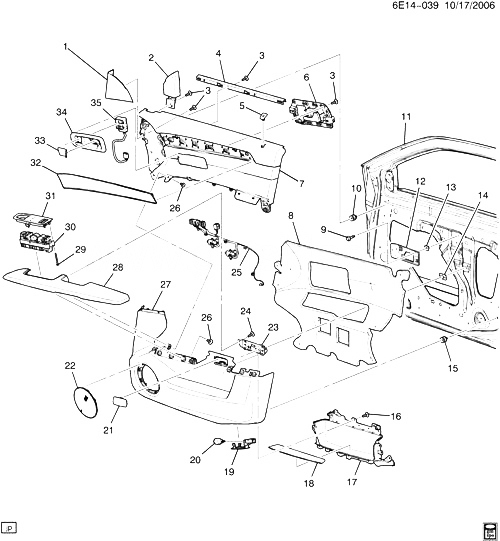

(6E14-039) - 2007-2008 EE ОБЛИЦОВКА ПЕРЕДНЕЙ ВОДИТЕЛЬСКОЙ ДВЕРИ CADILLAC - SRX 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25807655 TRIM, FRT S/D CTR (COCOA) (*KIT1) E (39I) 2007-2008 01
001 25807656 TRIM, FRT S/D CTR (EBONY) (*KIT1) E (13I, 19I) 2007-2008 01
002 25807700 TRIM, FRT S/D UPR (EBONY) (*KIT1) E (13I, 19I) (EXC B19, KA1) 2007-2008 01
002 25807701 TRIM, FRT S/D UPR (COCOA) (*KIT1) E (39I) 2007-2008 01
003 11516982 SCREW, TAP ROUND LRG CROWN WA HEAD, M4.2X1.4X13, GM6010M STL, NICKEL ORGANIC GM6138M (ЧАСТЬ OF 7) (*KIT1) 2007-2008 13
004 REINFORCEMENT, FRT S/D TR UPR (ЧАСТЬ OF 7) (*KIT1) 2007-2008
005 25792693 BEZEL, DR LK SW (ЧАСТЬ OF 7) (EBONY) (FRT) (*KIT1) EE (13I, 19I) 2007-2008 01
005 25792694 BEZEL, DR LK SW (COCOA) (FRT) (*KIT1) EE (A45, B19, KA1, 39I) 2008-2008 01
006 15921370 HANDLE, FRT S/D I/S (ЧАСТЬ OF 7) (*KIT1) E 2007-2008 01
007 25807700 TRIM, FRT S/D UPR (INCLS 3-6, 10, 15) (EBONY) (*KIT1) E (13I, 19I) (EXC B19, KA1) 2007-2008 01
007 25807701 TRIM, FRT S/D UPR (INCLS 3-6, 10, 15) (COCOA) (*KIT1) E (39I) 2007-2008 01
008 25792534 DEADENER, FRT S/D (W/HOLE) (SHAPED LIKE THE PANEL OF THE DOOR) (*KIT1) EE (A45, B19, KA1) (EXPORT) 2008-2008 01
009 22527475 SCREW, SEMS HEX W/FL WA M6.3X1.81X20 ABPT 6010M SOFT WA PZOR (FRT S/D I/S HDL) 2007-2008 01
010 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (ЧАСТЬ OF 7) (*KIT1) 2007-2008 03
011 DOOR, FRT SI (СМ. ГРУППУ 10.000 АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2007-2008
012 15797662 BRACKET, FRT S/D I/S HDL E 2007-2008 01
013 03907444 ГАЙКА, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (FRT S/D I/S HDL) 2007-2008 01
014 20310739 ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) E 2007-2008 04
015 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (ЧАСТЬ OF 7) (*KIT1) 2007-2008 05
016 11516982 SCREW, TAP ROUND LRG CROWN WA HEAD, M4.2X1.4X13, GM6010M STL, NICKEL ORGANIC GM6138M (ЧАСТЬ OF 27) (*KIT1) 2007-2008 17
017 15797801 POCKET, FRT S/D MAP (ЧАСТЬ OF 27) (GRAY) (W/POCKET) (*KIT1) E (13I) 2007-2008 01
017 15797802 POCKET, FRT S/D MAP (ЧАСТЬ OF 27) (EBONY) (W/POCKET) (*KIT1) E (19I) 2007-2008 01
017 15797803 POCKET, FRT S/D MAP (ЧАСТЬ OF 27) (CASHMERE) (W/POCKET) (*KIT1) E (39I) 2007-2008 01
018 LINER, FRT S/D MAP PKT (ЧАСТЬ OF 27) (*KIT1) 2007-2008
019 03525213 ЛАМПА, CTSY (ЧАСТЬ OF 27) (INCLS 20) (WITHOUT LENS) (IN I/P) (*KIT1) E 2007-2008 02
020 19115808 BULB, FRT S/D C/LP (ЧАСТЬ OF 19, 27) (*KIT1) (8.991) (ACDelco #19115808) E26 2007-2008 02
021 25807592 COVER, FRT S/D I/S HDL BZL FIN (GRAY) (*KIT1) E (13I) 2007-2008 02
021 25807593 COVER, FRT S/D I/S HDL BZL FIN (EBONY) (*KIT1) E (19I) 2007-2008 02
021 25807594 COVER, FRT S/D I/S HDL BZL FIN (CASHMERE) (*KIT1) E (39I) 2007-2008 02
022 15797868 GRILLE, RDO FRT S/D SPKR (ЧАСТЬ OF 27) (GRAY) (*KIT1) E26 (13I) 2007-2008 02
022 15797869 GRILLE, RDO FRT S/D SPKR (ЧАСТЬ OF 27) (EBONY) (*KIT1) E26 (19I) 2007-2008 02
022 15797870 GRILLE, RDO FRT S/D SPKR (ЧАСТЬ OF 27) (CASHMERE) (*KIT1) E26 (39I) 2007-2008 02
023 15797691 BRACKET, FRT S/D A/RST (*KIT1) E 2007-2008 01
024 11516982 SCREW, TAP ROUND LRG CROWN WA HEAD, M4.2X1.4X13, GM6010M STL, NICKEL ORGANIC GM6138M (ЧАСТЬ OF 28) (*KIT1) 2007-2008 02
025 25796573 HARNESS, S/D WRG (*KIT1) EE (A45, B19, KA1) 2008-2008 01
026 11516982 SCREW, TAP ROUND LRG CROWN WA HEAD, M4.2X1.4X13, GM6010M STL, NICKEL ORGANIC GM6138M (FRT S/D TR) (*KIT1) 2007-2008 34
027 25807841 TRIM, FRT S/D LWR (INCLS 16-20, 22) (EBONY) (*KIT1) E (19I) 2007-2008 01
028 15797835 ARMREST, FRT S/D (INCLS 24) (GRAY) (*KIT1) E (13I) 2007-2008 01
029 11562454 БОЛТ, FRT S/D INR MTG PNL (ЧАСТЬ OF 31) (M3.5X1.29X35) (*KIT1) (16.682) E 2007-2008 06
030 15919076 SWITCH, DR LK SI WDO (ЧАСТЬ OF 31) (EBONY) (*KIT1) EE (13I, 19I, 39I) (EXPORT) 2007-2008 01
030 15919076 SWITCH, DR LK SI WDO (ЧАСТЬ OF 31) (EBONY) (*KIT1) (10.485) EE (13I, 19I, 39I) (EXPORT) 2007-2008 01
031 25792573 PLATE, FRT S/D A/RST SW MT (INCLS 29, 30) (EBONY) (*KIT1) EE (19I) (EXPORT) 2007-2008 01
031 25854300 PLATE, FRT S/D A/RST SW MT (INCLS 29, 30) (CASHMERE) (*KIT1) EE (39I) (EXPORT) 2007-2008 01
031 25854302 PLATE, FRT S/D A/RST SW MT (INCLS 29, 30) (GRAY) (*KIT1) EE (13I) (EXPORT) 2007-2008 01
032 APPLIQUE, FRT S/D UPR (*KIT1) 2007-2008
033 25807600 CUP, FRT S/D I/S HDL FIN (GRAY) (*KIT1) E (13I) 2007-2008 01
033 25807601 CUP, FRT S/D I/S HDL FIN (EBONY) (*KIT1) E (19I) 2007-2008 01
033 25807602 CUP, FRT S/D I/S HDL FIN (CASHMERE) (*KIT1) E (39I) 2007-2008 01
034 25793545 BEZEL, FRT S/D I/S HDL (INCLS 35) (CASHMERE) (*KIT1) EE (A45, B19, KA1, 39I) (EXPORT) 2008-2008 01
034 25821131 BEZEL, FRT S/D I/S HDL (INCLS 35) (EBONY) (*KIT1) EE26 (19I) (EXPORT) 2007-2008 01
034 25821132 BEZEL, FRT S/D I/S HDL (INCLS 35) (GRAY) (*KIT1) EE (A45, B19, KA1, 13I) (EXPORT) 2008-2008 01
035 25881821 SWITCH, D/SEAT HTR (ЧАСТЬ OF 34) (*KIT1) E 2007-2008 01
K01 15848610 TRIM, FRT S/D (INCLS 1-8, 10, 15-35) (GRAY) EE (A45, B19, KA1, 13I) (EXPORT) 2008-2008 01
K01 15848611 TRIM, FRT S/D (INCLS 1-8, 10, 15-35) (EBONY) EE (A45, B19, KA1, 19I) (EXPORT) 2008-2008 01
K01 15848612 TRIM, FRT S/D (INCLS 1-8, 10, 15-35) (CASHMERE) EE (A45, B19, KA1, 39I) (EXPORT) 2008-2008 01
