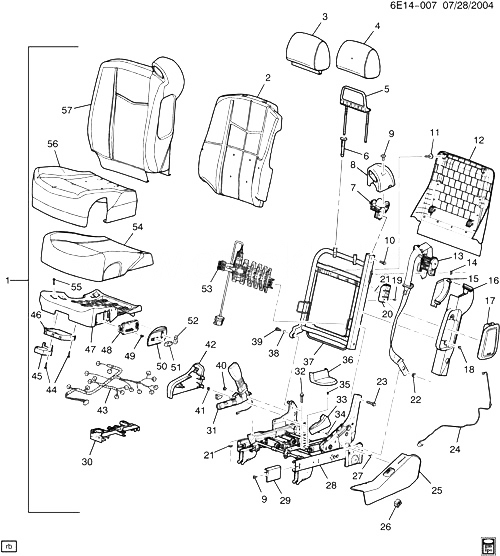

(6E14-007) - 2004-2009 E СИДЕНЬЕ В СБОРЕ/DRIVER (POWER LUMBAR AL2) CADILLAC - SRX 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15829041 SEAT, DRVR (INCLS 2-57) (EBONY) EB (AL2, AQ9, A45, KA1, 192) (EXC AX4, JF4) 2007-2009 01
001 25862472 SEAT, DRVR (INCLS 2-57) (GRAY) EE (AL2, AQ9, A45, JF4, KA1, 132) (EXPORT) 2008-2008 01
001 25862473 SEAT, DRVR (INCLS 2-57) (EBONY) EE (AL2, AQ9, A45, JF4, KA1, 192) (EXPORT) 2008-2008 01
001 25862474 SEAT, DRVR (INCLS 2-57) (CASHMERE) EE (AL2, AQ9, A45, JF4, KA1, 392) (EXPORT) 2008-2008 01
001 25862476 SEAT, DRVR (INCLS 2-57) (GRAY) EB (AL2, AQ9, AX4, A45, KA1, 132) (EXC JF4) (EXPORT) 2007-2009 01
001 25862477 SEAT, DRVR (INCLS 2-57) (EBONY) EB (AL2, AQ9, AX4, A45, KA1, 192) (EXC JF4) (EXPORT) 2007-2009 01
001 25862478 SEAT, DRVR (INCLS 2-57) (CASHMERE) EB (AL2, AQ9, AX4, A45, KA1, 392) (EXC JF4) (EXPORT) 2007-2009 01
001 25862480 SEAT, DRVR (INCLS 2-57) (CASHMERE) EB (AL2, AQ9, A45, KA1, 392) (EXC AX4, JF4) 2007-2009 01
001 25862481 SEAT, DRVR (INCLS 2-57) (GRAY) EB (AL2, AQ9, A45, KA1, 132) (EXC AX4, JF4) 2007-2009 01
001 25862484 SEAT, DRVR (INCLS 2-57) (CASHMERE) EB (AL2, AQ9, AX4, A45, JF4, KA1, 392) (EXPORT) 2007-2009 01
001 25862485 SEAT, DRVR (INCLS 2-57) (GRAY) EB (AL2, AQ9, AX4, A45, JF4, KA1, 132) (EXPORT) 2007-2009 01
001 25862486 SEAT, DRVR (INCLS 2-57) (EBONY) EB (AL2, AQ9, AX4, A45, JF4, KA1, 192) (EXPORT) 2007-2009 01
001 25862488 SEAT, DRVR (INCLS 2-57) (CASHMERE) EB (AL2, AQ9, A45, JF4, KA1, 392) (EXC AX4) 2007-2009 01
001 25862489 SEAT, DRVR (INCLS 2-57) (GRAY) EB (AL2, AQ9, A45, JF4, KA1, 132) (EXC AX4) 2007-2009 01
001 25862490 SEAT, DRVR (INCLS 2-57) (EBONY) EB (AL2, AQ9, A45, JF4, KA1, 192) (EXC AX4) 2007-2009 01
002 88994770 PAD, D/SEAT BK CUSH EB (AL2) 2004-2009 01
002 88994771 PAD, D/SEAT BK CUSH EE (EXPORT) 2007-2008 01
003 19122828 COVER, D/SEAT H/RST (CASHMERE) E (392) 2007-2009 01
003 88897971 COVER, D/SEAT H/RST (GRAY) E (132) 2004-2009 01
003 88992582 COVER, D/SEAT H/RST (EBONY) E (192) 2004-2009 01
004 88898400 PAD, D/SEAT H/RST E 2004-2009 01
005 88897670 SUPPORT, D/SEAT H/RST E 2004-2009 01
006 19122625 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) E (19I) 2004-2009 01
006 19122627 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) E (19I) 2004-2009 01
006 19122701 GUIDE, D/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/O BUTTON) E (39I) 2007-2009 01
006 19122702 GUIDE, D/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/BUTTON) E (39I) 2007-2009 01
006 88994730 GUIDE, D/SEAT H/RST (GRAY) (W/BUTTON) (11.625) E (13I) 2004-2009 01
006 88994731 GUIDE, D/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) E (13I) 2004-2009 01
007 88897640 ROLLER, D/SEAT SHLDR BELT EB 2004-2009 01
007 88897641 ROLLER, D/SEAT SHLDR BELT EE (EXPORT) 2007-2008 01
008 88897614 COVER, D/SEAT SHLDR BELT OPG BZL (11.573) EB 2004-2009 01
008 88897615 COVER, D/SEAT SHLDR BELT OPG BZL (11.573) EE (EXPORT) 2007-2008 01
009 88897272 БОЛТ, D/SEAT (TOWER COVER) E 2004-2009 06
010 88897644 БОЛТ, D/SEAT ADJR (ADJR TO FRM) E 2004-2009 02
011 10421018 RETAINER, D/SEAT BK CUSH CVR (ЧАСТЬ OF 12) (NATURAL) (4MM HOLE, 33MM) (15.100) E 2004-2009 03
012 19122657 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (CASHMERE) (W/MESH MAP PKT) EB (39I) 2007-2009 01
012 19122658 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (CASHMERE) (W/MESH MAP PKT) EE (39I) (EXPORT) 2007-2008 01
012 88895403 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (GRAY) (W/MESH MAP PKT) EB (13I) 2004-2009 01
012 88895407 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (GRAY) (W/MESH MAP PKT) EE (13I) (EXPORT) 2007-2008 01
012 88992613 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (EBONY) (W/MESH MAP PKT) EB (19I) 2004-2009 01
012 88992614 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (EBONY) (W/MESH MAP PKT) EE (19I) (EXPORT) 2007-2008 01
013 BELT, D/SEAT (RETR SI) (СМ. ГРУППУ 14.000 РЕМНИ БЕЗОПАСНОСТИ-ПЕРЕДНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2009
014 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (UPPER) 2004-2009 01
015 88897618 BEZEL, D/SEAT SHLDR BELT OPG EB 2004-2009 01
015 88897619 BEZEL, D/SEAT SHLDR BELT OPG EE (AQ9, IL2) 2007-2008 01
016 88897616 PANEL, D/SEAT BK CUSH SI BOLS EB 2004-2009 01
016 88897617 PANEL, D/SEAT BK CUSH SI BOLS EE (EXPORT) 2007-2008 01
017 15939003 МОДУЛЬ, D/SEAT SI INFL RST (CASHMERE) EB (39I) 2007-2009 01
017 15939004 МОДУЛЬ, D/SEAT SI INFL RST (EBONY) EB (19I) 2007-2009 01
017 15939005 МОДУЛЬ, D/SEAT SI INFL RST (GRAY) EB (13I) 2007-2009 01
017 15939007 МОДУЛЬ, D/SEAT SI INFL RST (CASHMERE) EE (39I) (EXPORT) 2007-2008 01
017 15939008 МОДУЛЬ, D/SEAT SI INFL RST (EBONY) EE (19I) (EXPORT) 2008-2008 01
017 15939009 МОДУЛЬ, D/SEAT SI INFL RST (GRAY) EE (13I) (EXPORT) 2008-2008 01
018 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (D/SEAT BK CUSH OTR SUPT) 2004-2009 02
019 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (D/SEAT SI INFL RST MDL) 2004-2009 02
020 88949040 BRACKET, INFL RST D/SEAT SI MDL (11.561) E 2004-2009 01
021 11517068 NUT-METRIC HEX FLABGE, M6X1, 10MM SOCKET (INFL RST D/SEAT SI MDL) 2004-2009 04
022 88952627 ГАЙКА, D/SEAT BELT (BKL SI) (TUBE NUT) (11.556) E 2004-2009 01
023 88897643 БОЛТ, D/SEAT RECL (RECL TO FRM) E 2004-2009 02
024 15829204 HARNESS, INFL RST WRG E26 2007-2009 01
024 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) E 2007-2009 01
025 19122804 COVER, D/SEAT RECL LWR FIN (INCLS 27) (CASHMERE) (OTR) (W/LUMBAR SWITCH BEZEL) EB (39I) 2007-2009 01
025 88994764 COVER, D/SEAT RECL LWR FIN (INCLS 27) (EBONY) (OTR) (W/LUMBAR SWITCH BEZEL) EB (19I) 2004-2009 01
025 88994765 COVER, D/SEAT RECL LWR FIN (INCLS 27) (GRAY) (OTR) (W/LUMBAR SWITCH BEZEL) EB (13I) 2004-2009 01
026 10315826 SWITCH, D/SEAT LUMBAR CONT (EBONY) E (19I) 2004-2009 01
026 15210786 SWITCH, D/SEAT LUMBAR CONT (CASHMERE) E (39I) 2007-2009 01
026 25772913 SWITCH, D/SEAT LUMBAR CONT (GRAY) E (13I) 2004-2009 01
027 RETAINER, D/SEAT OTR RECL FIN CVR (ЧАСТЬ OF 25) 2004-2009
028 19123456 ADJUSTER, D/SEAT (PWR W/MEMORY) EB (A45) 2007-2009 01
028 19123461 ADJUSTER, D/SEAT (PWR W/MEMORY) EE (EXPORT) 2007-2008 01
029 19122812 COVER, D/SEAT ADJR FIN (CASHMERE) (FRT) EB (39I) 2007-2009 01
029 19122813 COVER, D/SEAT ADJR FIN (CASHMERE) (FRT) EE (39I) 2007-2009 01
029 88898399 COVER, D/SEAT ADJR FIN (GRAY) (FRT) EB (13I) 2004-2009 01
029 88898402 COVER, D/SEAT ADJR FIN (GRAY) (FRT) EE (13I) 2007-2009 01
029 88993348 COVER, D/SEAT ADJR FIN (EBONY) (FRT) EB (19I) 2004-2009 01
029 88993349 COVER, D/SEAT ADJR FIN (EBONY) (FRT) EE (19I) 2007-2009 01
030 BRACKET, D/SEAT WRG HARN (ЧАСТЬ OF 43) 2004-2009
031 BELT, D/SEAT (BKL SI) (СМ. ГРУППУ 14.000 РЕМНИ БЕЗОПАСНОСТИ-ПЕРЕДНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2009
032 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (D/SEAT ADJR (W/BELT)) (8.907) 2004-2009 02
033 BEZEL, D/SEAT SHLDR BELT OPG EB 2004-2009 01
033 88992618 BEZEL, D/SEAT SHLDR BELT OPG (EBONY) EE (AQ9, 19I) 2007-2008 01
034 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (D/SEAT SPCR) 2004-2009 01
035 RETAINER, D/SEAT ADJR FIN CVR (ЧАСТЬ OF 36) 2004-2009
036 19122816 COVER, D/SEAT ADJR FIN (INCLS 35) (CASHMERE) (RR) E (39I) 2007-2009 01
036 88898395 COVER, D/SEAT ADJR FIN (INCLS 35) (GRAY) (RR) E (13I) 2004-2009 01
036 88993350 COVER, D/SEAT ADJR FIN (INCLS 35) (EBONY) (RR) E (19I) 2004-2009 01
037 88994108 РАМА, D/SEAT BK CUSH (W/LUMBAR КРЕПЛЕНИЕ) EB (AL2) 2004-2009 01
037 88994109 РАМА, D/SEAT BK CUSH (W/LUMBAR КРЕПЛЕНИЕ) EE (AL2) (EXPORT) 2007-2008 01
038 BUSHING, D/SEAT BK CUSH PIV (ЧАСТЬ OF 39) 2004-2009
039 88952646 БОЛТ, D/SEAT BK CUSH FRM (INCLS 38) (11.628) E 2004-2009 01
040 88952627 ГАЙКА, D/SEAT BELT (BKL SI) (TUBE NUT) (11.556) E 2004-2009 01
041 RETAINER, D/SEAT ADJR FIN CVR (ЧАСТЬ OF 42) 2004-2009
042 19122660 COVER, D/SEAT RECL LWR FIN (INCLS 41) (CASHMERE) (INR) EB (39I) 2007-2009 01
042 88895367 COVER, D/SEAT RECL LWR FIN (INCLS 41) (GRAY) (INR) E (13I) 2004-2009 01
042 88992615 COVER, D/SEAT RECL LWR FIN (INCLS 41) (EBONY) (INR) E (19I) 2004-2009 01
043 19123443 HARNESS, D/SEAT WRG (INCLS 30) EB26 (AL2, AQ9, A45, IL2, KA1) (EXC JF4) 2007-2009 01
043 19123444 HARNESS, D/SEAT WRG (INCLS 30) EB26 (AL2, AQ9, A45, IL2, JF4, KA1) 2007-2009 01
043 19123446 HARNESS, D/SEAT WRG (INCLS 30) EB26 (AH8, AL2, AQ8, IL2) (EXC MTF) 2007-2008 01
043 19123449 HARNESS, D/SEAT WRG (INCLS 30) EB26 (AL2, AQ8, IL2) 2007-2008 01
043 19123449 HARNESS, D/SEAT WRG (INCLS 30) EE26 (AL2, AQ9, A45, IL2, JF4, KA1) 2008-2008 01
043 19123451 HARNESS, D/SEAT WRG (INCLS 30) EB26 (AH8, AL2, AQ8, IL2) 2007-2008 01
044 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (D/SEAT) (8.977) 2004-2009 02
046 25855630 МОДУЛЬ, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (LABELED 25855630) (11.558) E 2008-2009 01
046 25855630 МОДУЛЬ, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (LABELED 25855630) E 2007-2008 01
047 19123428 РАМА, D/SEAT CUSH (INCLS 55) (PWR) EB 2007-2009 01
047 19123429 РАМА, D/SEAT CUSH (INCLS 55) (PWR) EE (EXPORT) 2007-2008 01
048 12450263 SWITCH, D/SEAT RECL (INCLS ADJR SWITCH) (8-WAY) EB 2004-2009 01
048 12450264 SWITCH, D/SEAT RECL (8-WAY) EE (EXPORT) 2007-2008 01
049 RETAINER, D/SEAT ADJR FIN CVR (ЧАСТЬ OF 50) 2004-2009
050 19122670 BEZEL, D/SEAT ADJR SW (INCLS 49) (CASHMERE) EE (39I) (EXPORT) 2007-2008 01
050 19122810 BEZEL, D/SEAT ADJR SW (INCLS 49) (CASHMERE) EB (39I) 2007-2009 01
050 88895395 BEZEL, D/SEAT ADJR SW (INCLS 49) (GRAY) EB (13I) 2004-2009 01
050 88895399 BEZEL, D/SEAT ADJR SW (INCLS 49) (GRAY) EE (13I) (EXPORT) 2007-2008 01
050 88992623 BEZEL, D/SEAT ADJR SW (INCLS 49) (EBONY) EB (19I) 2004-2009 01
050 88992624 BEZEL, D/SEAT ADJR SW (INCLS 49) (EBONY) EE (19I) (EXPORT) 2007-2008 01
051 10367220 KNOB, D/SEAT ADJR SW (CASHMERE) E (39I) 2007-2009 01
051 25721217 KNOB, D/SEAT ADJR SW (GRAY) E (13I) 2004-2009 01
051 25749092 KNOB, D/SEAT ADJR SW (EBONY) E (19I) 2004-2009 01
052 15210788 KNOB, D/SEAT RECL LVR (CASHMERE) EB (39I) 2007-2009 01
052 15210789 KNOB, D/SEAT RECL LVR (CASHMERE) EE (39I) (EXPORT) 2007-2008 01
052 25721207 KNOB, D/SEAT RECL LVR (GRAY) E (13I) 2004-2009 01
052 25749093 KNOB, D/SEAT RECL LVR (EBONY) EB (19I) 2004-2009 01
052 25749094 KNOB, D/SEAT RECL LVR (EBONY) EE (19I) (EXPORT) 2007-2008 01
053 19123452 LUMBAR SUB SYS, SEAT (2-WAY) (W/LUMBAR MOTOR) EB 2007-2009 01
053 19123829 LUMBAR SUB SYS, SEAT EE 2007-2008 01
054 PAD, D/SEAT CUSH EE 2007-2008
054 88898332 PAD, D/SEAT CUSH EB 2004-2009 01
055 БОЛТ, D/SEAT CUSH FRM (ЧАСТЬ OF 47) 2004-2009
056 19122821 COVER, D/SEAT CUSH (CASHMERE) EB (AQ9, 392) (EXC KA1) 2007-2009 01
056 19123312 COVER, D/SEAT CUSH (GRAY) EE (AL2, AQ9, 132) (EXPORT) 2007-2008 01
056 19123313 COVER, D/SEAT CUSH (GRAY) EB (AQ9, KA1, 132) 2007-2009 01
056 19123316 COVER, D/SEAT CUSH (EBONY) EE (AL2, AQ9, 192) (EXPORT) 2007-2008 01
056 19123317 COVER, D/SEAT CUSH (EBONY) EB (AQ9, KA1, 192) 2007-2009 01
056 19123318 COVER, D/SEAT CUSH (CASHMERE) EE (AL2, AQ9, 392) (EXPORT) 2007-2008 01
056 19123319 COVER, D/SEAT CUSH (CASHMERE) EB (AQ9, KA1, 392) 2007-2009 01
056 88994483 COVER, D/SEAT CUSH (GRAY) EB (AQ9, 132) (EXC KA1) 2004-2009 01
056 88994484 COVER, D/SEAT CUSH (EBONY) EB (AQ9, 192) (EXC KA1) 2004-2009 01
057 19122817 COVER, D/SEAT BK CUSH (CASHMERE) EB (AQ9, 392) (EXC AX4, KA1) 2007-2009 01
057 19123302 COVER, D/SEAT BK CUSH (GRAY) EE (AL2, AQ9, 132) (EXPORT) 2007-2008 01
057 19123303 COVER, D/SEAT BK CUSH (GRAY) EB (AL2, AQ9, KA1, 132) 2007-2009 01
057 19123306 COVER, D/SEAT BK CUSH (EBONY) (WITH 4 TERMINALS) EE (AL2, AQ9, 192) (EXPORT) 2007-2008 01
057 19123307 COVER, D/SEAT BK CUSH (EBONY) EB (AL2, AQ9, KA1, 192) 2007-2009 01
057 19123308 COVER, D/SEAT BK CUSH (CASHMERE) EE (AL2, AQ9, 392) (EXPORT) 2007-2008 01
057 19123309 COVER, D/SEAT BK CUSH (CASHMERE) EB (AL2, AQ9, KA1, 392) 2007-2009 01
057 88994459 COVER, D/SEAT BK CUSH (GRAY) EB (AQ9, 132) (EXC KA1) 2004-2009 01
057 88994460 COVER, D/SEAT BK CUSH (EBONY) EB (AQ9, 192) (EXC KA1) 2004-2009 01
