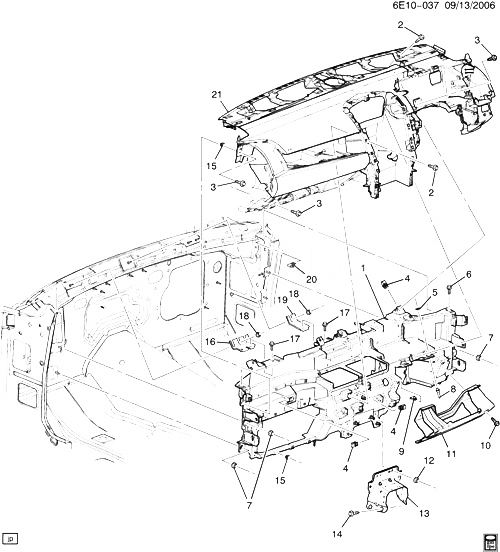

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15839156 |
КРОНШТЕЙН, INST (INCLS 4, 5, 8, 9, 15) |
EE (EXPORT) |
2007-2008 |
01 |
| 002 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (INST CARR SUPT)
|
2007-2008 |
07 |
|
| 003 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (INST CARR SUPT)
|
2007-2008 |
11 |
|
| 004 |
15650737 |
ГАЙКА, F/FLR CNSL BRKT (ЧАСТЬ OF 1) (1.272) |
E |
2007-2008 |
08 |
| 005 |
25606907 |
ГАЙКА, STRG COL (ЧАСТЬ OF 1) (M8X1.25, 7.1THK) (SQUARE) (SUPT BRKT NUT) (6.760) |
E |
2007-2008 |
08 |
| 006 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (INST CARR) (ACDelco #11570082)
|
2007-2008 |
02 |
|
| 007 |
11517792 |
ГАЙКА, HEX W/FL WA, M8X1.25, 10.75 THK, 24 OD, 10, 7111M (I/P CARR) |
|
2007-2008 |
04 |
| 008 |
25642753 |
ГАЙКА, STRG COL (ЧАСТЬ OF 1) (M8X1.25 X 47.91) (O/A DOUBLE END STUD W/E7 TORX STEM ROUND SHOULDER) |
EE |
2008-2008 |
04 |
| 009 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (ЧАСТЬ OF 1)
|
2007-2008 |
03 |
|
| 010 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P DRVR KNEE BOLS)
|
2007-2008 |
02 |
|
| 011 |
15796481 |
BRACKET, I/P DRVR KNEE BOLS BRKT (10.230) |
EE (EXPORT) |
2007-2008 |
01 |
| 012 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (I/P CARR BRKT)
|
2007-2008 |
04 |
|
| 013 |
15845239 |
BRACKET, I/P CARR |
EE (EXPORT) |
2007-2008 |
01 |
| 014 |
11519388 |
БОЛТ, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (INST CARR BRKT)
|
2007-2008 |
04 |
|
| 015 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (ЧАСТЬ OF 1) (10.701)
|
2007-2008 |
21 |
|
| 016 |
25719156 |
BRACKET, INST CARR (TO FOD) |
E |
2007-2008 |
02 |
| 017 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (INST CARR BRKT) (T/W 12345493 REPLCS 25534835)
|
2007-2008 |
05 |
|
| 018 |
11517792 |
ГАЙКА, HEX W/FL WA, M8X1.25, 10.75 THK, 24 OD, 10, 7111M (I/P CARR BRKT) |
|
2007-2008 |
05 |
| 019 |
25687278 |
BRACKET, INST CARR (CTR) (CTR) |
E |
2007-2008 |
01 |
| 020 |
11516149 |
ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (I/P CARR)
|
2007-2008 |
02 |
|
| 021 |
|
PANEL, INST (СМ. ГРУППУ 10.000 ПРИБОРНАЯ ПАНЕЛЬ/TRIM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (4.785) |
|
2007-2008 |
|
