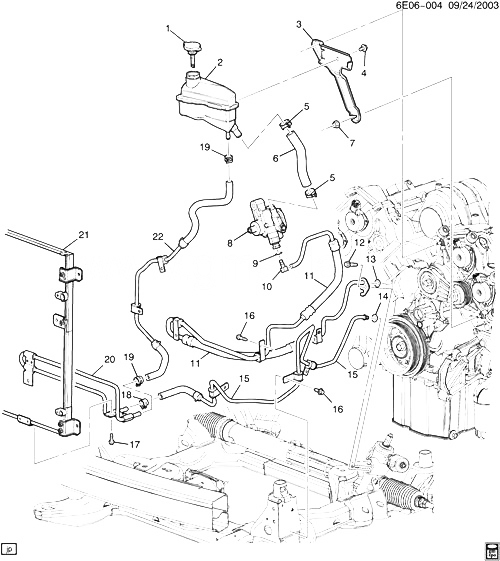

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88964536 |
CAP, P/S FLUID RSVR |
E26 |
2004-2009 |
01 |
| 002 |
19133714 |
RESERVOIR, P/S PUMP FLUID |
E26 |
2004-2009 |
01 |
| 003 |
88967187 |
BRACKET, P/S FLUID RSVR |
E26 (LH2) |
2005-2008 |
01 |
| 004 |
88964537 |
БОЛТ, P/S FLUID RSVR BRKT |
E26 |
2005-2009 |
01 |
| 005 |
|
CЛАМПА, P/S FLUID RSVR OTLT HOSE (ЧАСТЬ OF 6) |
|
2007-2009 |
|
| 006 |
15251169 |
HOSE, P/S FLUID RSVR OTLT (INCLS 5) |
E (LH2) |
2007-2009 |
01 |
| 007 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (P/S FLUID RSVR BRKT) |
|
2004-2009 |
03 |
| 008 |
|
PUMP, P/S (СМ. ГРУППУ 06.000 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ ASM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2004-2009 |
|
| 009 |
88957180 |
SEAL, P/S GR INL HOSE FTG (O RING) (ЧАСТЬ OF 11) |
EB26 |
2007-2008 |
01 |
| 010 |
88957182 |
FITTING, P/S GR INL HOSE (ЧАСТЬ OF 11) |
E (LH2) |
2004-2008 |
01 |
| 011 |
19133715 |
HOSE, P/S GR INL (INCLS 9, 10, 13) |
EB (LH2) |
2007-2009 |
01 |
| 012 |
11517937 |
БОЛТ, HWH, M8X1.25X22.1, 13.85 THD, 15 OD, 9.8, 7114M, MACH, 6175M ADH, MAT-PT (P/S GR INL PIPE BRKT)
|
2004-2009 |
01 |
|
| 013 |
|
SEAL, P/S GR INL HOSE (O RING) (ЧАСТЬ OF 11) (*KIT1) |
|
2007-2009 |
|
| 014 |
|
SEAL, P/S GR OTLT HOSE (O-RING) (ЧАСТЬ OF 15) (*KIT1) |
|
2007-2009 |
|
| 015 |
10388415 |
HOSE, P/S GR OTLT (INCLS 14, 18)
| EB26 (EXC TY6) |
2008-2008 |
01 |
|
| 015 |
10388415 |
HOSE, P/S GR OTLT (INCLS 14, 18)
| EB26 (LH2) (EXC TY6, V92) |
2008-2008 |
01 |
|
| 015 |
15788749 |
HOSE, P/S GR OTLT (INCLS 14, 18) |
EB26 (TY6) (EXPORT) |
2008-2009 |
01 |
| 016 |
10199206 |
БОЛТ, P/S GR INL OTLT PIPE RET (M6X1.0X18) (4.785) |
E26 |
2004-2008 |
06 |
| 016 |
10199206 |
БОЛТ, P/S GR INL OTLT PIPE RET (M6X1.0X18) (4.785) |
E26 |
2004-2008 |
06 |
| 017 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (P/S FLUID CLR HOSE CLIP) |
|
2004-2009 |
01 |
| 018 |
|
CLIP, P/S GR OTLT HOSE (ЧАСТЬ OF 15) |
|
2007-2009 |
|
| 019 |
|
CЛАМПА, P/S FLUID CLG HOSE (ЧАСТЬ OF 22) |
|
2007-2009 |
|
| 020 |
15236156 |
COOLER, P/S FLUID (REFER TO BULLETIN 04-02-32-004 FOR INSTALLATION INSTRUCTION)
| E |
2004-2009 |
01 |
|
| 021 |
|
CONDENSER, КОНДИЦИОНЕР (СМ. ГРУППУ 09.000 КОНДИЦИОНЕР СИСТЕМА ОХЛАЖДЕНИЯ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2004-2009 |
|
| 022 |
10376949 |
HOSE, P/S FLUID CLR OTLT (INCLS 19) (FOR USE W/ELECTRIC ОХЛАЖДЕНИЕ) |
E (LH2) (EXC V92) |
2004-2009 |
01 |
| K01 |
88964534 |
SEAL KIT, P/S GR OTLT HOSE CONN (INCLS 13, 14)
| E (LH2, LY7) |
2004-2008 |
01 |
|
