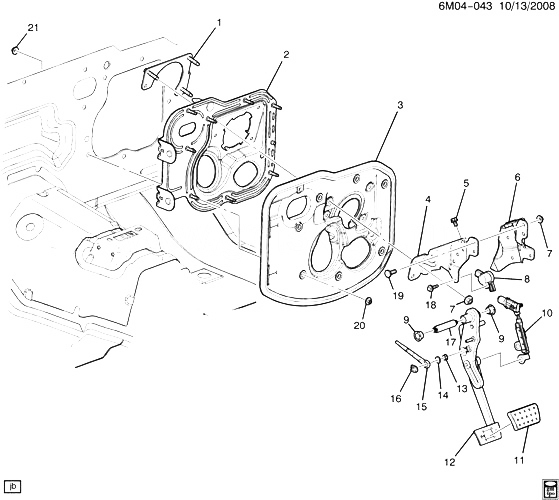

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15866634 |
BRACKET, BRK PED BRKT |
EE |
2007-2008 |
01 |
| 002 |
|
REINFORCEMENT, DA PNL BRK PED BRKT |
|
2007-2008 |
|
| 003 |
|
BARRIER, BRK PED BRKT SND |
|
2007-2008 |
|
| 004 |
|
BRACKET, BRK PED (ЧАСТЬ OF 12) |
|
2007-2008 |
|
| 005 |
|
БОЛТ, BRK PED BRKT BR (ЧАСТЬ OF 12) |
|
2007-2008 |
|
| 006 |
|
BRACKET, BRK PED (ЧАСТЬ OF 12) |
|
2007-2008 |
|
| 007 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (BRK PED)
|
2007-2008 |
05 |
|
| 008 |
89047704 |
SENSOR KIT, BRK PED POSN (ЧАСТЬ OF 12)
| EE26 (EXPORT) |
2007-2008 |
01 |
|
| 009 |
|
BUSHING, BRK PED PIV (ЧАСТЬ OF 12) |
|
2007-2008 |
|
| 010 |
19153363 |
CABLE, BRK PED ADJR ACTR (ЧАСТЬ OF 12) |
EE26 (EXPORT) |
2007-2008 |
01 |
| 011 |
25771615 |
COVER, BRK PED (ЧАСТЬ OF 12) |
EE (EXPORT) |
2007-2008 |
01 |
| 012 |
15791722 |
PEDAL, BRK (INCLS 4-6, 8-11, 13-19) |
EE (EXPORT) |
2007-2008 |
01 |
| 013 |
10434956 |
BUSHING, BRK PED PUSH ROD (ЧАСТЬ OF 12) |
E |
2007-2008 |
01 |
| 014 |
00410230 |
WASHER, ПРУЖИНА 29/64 I.D., 11/16 O.D., 5/64 THK, PL (ЧАСТЬ OF 12) |
|
2007-2008 |
01 |
| 015 |
|
ROD, BRK PED PUSH (ЧАСТЬ OF 12) |
|
2007-2008 |
|
| 016 |
03817880 |
RETAINER, BRK PED PUSH ROD (ЧАСТЬ OF 12) (0.80 IN) (PUSH IN) |
E |
2007-2008 |
01 |
| 017 |
|
PIN, BRK PED PIV (ЧАСТЬ OF 12) |
|
2007-2008 |
|
| 018 |
11609999 |
SCREW, HEX HD FL WA, M4X0.7X20, 13 THD, 12 OD, 9.8, GMW3044, W/NYLON (ЧАСТЬ OF 12) |
|
2007-2008 |
01 |
| 019 |
|
БОЛТ, BAT HOLDN RET (ЧАСТЬ OF 12) |
|
2007-2008 |
|
| 020 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK PED BRKT SND BARR)
|
2007-2008 |
05 |
|
| 021 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DA PNL REINF)
|
2007-2008 |
09 |
|
