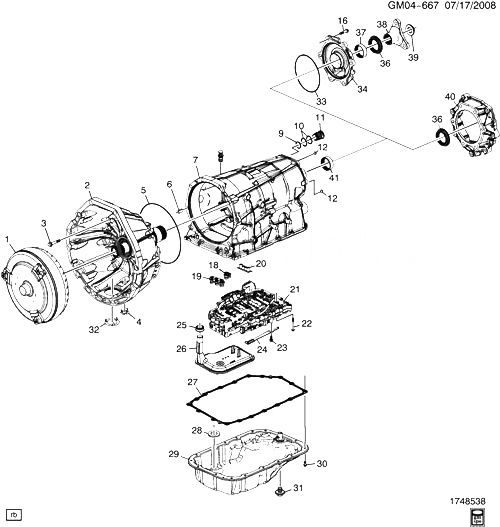

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24240018 |
CONVERTER, TORQ
| E (LH2, MYB, MX0, MX7) |
2007-2008 |
01 |
|
| 002 |
|
ШЛАНГИ, T/CV (W/ ГИДРОНАСОС) (СМ. ГРУППУ 04.000 TORQUE CONVERTOR ШЛАНГИ AND ГИДРОНАСОС ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2008 |
|
| 003 |
11515762 |
БОЛТ-HFLGE, M8X1.25X50, 18 OD, 22 THD, 10.9, PZO (T/CV HSG) |
|
2007-2008 |
08 |
| 004 |
24205899 |
PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) |
E (LH2, JJB) |
2008-2008 |
01 |
| 005 |
24225543 |
SEAL, A/TRNS ГИДРОНАСОС (ACDelco #24225543)
| E (MYB) |
2007-2008 |
01 |
|
| 006 |
|
PIN, T/CV HSG LOC (ЧАСТЬ OF 7) |
|
2007-2008 |
|
| 007 |
24242045 |
CASE, A/TRNS (INCLS 6, 12, 41) (ACDelco #24242045) |
E (MYB, MX7) |
2007-2008 |
01 |
| 007 |
24242046 |
CASE, A/TRNS (INCLS 6, 12, 41) (ACDelco #24242046) |
E (MYB, MX0) |
2007-2008 |
01 |
| 008 |
24226020 |
PLUG, TRANS FLUID FIL TUBE |
E (LH2, MYB) |
2007-2008 |
01 |
| 009 |
|
SEAL, A/TRNS WRG CONN (*KIT1, KIT2) |
|
2007-2008 |
|
| 010 |
|
SEAL, A/TRNS WRG CONN (O RING) (*KIT1, KIT2) |
|
2007-2008 |
|
| 011 |
24239878 |
SLEEVE, A/TRNS ELEC CONN PASG
| E (MYB) |
2007-2008 |
01 |
|
| 012 |
|
PLUG, A/TRNS CASE (ЧАСТЬ OF 7) |
|
2007-2008 |
|
| 016 |
24225788 |
БОЛТ, A/TRNS CASE EXTN (M10X1.5X34) |
E (MYB) |
2007-2008 |
06 |
| 018 |
|
SEAL, A/TRNS ГИДРОНАСОС (*KIT2) |
|
2007-2008 |
|
| 019 |
|
SEAL, A/TRNS ГИДРОНАСОС (*KIT2) |
|
2007-2008 |
|
| 020 |
24225557 |
SEAL, CTR SUPT FLUID PASG (*KIT2) |
E (MYB) |
2007-2008 |
01 |
| 021 |
|
VALVE, CONT (W/BODY VLV) (СМ. ГРУППУ 04.000 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ БЛОК УПРАВЛЕНИЯ КЛАПАНАМИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2008 |
|
| 022 |
24237181 |
БОЛТ, VLV BODY (M5X0.8X73.0) |
E (MYB) |
2008-2008 |
06 |
| 023 |
24231074 |
БОЛТ, MAN SHFT DTNT (M10X1X14.5) |
E (MYB) |
2007-2008 |
01 |
| 024 |
24222646 |
DETENT, MAN SHFT (W/8MM DIA. ROLLER) (ACDelco #24222646) |
E (MYB) |
2007-2008 |
01 |
| 025 |
|
SEAL, A/TRNS FLUID FLTR (ЧАСТЬ OF 26) |
|
2007-2008 |
|
| 026 |
24236933 |
FILTER KIT, A/TRNS FLUID (INCLS 25) (ACDelco #24236933)
| E (MYB) |
2007-2008 |
01 |
|
| 027 |
24225800 |
GASKET, A/TRNS FLUID PAN (ACDelco #24225800)
| E (MYB) |
2007-2008 |
01 |
|
| 028 |
29535617 |
MAGNET, A/TRNS FLUID PAN (4.105) (ACDelco #29535617)
| E (MYB) |
2007-2008 |
01 |
|
| 029 |
24242410 |
PAN, A/TRNS FLUID (INCLS 31) (ACDelco #24242410) |
E (MYB) |
2008-2008 |
01 |
| 030 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (A/TRNS FLUID PAN)
|
2007-2008 |
17 |
|
| 031 |
24234212 |
PLUG, A/TRNS FLUID PAN DRN (ЧАСТЬ OF 29) (ACDelco #24234212)
| E (MYB) |
2007-2008 |
01 |
|
| 032 |
24205900 |
PLUG, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900)
| E (LH2, LY7) |
2007-2008 |
01 |
|
| 033 |
24225783 |
SEAL, A/TRNS CASE EXTN (ACDelco #24225783)
| E (MYB, MX0) |
2007-2008 |
01 |
|
| 034 |
24249873 |
EXTENSION, A/TRNS CASE (INCLS 36, 37) (ACDelco #24249873) |
E (MYB, MX0) |
2008-2008 |
01 |
| 036 |
24228876 |
SEAL, ВЫХОДНОЙ SHF (ЧАСТЬ OF 34) (5.556)
| E (MYB, MX7) |
2007-2008 |
01 |
|
| 036 |
24228876 |
SEAL, PROP SHF TRANS FLG FLUID
| E (LH2, MYB, MX0) |
2007-2008 |
01 |
|
| 037 |
24214158 |
BEARING, ВЫХОДНОЙ SHF (DRAWN CUP) (ЧАСТЬ OF 34) (4.131) (ACDelco #24214158) |
E (MYB, MX0) |
2007-2008 |
01 |
| 038 |
24230287 |
FLANGE, PROP SHF TRANS |
E (LH2, MYB, MX0) |
2007-2008 |
01 |
| 039 |
24231524 |
ГАЙКА, FRT PROP SHF FLG (M22X1.5) (FLANGE HEX) |
E (LH2, MYB, MX0) |
2007-2008 |
01 |
| 040 |
24229687 |
EXTENSION, A/TRNS CASE (MCHG) |
E (MYB, MX7) |
2007-2008 |
01 |
| 041 |
24237771 |
BEARING, ВЫХОДНОЙ SHF (ЧАСТЬ OF 7) |
E (LY7, MYB) |
2007-2008 |
01 |
| 041 |
24242995 |
BEARING, ВЫХОДНОЙ SHF (ЧАСТЬ OF 7)
| E (LH2, MYB) |
2007-2008 |
01 |
|
| K01 |
24236928 |
SEAL KIT, A/TRNS ELEC CONN PASG SLEV (INCLS 9, 10) |
E (MYB) |
2007-2008 |
01 |
| K02 |
24238913 |
SEAL KIT, A/TRNS SERV (INCLS 9, 10, 18-20) (CONTROL VLV SOL ASM) (ACDelco #24238913)
| E (MYB) |
2007-2008 |
01 |
|
