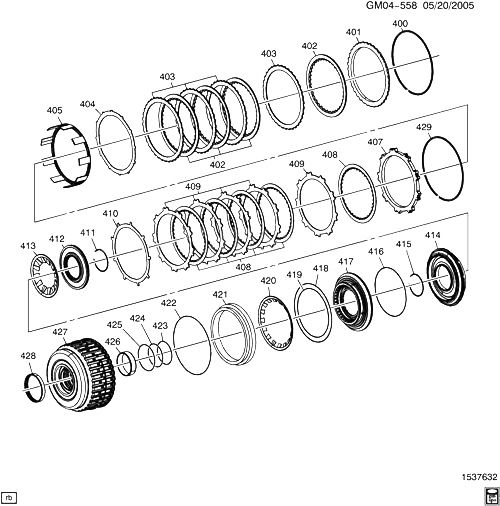

(GM04-558) - 2007-2009 E АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYB) (6L50) 1-2-3-4 3-5 REVERSE ДЕТАЛИ СЦЕПЛЕНИЯ CADILLAC - SRX 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
400 24240625 RING, 3-5 REV CLU BKG PLT RET (ЧАСТЬ OF 427) (LT GREEN) (2.25-2.35MM) (ACDelco #24240625) E (MYB) 2008-2009 01
400 24240626 RING, 3-5 REV CLU BKG PLT RET (ЧАСТЬ OF 427) (GRAY) (2.47-2.57MM) (ACDelco #24240626) E (MYB) 2008-2009 01
400 24240627 RING, 3-5 REV CLU BKG PLT RET (ЧАСТЬ OF 427) (YELLOW) (2.69-2.79MM) (ACDelco #24240627) E (MYB) 2008-2009 01
400 24240628 RING, 3-5 REV CLU BKG PLT RET (ЧАСТЬ OF 427) (ORANGE) (2.93-3.01MM) (ACDelco #24240628) E (MYB) 2008-2009 01
400 24240629 RING, 3-5 REV CLU BKG PLT RET (ЧАСТЬ OF 427) (LT BLUE) (3.13-3.23MM) (ACDelco #24240629) E (MYB) 2008-2009 01
400 24240630 RING, 3-5 REV CLU BKG PLT RET (ЧАСТЬ OF 427) (WHITE) (3.35-3.45MM) (ACDelco #24240630) E (MYB) 2008-2009 01
400 24240631 RING, 3-5 REV CLU BKG PLT RET (ЧАСТЬ OF 427) (YELLOW/PURPLE) (3.57-3.67MM) (ACDelco #24240631) E (MYB) 2008-2009 01
401 24225654 PLATE, 3-5 REV CLU BKG E (MYB) 2007-2009 01
402 24225569 PLATE, 3-5/REV CLU (PKG OF 4) (FIBER) (ACDelco #24225569) E (MYB) 2007-2008 01
403 24237663 PLATE, 3-5 REV CLU (PKG OF 4) (STEEL) E (MYB) 2007-2009 01
404 24225564 PLATE, 3-5 REV CLU (WAVED) E (MYB) 2007-2009 01
405 RING, 3-5-REV CLU APPLY 2007-2009
407 24233533 PLATE, 1-2-3-4 CLU BKG E (MYB) 2007-2009 01
408 24243588 PLATE, 1-2-3-4 CLU (ACDelco #24243588) E (MYB) 2007-2009 01
409 24232652 PLATE, 1-2-3-4 CLU (PKG OF 5) (STEEL) E (MYB) 2007-2009 01
410 24236434 PLATE, 1-2-3-4 CLU (WAVED) E (MYB) 2007-2009 01
411 RING, 1-2-3-4 CLU PSTN DAM RET (*KIT1, KIT2) 2007-2009
412 24225522 DAM, 1-2-3-4 CLU PSTN E (MYB) 2007-2009 01
413 24225559 ПРУЖИНА, 1-2-3-4 CLU E (MYB) 2007-2009 01
414 24241073 PISTON, 1-2-3-4 CLU E (MYB) 2008-2009 01
415 RING, 1-2-3-4 CLU PSTN HSG RTN (*KIT1, KIT2) 2007-2009
416 SEAL, 1-2-3-4 CLU PSTN (*KIT1, KIT3) 2007-2009
417 24238558 ШЛАНГИ, 1-2-3-4 CLU PSTN E (MYB) 2008-2009 01
418 SEAL, 3-5/REV CLU PSTN DAM (O RING) (*KIT3) 2007-2009
419 SEAL, 3-5-REV CLU PSTN INR (*KIT1, KIT3) 2007-2009
420 24236051 ПРУЖИНА, 3-5-REV CLU E (MYB) 2007-2009 01
421 24238560 PISTON, 3-5/REV CLU (INCLS 422) (4.164) E (MYB) 2008-2009 01
422 SEAL, 3-5-REV CLU PSTN OTR (ЧАСТЬ OF 421) (*KIT3) 2007-2009
423 SEAL, 1-2-3-4 CLU PSTN INR (*KIT1, KIT3) 2007-2009
424 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2007-2009
425 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2007-2009
426 BUSHING, 1-2-3-4 3-5/REV CLU HSG RR (ЧАСТЬ OF 427) 2007-2009
427 24237184 ШЛАНГИ, 1-2-3-4 3-5 REV CLU (INCLS 400, 426, 429) (ORDER T/W 24226393) EB (MYB) 2008-2009 01
428 24226393 BEARING, 1-2-3-4 3-5-REV CLU E (MYB) 2007-2009 01
429 24240626 RING, 1-2-3-4 CLU BKG PLT RET (ЧАСТЬ OF 427) (GRAY) (2.47-2.57MM) (ACDelco #24240626) E (MYB) 2008-2009 01
429 24240627 RING, 1-2-3-4 CLU BKG PLT RET (ЧАСТЬ OF 427) (YELLOW) (2.69-2.79MM) (ACDelco #24240627) E (MYB) 2008-2009 01
429 24240628 RING, 1-2-3-4 CLU BKG PLT RET (ЧАСТЬ OF 427) (ORANGE) (2.93-3.01MM) (ACDelco #24240628) E (MYB) 2008-2009 01
429 24240629 RING, 1-2-3-4 CLU BKG PLT RET (ЧАСТЬ OF 427) (LT BLUE) (3.13-3.23MM) (ACDelco #24240629) E (MYB) 2008-2009 01
429 24240630 RING, 1-2-3-4 CLU BKG PLT RET (ЧАСТЬ OF 427) (WHITE) (3.35-3.45MM) (ACDelco #24240630) E (MYB) 2008-2009 01
429 24240631 RING, 1-2-3-4 CLU BKG PLT RET (ЧАСТЬ OF 427) (YELLOW/PURPLE) (3.57-3.67MM) (ACDelco #24240631) E (MYB) 2008-2009 01
429 24240632 RING, 1-2-3-4 CLU BKG PLT RET (ЧАСТЬ OF 427) (LT BLUE/PURPLE) (3.79-3.89MM) (ACDelco #24240632) E (MYB) 2008-2009 01
K01 24243891 SEAL KIT, A/TRNS SERV (INCLS 411, 415, 416, 419, 423-425) (FULL TRANS) (ACDelco #24243891) E (MYB) 2007-2008 01
K02 24238920 RING KIT, RET (INCLS 411, 415) E (MYB) 2007-2009 01
K03 24238922 SEAL KIT, A/TRNS SERV (INCLS 416, 418, 419, 422-425) (СЦЕПЛЕНИЕES) (ACDelco #24238922) E (MYB) 2007-2009 01
