| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

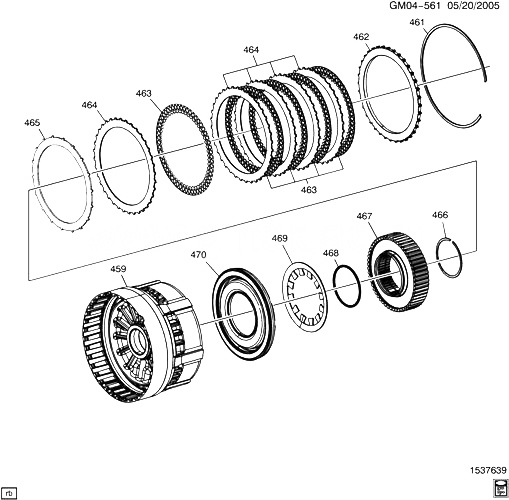

| 459 |
|
SUPPORT, CTR (СМ. ГРУППУ 04.000 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ДЕТАЛИ СЦЕПЛЕНИЯ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2007-2009 |
|
| 461 |
24225519 |
RING, LOW REV CLU BKG PLT RET (2.77MM +/- 0.05) (ACDelco #24225519) |
E (MYB) |
2008-2008 |
01 |
| 461 |
24225519 |
RING, LOW REV CLU BKG PLT RET (2.77MM +/- 0.05) (ACDelco #24225519) (TRANS BUILT ON 08-31-08 PRIOR) (FOR 2ND DES SEE 24231937/ 24231938/ 24231939/ 24247407/ 24247408/ 24247402) |
E (MYB) (1ST DES) |
2008-2008 |
01 |
| 461 |
24231938 |
RING, LOW REV CLU BKG PLT RET (2.63MM +/- 0.05) (MUST BE USED T/W 24247402) (ACDelco #24231938) (TRANS BUILT ON 9/1/08 FORWARD) (FOR 1ST DES SEE 24248368) |
E (MYB) (2ND DES) |
2008-2008 |
01 |
| 461 |
24231939 |
RING, LOW REV CLU BKG PLT RET (2.93MM +/- 0.05) (MUST BE USED T/W 24247402) (ACDelco #24231939) (TRANS BUILT ON 9/1/08 FORWARD) (FOR 1ST DES SEE 24248368) |
E (MYB) (2ND DES) |
2008-2008 |
01 |
| 461 |
24247407 |
RING, LOW REV CLU BKG PLT RET (2.03MM +/- 0.05) (MUST BE USED T/W 24247402) (ACDelco #24247407) (TRANS BUILT ON 9/1/08 FORWARD) (FOR 1ST DES SEE 24248368) |
E (MYB) (2ND DES) |
2008-2008 |
01 |
| 461 |
24247408 |
RING, LOW REV CLU BKG PLT RET (3.23MM +/- 0.05) (MUST BE USED T/W 24247402) (ACDelco #24247408) (TRANS BUILT ON 9/1/08 FORWARD) (FOR 1ST DES SEE 24248368) |
E (MYB) (2ND DES) |
2008-2008 |
01 |
| 461 |
24248368 |
PLATE KIT, LOW REV CLU BKG (FOR SERVICE USE (1) OF THE FOLLOWING RET. RINGS 24225515, 24225519, OR BACKING PLATE 24225656) (4.180) (ACDelco #24248368) (TRANS BUILT ON 08-31-08 PRIOR) (FOR 2ND DES SEE 24231937/ 24231938/ 24231939/ 242474 |
E (MYB) (1ST DES) |
2008-2008 |
01 |
| 462 |
24247402 |
PLATE, LOW REV CLU BKG (MUST BE USED T/W 24231937/38/38, AND 24247407/08) (ACDelco #24247402) (TRANS BUILT ON 9/1/08 FORWARD) (FOR 1ST DES SEE 24248368) |
E (MYB) (2ND DES) |
2008-2008 |
01 |
| 463 |
24236664 |
PLATE, LOW REV CLU (PKG OF 6) (FIBER) |
E (MYB) |
2007-2009 |
01 |
| 464 |
24232654 |
PLATE, LOW REV CLU (PKG OF 6) (STEEL) (ACDelco #24232654) |
E (MYB) |
2007-2009 |
01 |
| 465 |
24237971 |
PLATE, LOW REV CLU (WAVED) (ACDelco #24237971) |
E (MYB) |
2007-2009 |
01 |
| 466 |
24225517 |
RING, LOW REV CLU SPR RET |
E (LH2, MYB) |
2007-2009 |
01 |
| 467 |
24238921 |
SPRAG, LOW CLU (INCLS 468) |
E (MYB) |
2007-2009 |
01 |
| 468 |
|
SEAL, LOW CLU SPRAG (ЧАСТЬ OF 467) (*KIT1) |
|
2007-2009 |
|
| 469 |
24225562 |
ПРУЖИНА, LOW REV CLU |
E (MYB) |
2007-2009 |
01 |
| 470 |
24225525 |
PISTON, LOW REV CLU (ACDelco #24225525) |
E (MYB) |
2007-2009 |
01 |
| K01 |
24238922 |
SEAL KIT, A/TRNS SERV (INCLS 468) (СЦЕПЛЕНИЕES) (ACDelco #24238922) |
E (MYB) |
2007-2009 |
01 |
