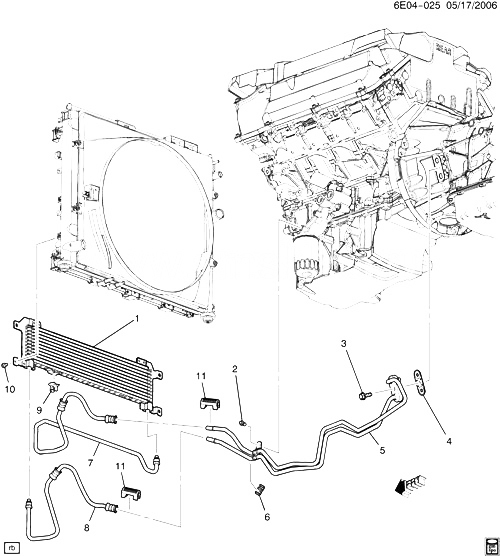

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19130449 |
COOLER, TRANS FLUID (INCLS 7-10) (ACDelco #19130449)
| E26 (LH2, V92) |
2008-2008 |
01 |
|
| 002 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (TRANS FLUID CLR PIPE BRKT)
|
2007-2009 |
01 |
|
| 003 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082)
|
2007-2009 |
01 |
|
| 005 |
15882260 |
PIPE, TRANS FLUID CLR INL OTLT (INCLS 4, 6)
| E26 (LH2) |
2007-2009 |
01 |
|
| 006 |
10405874 |
CLIP, TRANS FLUID CLR PIPE (ЧАСТЬ OF 5) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) |
E26 (LH2) |
2007-2008 |
01 |
| 007 |
|
PIPE, TRANS FLUID CLR LWR (ЧАСТЬ OF 1) |
|
2007-2009 |
|
| 008 |
|
PIPE, TRANS FLUID CLR UPR (ЧАСТЬ OF 1) |
|
2007-2009 |
|
| 009 |
|
CLIP, TRANS FLUID CLR PIPE (ЧАСТЬ OF 1) |
|
2007-2009 |
|
| 010 |
|
БОЛТ, TRANS FLUID CLR (ЧАСТЬ OF 1) |
|
2007-2009 |
|
| 011 |
15921020 |
CLIP, TRANS FLUID AUX CLR PIPE (CYLINDRICAL) (1 PIPE) |
E |
2007-2008 |
02 |
